INSIZE WELDING GAUGE (CODE – 6832)

Code:

▪Made of stainless steel
▪Stain chrome plated surface

Click to Expand

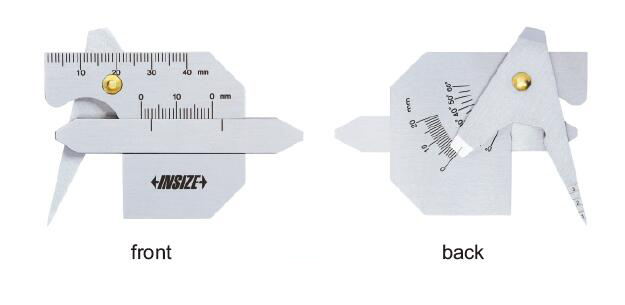

INSIZE WELDING GAUGE (CODE – 6832)

Product Overview

The INSIZE Welding Gauge (Model 4830) is a precision measuring instrument designed for inspecting welds, joints, and preparations. Constructed from durable stainless steel with a stain chrome-plated surface for enhanced readability and wear resistance, this tool provides reliable measurements for various welding parameters.

Key Features & Capabilities

Made of high-quality stainless steel
Stain chrome-plated surface for reduced glare and clear scale visibility
Multi-function capability for measuring leg length, leg height, crown height, throat size, angle, gap, and overall length

Technical Specifications

Measurement	Range	Graduation	Accuracy
Leg length	0 – 20mm	1mm	±0.3mm
Leg height	0 – 20mm	1mm	±0.3mm
Crown height	0 – 20mm	1mm	±0.3mm
Throat size	0 – 10mm	1mm	±0.3mm
Angle	0° – 60°	5°	±1°
Gap	1 – 3.5mm	0.5mm	±0.2mm
Length	0 – 40mm	1mm	±0.3mm
