BAKER DIGITAL MICROMETERS (WITHOUT DATA OUTPUT)

Code:

DIGITAL MICROMETERS Protection level IP65 against dust & water (coolant proof) Stainless steel spindle to avoid rust Carbide measuring faces mm / inch conversion Auto power off SR44/LR44 battery Ball attachment free of cost Absolute & incremental measuring mode Easy operations with 2 buttons Each micrometer is supplied with calibration certificate stating actual values

BUY NOW DOWNLOAD CATALOG

f in

Click to Expand

BAKER DIGITAL MICROMETERS (WITHOUT DATA OUTPUT)

Product Overview

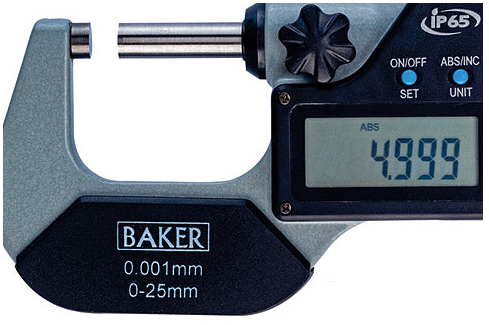

The Baker Digital Micrometer series provides precision outside diameter measurement with high reliability for industrial metrology applications. Designed with IP65-rated coolant-proof protection, these digital micrometers feature carbide-tipped measuring faces, a rust-resistant stainless steel spindle, and a clear LCD screen supporting absolute and incremental measuring modes with quick mm/inch conversion.

Key Features & Capabilities

Protection Level: IP65 rating against dust, water, and coolants.
Spindle Construction: Stainless steel spindle to resist rust and corrosion.
Measuring Faces: Carbide-tipped measuring faces for high wear resistance.
Measurement Modes: Supports both absolute and incremental measuring modes.
Unit Conversion: Instant mm/inch conversion capability.
Operation: Simple operation utilizing 2 buttons (SET and UNIT).
Power Management: Features auto power-off functionality; powered by an SR44/LR44 battery.
Included Accessories: Ball attachment supplied free of cost; each micrometer comes with a calibration certificate stating actual values in a sturdy storage box.

Technical Specifications

Measuring Range	Reading / Resolution	Model Type	A (mm)	B (mm)	C (mm)
0–25 mm / 0–1"	0.001 mm / 0.00005"	DMM25	6.5	31	25
25–50 mm / 1–2"	0.001 mm / 0.00005"	DMM50	8.5	56	32
50–75 mm / 2–3"	0.001 mm / 0.00005"	DMM75	8.5	81.5	44.5
75–100 mm / 3–4"	0.001 mm / 0.00005"	DMM100	8.5	106	57
100–125 mm / 4–5"	0.001 mm / 0.00005"	DMM125	17	133	70
125–150 mm / 5–6"	0.001 mm / 0.00005"	DMM150	17	158	82
150–175 mm / 6–7"	0.001 mm / 0.00005"	DMM175	19.5	183	95
175–200 mm / 7–8"	0.001 mm / 0.00005"	DMM200	19.5	209	107
