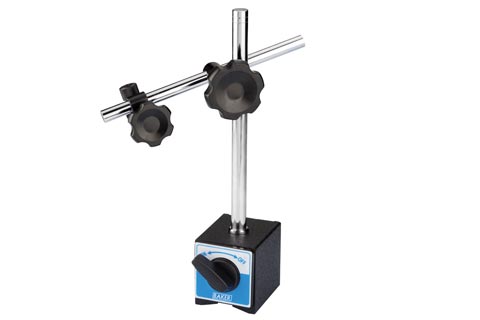

BAKER MAGNETIC STAND & WITH FINE ADJUSTMENT

▪MSF / MAGNETIC DIAL STAND, WITH FINE ADJUSTMENT
▪FEATURES:
▪Smooth On/Off switch
▪Firm Lock of stem
▪Light weight design
▪Fine adjustment of 15 mm

Click to Expand

BAKER MAGNETIC STAND & WITH FINE ADJUSTMENT

Product Overview

The Baker Magnetic Stand with Fine Adjustment (Model: MSF) is a precision dial holding system designed for secure and accurate positioning in industrial measurement applications. Featuring a smooth On/Off switch, firm stem locking mechanism, and a lightweight design, it incorporates a fine adjustment of 15 mm for exact calibration.

Key Features & Capabilities

Smooth On/Off switch for quick and easy base engagement/disengagement
Firm lock of the stem ensuring rigidity during measurement tasks
Lightweight design for enhanced portability and handling
Fine adjustment capability of 15 mm

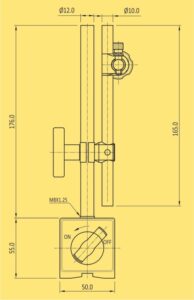

Technical Specifications

Parameter	Specification
Magnetic base with on/off switch	Yes
Clamp hole	3/8" & 5/32" and 8mm (when set a ring at the hole 3/8" & 5/32)
Magnetic force	600 N
Main stem	Ø12 x 176 mm
Branch stem	Ø10 x 165 mm
Tapped hole	M8 x 1.25 mm
Base (LxWxH)	58 mm x 50 mm x 55 mm
Weight	1.4 kg
