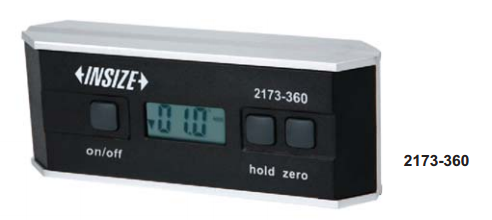

DIGITAL LEVEL AND PROTRACTOR  CODE – 2173

  • Aluminum frame
  • Magnetic bottom with V-groove for shafts
  • Zero setting can be made on any plain surfaces
  • Buttons: ON/OFF, ZERO, HOLD (keep the reading)
  • CR2032 battery
  • Automatic power off
2173 2173_01 2173_02



Code Range Resolution Accuracy
2173-360 0-360 (90°x4) 0.1° (= 1.745 mm/m) 0° & 90°: ±0.1°; others: ° and ±0.2°

Check the PDF



DIGITAL LEVEL AND PROTRACTOR CODE – 2179

  • IP54 dust/waterproof
  • Aluminum frame
  • Magnetic bottom with V-groove for shafts
  • The sea level is permanently set inside the chip, zero setting is not needed when batteries are replaced
  • Buttons: ON/OFF, absolute and incremental measurement, keep the reading, buzzer alarm, unit (mm/m, %, in/ft), backlight
  • Two AAA batteries
  • Automatic power off
2179 2179_01 2179_02



Code Range Resolution Accuracy
2179-360 0-360 90°x4) 0.05°(=0.873mm/m) 0° & 90°: ±0.1°; others: ° and ±0.2°

Check the PDF



DIGITAL LEVEL AND PROTRACTOR CODE – 2178

  • The display panel can be set at a desired angle for easy reading
  • Magnetic bottom with V-groove for shafts
  • The sea level is permanently set inside the chip, zero setting is not needed when batteries are replaced
  • Buttons: ON/ZERO, HOLD (keep the reading)
  • Two AAA batteries
  • Automatic power off
2178 2178_01 2178_02 2178_03



Code Range Resolution Accuracy
2178-1 0-180° 0.1° (= 1.745 mm/m) at 0° & 90°: ±0.1°; others: °and ±0.2°

Check the PDF



DIGITAL LEVEL AND PROTRACTOR CODE – 2170

  • Aluminum frame
  • Magnetic bottom
  • The display flips over when the bottom faces up
  • The backlight is on automatically when in use, and automatically off in 15 minutes after use
  • The sea level is permanently set inside the chip, zero setting is not needed when battery is replaced
  • Buttons: ON/OFF, ZERO, absolute and incremental measurement
  • One AAA battery
  • Automatic power off in 5 minutes
2170 2170_01 2170_02



Code Range Resolution Accuracy
2170-1 4×90° 0.1°(=1.745mm/m at 0° & 90°: ±0.1°; others: °and ±0.2°

Check the PDF
