INSIZE LINEAR SCALE (CODE – RS422 SIGNAL)

Name: INSIZE LINEAR SCALE (CODE – RS422 SIGNAL)
Brand: INSIZE
SKU: Series ISL-B1

Code:

Connected to digital display box or PLC

DOWNLOAD CATALOG

f in

Click to Expand

INSIZE LINEAR SCALE (RS422 SIGNAL)

Product Overview

The Insize Linear Scale (RS422 Signal) is engineered for precise industrial measurement and positioning applications. Designed to connect seamlessly to digital display boxes or programmable logic controllers (PLCs), this linear scale provides reliable, high-resolution feedback with IP54 waterproof protection. Available in two distinct series (ISL-C1 with $1\mu\text{m}$ resolution and ISL-C5 with $5\mu\text{m}$ resolution) covering effective lengths from $50\text{mm}$ to $3000\text{mm}$.

Key Features & Capabilities

Signal Output: RS422 standard output for stable data transmission to digital display boxes or PLCs.
Protection Rating: IP54 waterproof construction for reliable performance in industrial environments.
Series Options:
Series ISL-C1: $1\mu\text{m}$ resolution
Series ISL-C5: $5\mu\text{m}$ resolution
Scale Specifications: Features a $20\mu\text{m}$ scale grating pitch and $50\text{mm}$ scale reference point pitch.
Mounting & Accessories: Includes 'L' shape supports, anti-dust covers, plain bases (for $L \ge 1500\text{mm}$), and comprehensive mounting hardware packages.

Technical Specifications

Technical Parameter	Specification
Resolution	ISL-C1: $1\mu\text{m}$<br>ISL-C5: $5\mu\text{m}$
Thickness	$29\text{mm}$
Max. Response Speed	$60\text{m/min}$
Scale Grating Pitch	$20\mu\text{m}$
Scale Reference Point Pitch	$50\text{mm}$
Accuracy	$\pm(5+5L/1000)\mu\text{m}$, ($L$ is the effective length in mm)
Cable Length	$3.5\text{m}$ (L: $50–950\text{mm}$), $5\text{m}$ (L: $1000–1900\text{mm}$), $10\text{m}$ (L: $2000–3000\text{mm}$)
Output Signal	RS422
Socket	9 PD
Power Supply	$5 \pm 0.25\text{V}$

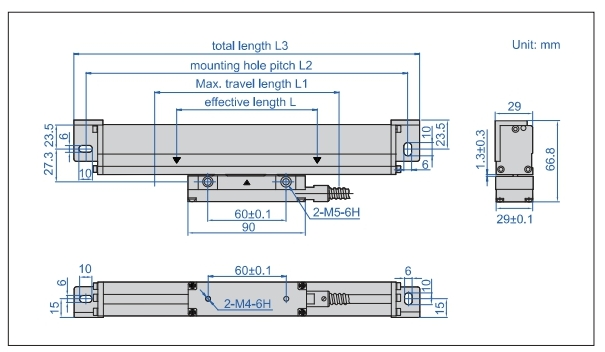

Dimension Formulas (Series ISL-C1 & ISL-C5)

L1 (Max. travel length): $L + 30$ ($L \le 900$), $L + 50$ ($L > 900$)
L2 (Mounting hole pitch): $L + 136$ ($L \le 900$), $L + 156$ ($L > 900$)
L3 (Total length): $L + 154$ ($L \le 900$), $L + 174$ ($L > 900$)

Available Effective Lengths & Codes

Effective Length (L)	Series ISL-C1 Code	Series ISL-C5 Code
$50\text{mm}$	ISL-C1-50	ISL-C5-50
$100\text{mm}$	ISL-C1-100	ISL-C5-100
$150\text{mm}$	ISL-C1-150	ISL-C5-150
$200\text{mm}$	ISL-C1-200	ISL-C5-200
$250\text{mm}$	ISL-C1-250	ISL-C5-250
$300\text{mm}$	ISL-C1-300	ISL-C5-300
$350\text{mm}$	ISL-C1-350	ISL-C5-350
$400\text{mm}$	ISL-C1-400	ISL-C5-400
$450\text{mm}$	ISL-C1-450	ISL-C5-450
$500\text{mm}$	ISL-C1-500	ISL-C5-500
$550\text{mm}$	ISL-C1-550	ISL-C5-550
$600\text{mm}$	ISL-C1-600	ISL-C5-600
$650\text{mm}$	ISL-C1-650	ISL-C5-650
$700\text{mm}$	ISL-C1-700	ISL-C5-700
$750\text{mm}$	ISL-C1-750	ISL-C5-750
$800\text{mm}$	ISL-C1-800	ISL-C5-800
$850\text{mm}$	ISL-C1-850	ISL-C5-850
$900\text{mm}$	ISL-C1-900	ISL-C5-900
$950\text{mm}$	ISL-C1-950	ISL-C5-950
$1000\text{mm}$	ISL-C1-1000	ISL-C5-1000
$1100\text{mm}$	ISL-C1-1100	ISL-C5-1100
$1200\text{mm}$	ISL-C1-1200	ISL-C5-1200
$1300\text{mm}$	ISL-C1-1300	ISL-C5-1300
$1400\text{mm}$	ISL-C1-1400	ISL-C5-1400
$1500\text{mm}$	ISL-C1-1500	ISL-C5-1500
$1600\text{mm}$	ISL-C1-1600	ISL-C5-1600
$1700\text{mm}$	ISL-C1-1700	ISL-C5-1700
$1800\text{mm}$	ISL-C1-1800	ISL-C5-1800
$1900\text{mm}$	ISL-C1-1900	ISL-C5-1900
$2000\text{mm}$	ISL-C1-2000	ISL-C5-2000
$2100\text{mm}$	ISL-C1-2100	ISL-C5-2100
$2200\text{mm}$	ISL-C1-2200	ISL-C5-2200
$2300\text{mm}$	ISL-C1-2300	ISL-C5-2300
$2400\text{mm}$	ISL-C1-2400	ISL-C5-2400
$2500\text{mm}$	ISL-C1-2500	ISL-C5-2500
$2600\text{mm}$	ISL-C1-2600	ISL-C5-2600
$2700\text{mm}$	ISL-C1-2700	ISL-C5-2700
$2800\text{mm}$	ISL-C1-2800	ISL-C5-2800
$2900\text{mm}$	ISL-C1-2900	ISL-C5-2900
$3000\text{mm}$	ISL-C1-3000	ISL-C5-3000
