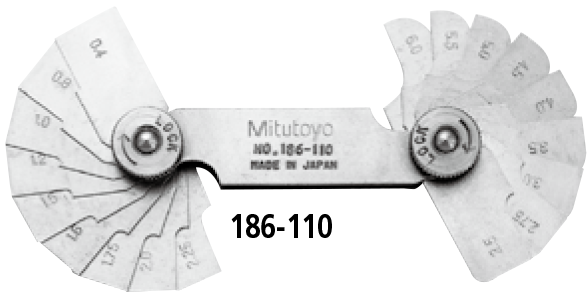

• Radius size is stamped on each gage leaf.
  • Each leaf comprises an internal and an external radius gage of the same size.
  • With locking clamp.

SPECIFICATIONS
Metric

Order No. Range Composition of leaves Remarks
186-110 0.4 – 6mm 18 leaves: 0.4, 0.8, 1, 1.2, 1.5, 1.6mm, 1.75 – 3mm by 0.25mm, 3.5 – 6mm by 0.5mm 90° arc
186-902 0.5 – 13mm 26 leaves: 0.5 – 13mm by 0.5mm

90° arc,

separate part type

186-105 1 – 7mm 34 leaves: 1 – 3mm by 0.25mm 3.5 – 7mm by 0.5mm 180° arc
186-106 7.5 – 15mm 32 leaves: 7.5 – 15mm by 0.5mm 180° arc
186-107 15.5 – 25mm 30 leaves: 15.5 – 20mm by 0.5mm, 21 – 25mm by 1mm 180° arc

Inch

Order No. Range Composition of leaves Remarks
186-103 1/32″ – 17/64″ 16 leaves: 1/32″ – 17/64″ by 64ths 90° arc
186-101 1/32″ – 1/4″ 15 leaves: 1/32″ – 1/4″ by 64ths 180° arc
186-102 17/64″ – 1/2″ 16 leaves: 17/64″ – 1/2″ by 64ths 180° arc
186-104 9/32″ – 33/64″ 16 leaves: 9/32″ – 33/64″ by 64ths 90° arc
186-901* 1/64″ – 1/2″ 25 leaves: 1/64″ – 17/64″ by 64ths, 9/32″ – 1/2″ by 32nds

* Each gage has five measuring locations.
