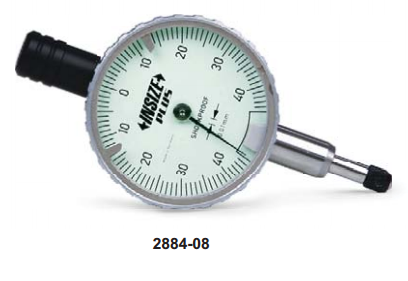

ONE REVOLUTION COMPACT DIAL INDICATOR CODE – 2884

Name: ONE REVOLUTION COMPACT DIAL INDICATOR CODE – 2884
Brand: INSIZE
SKU: 2884

Code:

Eliminate the possibility of reading errors due to miscounting Shockproof Free stroke: 4mm With limit pointers Optional accessory: backs (page 132), contact points (page 128~131) Code Range Graduation Accuracy Hysteresis Range/rev Dial reading Remark 2884-08* 0.8mm 0.01mm 9µm 3µm 1mm 40-0-40 lug back 2884-08F* 0.8mm 0.01mm 9µm 3µm 1mm 40-0-40 flat back *Supplied with manufacturer

DOWNLOAD CATALOG

f in

Click to Expand

ONE REVOLUTION COMPACT DIAL INDICATOR CODE – 2884

Product Overview

The INSIZE One Revolution Compact Dial Indicator (Series 2884) is a precision measuring instrument designed to eliminate reading errors caused by miscounting. Engineered for accuracy and reliability in industrial inspection environments, this shockproof indicator features a compact design with limit pointers and is supplied with a manufacturer calibration certificate.

Key Features & Capabilities

Error Prevention: Eliminates the possibility of reading errors due to miscounting.
Shockproof Construction: Built to withstand impact during routine shop-floor use.
Limit Pointers: Includes integrated limit pointers for tolerance marking.
Free Stroke: 4mm
Accessory Compatibility: Compatible with optional backs and contact points.
