MITUTOYO-SERIES 2-SPECIAL DIAL INDICATORS

Name: MITUTOYO-SERIES 2-SPECIAL DIAL INDICATORS
Brand: MITUTOYO
SKU: 2046S-80

Code:

Peak hold type Special dial Indicator gauge A mechanism holds the pointer and the spindle at the position of maximum depression and hence displays the maximum value. * Clearance of peak hold: push the nut in the direction of the arrow indicated in the dimensional drawing below. DIMENSIONS SPECIFICATIONS Metric Order No. Graduation Range (range/rev)

f in

Click to Expand

MITUTOYO-SERIES 2-SPECIAL DIAL INDICATORS

Product Overview

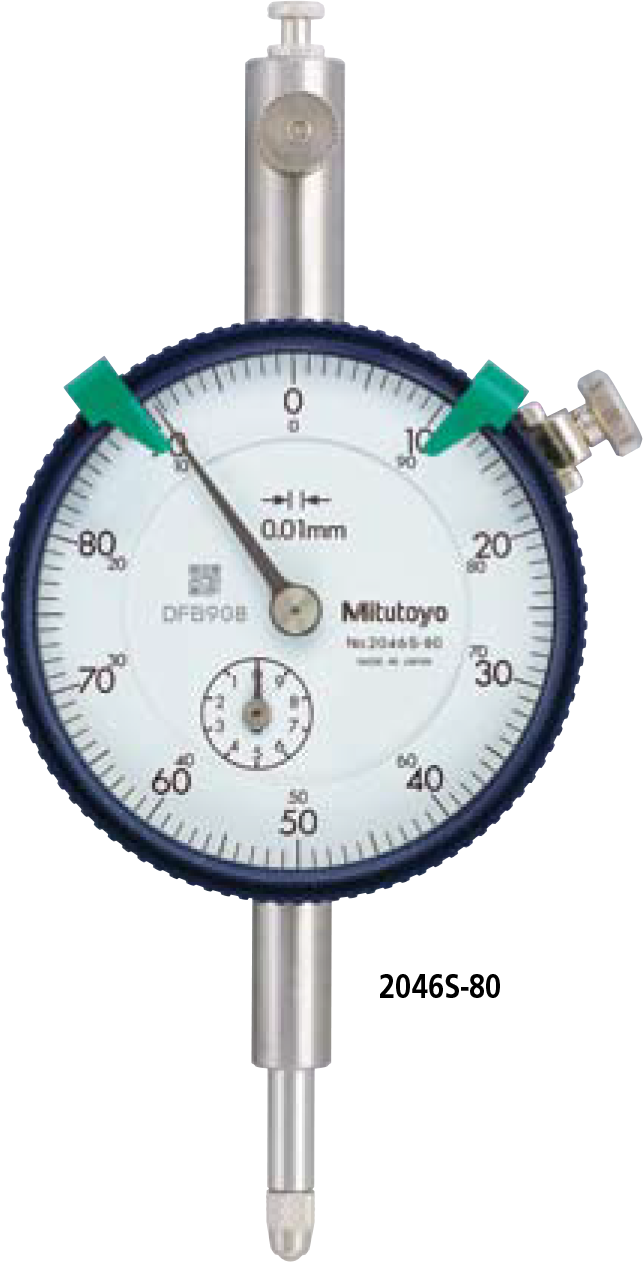

The Mitutoyo-Series 2-Special Dial Indicator (Model: 2046S-80) is a metric peak-hold type special dial indicator gauge designed for precise measurement applications. It incorporates a specialized internal mechanism that holds both the pointer and the spindle at the position of maximum depression, allowing the instrument to accurately display and retain the maximum measured value.

Key Features & Capabilities

Peak Hold Mechanism: Automatically holds the pointer and spindle at the point of maximum depression to capture and display peak values.
Peak Hold Clearance: The peak hold can be cleared by pushing the nut in the direction of the arrow indicated in the dimensional drawing.
Back Configuration: Equipped with a lug back (Order No. 2046S-80).
Inspection Standard: Completed products inspection is performed in the vertical position with the contact point downward to guarantee stated accuracy.

Technical Specifications

Technical Parameter	Specification
Order No. (w/ lug)	2046S-80
Flat-back Order No.	2046SB-80
Graduation	0.01mm
Range (range/rev)	10mm (1mm)
Overall Accuracy	15µm
Retrace Accuracy	—
1/10 Rev Accuracy	5µm
1 Rev Accuracy	10µm
Repeatability	—
Dial Reading	±0-100
Measuring Force	5.0N or less
