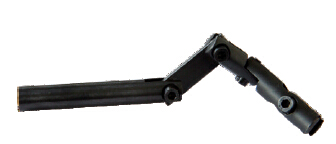

INSIZE DIAL TEST INDICATOR HOLDER (CODE – 6296-1)

Name: INSIZE DIAL TEST INDICATOR HOLDER (CODE – 6296-1)
Brand: INSIZE
SKU: 6296-1

Code:

Supplied with fixing spanner

DOWNLOAD CATALOG

f in

Click to Expand

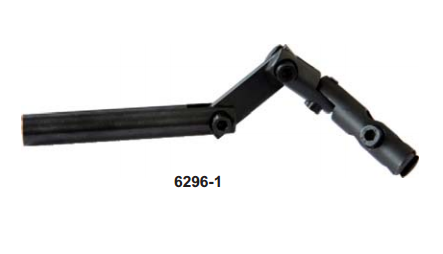

INSIZE DIAL TEST INDICATOR HOLDER (CODE – 6296-1)

Product Overview

The INSIZE Dial Test Indicator Holder (Code 6296-1) is a precision measuring instrument accessory designed for mounting dial test indicators securely. Supplied with a fixing spanner, this multi-jointed holder allows for flexible positioning during inspection and measurement tasks.

Key Features & Capabilities

Multi-jointed articulation for flexible indicator positioning
Dovetail groove and dual stem holes for versatile indicator mounting compatibility
Supplied with fixing spanner

Technical Specifications

Parameter	Specification
Code / Model	6296-1
Stem Hole Size (1)	Ø4 mm
Stem Hole Size (2)	Ø6 mm
Mounting Type	Dovetail groove
Main Stem Diameter	Ø8 mm
Total Length	136 mm
Upper Section Length	62 mm
Middle Section Length	26 mm
Lower Section Length	28 mm
Unit of Measurement	Metric (mm)
