MARCATOR 1086 R / 1086 WR – DIGITAL INDICATOR

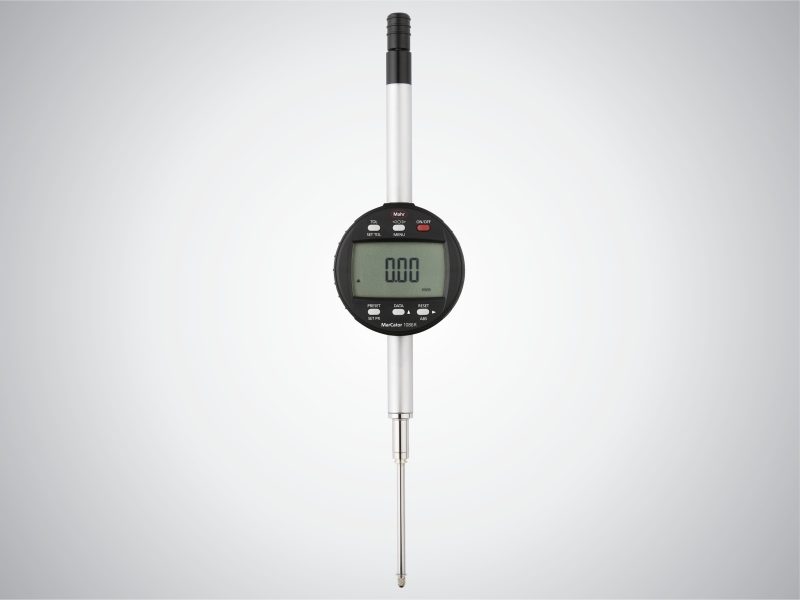

MARCATOR 1086 ZR DIGITAL INDICATOR High contrast LCD Operating and display unit (bezel) can be rotated through 280° Lifter protection cap on the measuring spindle Mounting shank and measuring spindle are both made of hardened stainless steel Immediate measurements due to the Reference System           Technical Data Order no. Product type

MARCATOR 1086 ZR DIGITAL INDICATOR

  • High contrast LCD
  • Operating and display unit (bezel) can be rotated through 280°
  • Lifter protection cap on the measuring spindle
  • Mounting shank and measuring spindle are both made of hardened stainless steel
  • Immediate measurements due to the Reference System
 Indicator  Indicator  Indicator

Technical Data

Order no. Product type Measuring span in mm Measuring span (inches) Resolution Resolution inches Error limit (mm) Repeatability mm Standard Measuring force (N) IP protection category Height of digits
4337620
1086 R
12.5 mm
.5″
0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm
.00002″ / .00005″ / .0001″ / .0002″ / .0005″
0.004 mm
0.001 mm
Factory standard
0.65 – 0.9
IP 42
11 mm
4337621
1086 R
25 mm
1″
0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm
.00002″ / .00005″ / .0001″ / .0002″ / .0005″
0.004 mm
0.001 mm
Factory standard
0.65 – 1.15
IP 42
11 mm
4337622
1086 R
50 mm
2″
0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm
.00002″ / .00005″ / .0001″ / .0002″ / .0005″
0.007 mm
0.001 mm
Factory standard
1.25 – 2.7
IP 42
3.5 mm
4337623
1086 R
100 mm
4″
0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm
.00002″ / .00005″ / .0001″ / .0002″ / .0005″
0.008 mm
0.001 mm
Factory standard
1.8 – 3.5
IP 42
11 mm
4337650
1086 ZR
12.5 mm
.5″
0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm
.00002″ / .00005″ / .0001″ / .0002″ / .0005″
0.004 mm
0.001 mm
Factory standard
0.65 – 0.65
IP 42
1.15 mm
4337651
1086 ZR
25 mm
1″
0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm
.00002″ / .00005″ / .0001″ / .0002″ / .0005″
0.004 mm
0.001 mm
Factory standard
0.9 – 1.15
IP 42
11 mm

Functions

  • ON/OFF
  • RESET (set display to zero)
  • mm/inch
  • Reversal of counting direction
  • PRESET (for entering a numerical value)
  • TOL (enter tolerance limit values)
  • <0> (tolerance GO / NO GO display mode)
  • ABS (display can be set to zero without losing reference to preset)
  • DATA (data transmission via connection cable)
  • Factor (adjustable)
  • LOCK (individual button lock)

MARCATOR 1086 R DIGITAL INDICATOR

  • High contrast LCD
  • Operating and display unit (bezel) can be rotated through 280°
  • Lifter protection cap on the measuring spindle
  • Mounting shank and measuring spindle are both made of hardened stainless steel
  • Immediate measurements due to the Reference System
 Indicator
 Indicator  Indicator  Indicator  Indicator

Technical data

Order no. Product type Measuring span in mm Measuring span (inches) Resolution Resolution inches Error limit (mm) Repeatability mm Standard Measuring force (N) IP protection category Height of digits
4337130
1086 R
12.5 mm
.5″
0.01 mm
.0005″
0.02 mm
0.01 mm
Factory standard
0.65 – 0.9
IP 42
11 mm
4337131
1086 R
25 mm
1″
0.01 mm
.0005″
0.02 mm
0.01 mm
Factory standard
0.65 – 1.15
IP 42
11 mm
4337132
1086 R
50 mm
2″
0.01 mm
.0005″
0.02 mm
0.01 mm
Factory standard
1.25 – 2.7
IP 42
11 mm
4337133
1086 R
100 mm
4″
0.01 mm
.0005″
0.02 mm
0.01 mm
Factory standard
1.6 – 3.5
IP 42
11 mm

Functions

  • ON/OFF
  • RESET (set display to zero)
  • mm/inch
  • Reversal of counting direction
  • PRESET (for entering a numerical value)
  • TOL (enter tolerance limit values)
  • <0> (tolerance GO / NO GO display mode)
  • ABS (display can be set to zero without losing reference to preset)
  • DATA (data transmission via connection cable)
  • Factor (adjustable)
  • LOCK (individual button lock)

MARCATOR 1086 WR – DIGITAL INDICATOR, IP 54

MARCATOR 1086 WR DIGITAL INDICATOR
  • High contrast LCD
  • Operating and display unit (bezel) can be rotated through 280°
  • Protection cap on the end of measuring spindle
  • Mounting shank and measuring spindle are both made of hardened stainless steel
  • Immediate measurements due to the Reference System
 Indicator
 Indicator  Indicator  Indicator  Indicator  Indicator

Technical data

Order no. Product type Measuring span in mm Measuring span (inches) Resolution Resolution inches Error limit (mm) Repeatability mm Standard Measuring force (N) IP protection category Height of digits
4337640
1086 WR
12.5 mm
.5″
0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm
.00002″ / .00005″ / .0001″ / .0002″ / .0005″
0.004 mm
0.001 mm
Factory standard
0.65 – 1.4
IP 54
11 mm
4337641
1086 WR
25 mm
1″
0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm
.00002″ / .00005″ / .0001″ / .0002″ / .0005″
0.004 mm
0.001 mm
Factory standard
1 – 2.25
IP 54
11 mm

Functions

  • ON/OFF
  • RESET (set display to zero)
  • mm/inch
  • Reversal of counting direction
  • PRESET (for entering a numerical value)
  • TOL (enter tolerance limit values)
  • <0> (tolerance GO / NO GO display mode)
  • ABS (display can be set to zero without losing reference to preset)
  • DATA (data transmission via connection cable)
  • Factor (adjustable)
  • LOCK (individual button lock)
MARCATOR 1086 WR DIGITAL INDICATOR
  • High contrast LCD
  • Operating and display unit (bezel) can be rotated through 280°
  • Protection cap on the end of measuring spindle
  • Mounting shank and measuring spindle are both made of hardened stainless steel
  • Immediate measurements due to the Reference System
 Indicator
 Indicator  Indicator  Indicator  Indicator  Indicator

Technical data

Order no. Product type Measuring span in mm Measuring span (inches) Resolution Resolution inches Error limit (mm) Repeatability mm Standard Measuring force (N) IP protection category Height of digits
4337145
1086 WR
12.5 mm
.5″
0.01 mm
.0005″
0.02 mm
0.01 mm
Factory standard
0.65 – 1.4
IP 54
11 mm
4337146
1086 WR
25 mm
1″
0.01 mm
.0005″
0.02 mm
0.01 mm
Factory standard
1 – 2.25
IP 54
11 mm

Functions

  • ON/OFF
  • RESET (set display to zero)
  • mm/inch
  • Reversal of counting direction
  • PRESET (for entering a numerical value)
  • TOL (enter tolerance limit values)
  • <0> (tolerance GO / NO GO display mode)
  • ABS (display can be set to zero without losing reference to preset)
  • DATA (data transmission via connection cable)
  • Factor (adjustable)
  • LOCK (individual button lock)
