Mitutoyo-Optional Accessories for Dial Test Indicators-Styli, Stems and Holders

Styli (for Metric Models Only*) * Except for universal type dial test indicator (513-304G). Stylus length affects the scale factor of an indicator. The styli provided as standard give a scale factor of unity. ø0.5mm ball-point 190547 (L=14.7mm) 190549 (L=20.9mm) 190654 (L=22.3mm) 190656 (L=44.5mm) ø0.7mm ball-point 190548 (L=14.7mm) 190550 (L=20.9mm) 190653 (L=22.3mm) 190655 (L=44.5mm) ø1mm […]

AUTHOR RATE

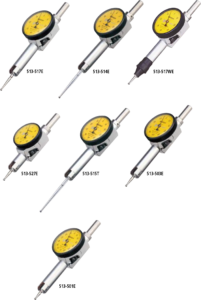

Mitutoyo-SERIES 513-Pocket Type Dial Test Indicator

Jeweled bearings assure higher sensitivity and accuracy. Indicator can be mounted by clamping the stem or the body (except for 513-517WE and 513-517WT). Reversible measuring direction (Clutch type). Two holding bars are supplied. (Full sets only.) Fully adjustable bezel/dial face. Stylus is adjustable within 220°. Bezel is sealed with on O-ring to keep out water […]

AUTHOR RATE
Mitutoyo-SERIES 513 – Universal Type-Dial Test Indicator

Universal application to all directions. (Not only the direction of the measuring point, but also the direction of measurement itself can be adjusted 360 degrees without moving the indicator.) SPECIFICATIONS DIMENSIONS Set Configuration: Metric Set Configuration: Inch Optional Accessories ––––––: Swivel clamps (See page F-63.) ––––––: Holding bars (See page F-63.) ––––––: Stems (See page F-63.) 102824: Stylus, […]

AUTHOR RATE
Mitutoyo-SERIES 513 – Horizontal (20° Tilted Face), Vertical, and Parallel Types-Dial Test Indicator

Specially designed for easy viewing of dial. The dial face obliquely faces upward, allowing users to read the graduations from the user’s side. It is convenient when probing on the side of a large workpiece and the workbench is high. Using the universal holder allows easy hole centering. The dial face always faces upward when […]

AUTHOR RATE
Mitutoyo-SERIES 513 – Lever-Type Dial Indicators-Dial Test Indicators

Designed to probe surfaces that cannot be reached with a normal dial gauge. Useful both for alignment and for measurement purposes. Mitutoyo’s proprietary new design permits smooth pointer operation. Strong frame provides excellent rigidity and durability. Non-magnetic pointer and contact point permit reliable operation even in magnetic environments. Clear and concise wide dial face allows […]

AUTHOR RATE
Mitutoyo-SERIES 1-Back Plunger Type Dial Indicator

Back plunger type dial gauges are suitable for mounting onto leveling machine tool tables or inspection jigs, and for use in situations where standard dial gauges are difficult to read. Model 1960T and 1961T, which uses Mitutoyo’s proprietary shock-proofing mechanism, has excellent durability and shock resistance. DIMENSIONS Order No. A B C E F G […]

AUTHOR RATE
Mitutoyo-SERIES 2-Back Plunger Type Dial Indicator

Back plunger type dial gauges are suitable for mounting onto leveling machine tool tables or inspection jigs, and for use in small spaces where the graduations of standard dial gauges are difficult to see. Models 2960T, 2961T, 2990T-10 and 2991T-10, which use Mitutoyo’s proprietary shock-proofing mechanism, have excellent durability and shock resistance. Model 2990T-10 provides […]

AUTHOR RATE
Mitutoyo-SERIES 2 – Special Dial Indicators

Peak hold type dial gauge A mechanism holds the pointer and the spindle at the position of maximum depression and hence displays the maximum value. * Clearance of peak hold: push the nut in the direction of the arrow indicated in the dimensional drawing below. DIMENSIONS SPECIFICATIONS Metric Order No. Graduation Range (range/rev) Accuracy Repeat- […]

AUTHOR RATE
Mitutoyo-SERIES 2 – Special Dial Indicators-Dial Indicators

Adjustable hand dial gauge The hand position can be adjusted independently of the position of the spindle by rotating the top knob. DIMENSIONS * Contact points, other than dedicated types, cannot be installed. * The shoulder on a contact point (standard accessory) acts as a stop to prevent spindle overrun that may otherwise damage the […]

AUTHOR RATE
Mitutoyo-SERIES 3, 4 – Long StrokeType, Large Diameter-Dial Indicators

Dial indicators with a large-diameter dial face for easy reading. Models with longer measuring ranges are also available. All types are supplied with limit markers and a bezel clamp as standard. Both the stem and the spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use. The bezel clamp and lifting lever (optional)*1 […]

AUTHOR RATE
Mitutoyo-SERIES 1 – Compact One Revolution Type for Error-free Reading-Dial Indicators

Mitutoyo’s unique shock-proof mechanism is incorporated, providing improved resistance to shock due to sudden spindle retraction caused by impact. This series has been developed to eliminate the possibility of reading errors due to miscounting multiple revolutions. The dead zone in red indicates “accuracy not guaranteed” . One revolution type Back plunger dial gages are also […]

AUTHOR RATE
Mitutoyo-SERIES 1 – Compact Type, Small Diameter-Dial Indicators

Compact dial indicators with bezel diameters of ø40mm for restricted-space applications in gaging jigs. SPECIFICATIONS Metric * Completed products inspection is performed in the vertical position (contact point downward) and the stated accuracy is guaranteed. Inch * Completed products inspection is performed in the vertical position (contact point downward) and the stated accuracy is guaranteed. […]

AUTHOR RATE
Mitutoyo-SERIES 1 – Compact Type, Small Diameter-Dial Indicators

Compact dial indicators with bezel diameters of ø31 or ø36mm for restricted-space applications in gaging jigs. DIMENSIONS Order No. A B C D E F G H I 1911T-10 15.5 42 31 12.9 19.2 15 11.5 30 5.9 1913T-10 15.5 39.5 31 12.9 19.2 15 9 30 5.9 1003T 18 40.3 36 13 15 9.5 […]

AUTHOR RATE
Mitutoyo-SERIES 2 – Long Stroke Type-Dial Indicators

Long stroke dial indicators with a ø57mm outer frame. All the models are equipped with limit markers and a bezel clamp as standard. An O-ring is employed to ensure air-tightness between the outer frame and the crystal case to prevent water or oil penetration. Both the stem and the spindle are made of high-strength quench-hardened […]

AUTHOR RATE
Mitutoyo-SERIES 2 – Standard One Revolution Type for Error-free Reading, Lightweight Type-Dial Indicators

Excellent water- and drip-proof characteristics (IP43). Smooth movement thanks to the improved design of bush and stem. Application of a hard coating on the surface of the crystal makes the gage scratch- and oil-resistant. Lightweight type (70g). DIMENSIONS * When installing an optional back (refer to page F-55 for details) please separately prepare 4 fixing […]

AUTHOR RATE
Mitutoyo-SERIES 2 – Standard One Revolution Type for Error-free Reading, Waterproof Type-Dial Indicators

Mitutoyo’s unique shock-proof mechanism is incorporated, providing improved resistance to shock due to sudden spindle retraction caused by impact. This series has been developed to eliminate the possibility of reading errors due to miscounting multiple revolutions. The dead zone in red indicates “accuracy not guaranteed”. One revolution type Back plunger dial gages are also available. […]

AUTHOR RATE
Mitutoyo-SERIES 2 – Standard One Revolution Type for Error-free Reading-Dial Indicators

Mitutoyo’s unique shock-proof mechanism is incorporated, providing improved resistance to shock due to sudden spindle retraction caused by impact. This series has been developed to eliminate the possibility of reading errors due to miscounting multiple revolutions. The dead zone in red indicates “accuracy not guaranteed”. DIMENSIONS Note 1: Dimensions of the inch (ANSI/AGD Type) dial […]

AUTHOR RATE
Mitutoyo-SERIES 2 – Waterproof Type, 0.01mm & 0.001mm Graduation-Dial Indicators

Waterproof type dial gages having a bezel with an outside diameter of 57mm. All types come with limit markers and a bezel clamp as standard. The bezel clamp can be attached to either the right or left side. These parts can be easily installed and removed without tools. The stem and spindle are made of […]

AUTHOR RATE
Mitutoyo-SERIES 2 – Standard Type, 0.001mm & 0.005mm Graduation-Dial Indicators

Standard 0.001mm and 0.005mm graduation dial indicators having a bezel with an outside diameter of ø57mm. All types come with limit markers and a bezel clamp. The outer clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools. Secure adhesion […]

AUTHOR RATE
Mitutoyo-SERIES 2 – Standard Type, 0.01mm Graduation-Dial Indicators

Standard 0.01mm graduation dial gages having a bezel with an outside diameter of 57mm. All types come with limit markers and a bezel clamp as standard. The bezel clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools. Secure adhesion […]

AUTHOR RATE

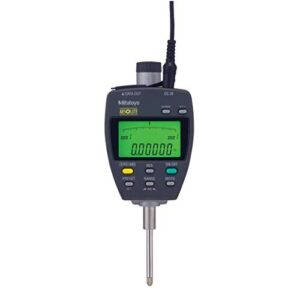

Mitutoyo-SERIES 543 – with Back-light LCD Screen-ABSOLUTE Digimatic Indicator ID-F

GO/±NG judgment function: If a judgment result shows an out of tolerance condition, the display backlighting changes from green to red. An analog bar indicator has been integrated to make upper/lower limit and turnover point reading more comfortable. With Mitutoyo’s ABSOLUTE Linear Encoder technology, once the measurement reference point has been set it will not […]

AUTHOR RATE
Mitutoyo-SERIES 543 – High Accuracy and High Functionality Type-Digimatic Indicator ID-H

This new-generation digital indicator offers the excellent accuracy and functionality expected from the top class of indicator. Take advantage of its high accuracy backed up by 0.5μm/.00002” resolution, remote control functionality via a handheld controller (or an RS-232C interface) and easy runout measurements with the well-established analog bar display. Functionality meets the needs of diverse […]

AUTHOR RATE
Mitutoyo-SERIES 575 – Slim and Economical Design-ABSOLUTE Digimatic Indicator ID-U

General purpose indicator with the measuring range of 25.4mm/ 1”. Cost-effective and user-friendly type which is equipped with the basic functions necessary. The ABS (absolute) sensor restores the last origin position automatically when the indicator is turned on, and realizes high reliability by eliminating over-speed errors.  Regarding origin setting, refer to “Origin Setting of Digimatic Indicators” on page F-18. […]

AUTHOR RATE
Mitutoyo-SERIES 543 – Signal Output Function Type-ABSOLUTE Digimatic Indicator ID-C

Enables a tolerance judgment to be output to external equipment for a measurement result against user-defined limits. Solid-state switching provides high reliability by avoiding metallic switch contacts. Output is enabled by directly connecting to external devices (sequencers, etc., for which a logical invert is available if required). The measurement and judgment results are displayed on the LCD. The […]

AUTHOR RATE
Mitutoyo-SERIES 543 – Calculation Type-ABSOLUTE Digimatic Indicator ID-C

Calculation function operates on spindle displacement. Entering the appropriate formula factors for a fixture dedicated to the application enables direct measurement readout, thereby eliminating any need for the conversion tables previously needed for those applications where fixtures are typically used. Peak-Value Run-out/MAX/MIN Hold enables GO/±NG judgement for peak value. Simple operation of many functions with five buttons and […]

AUTHOR RATE

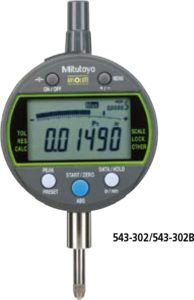

Mitutoyo-SERIES 543 – Bore Gage Type-ABSOLUTE Digimatic Indicator ID-C

Dedicated to inside measurement with minimum-value Hold and tolerance judgement functions. Measurement data memory function (9 measurement results can be stored) Simple operation of many functions with five buttons and status icons. Wide LCD and new analog bar graph are now standard on all models. Sampling is performed fifty times per second for accurate detection of maximum and […]

AUTHOR RATE
Mitutoyo-SERIES 543 – Peak-Value Hold Type-ABSOLUTE Digimatic Indicator ID-C

Run-out/MAX/MIN Hold function enables GO/±NG judgement for peak or difference values. Simple operation of many functions with five buttons and status icons. Wide LCD and new analog bar graph are now standard on all models. Sampling is performed fifty times per second for accurate detection of maximum and minimum values. SPECIFICATIONS Metric Order No.(w/lug, flat-back) Range Resolution Accuracy*1 Hysteresis*1 […]

AUTHOR RATE
Mitutoyo-SERIES 543 – with Dust/ Water Protection Conforming to IP66-ABSOLUTE Digimatic Indicator ID-N/B

Our unique ABS sensor restores the last origin position automatically when the indicator is turned on. The chance of overspeed errors has been eliminated thanks to the ABS sensor. Rated to IP66: can be used satisfactorily even in adverse environments where the indicator is subject to splashing by cutting fluid or coolant. Slim body design […]

AUTHOR RATE

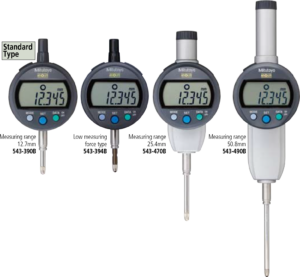

Mitutoyo-SERIES 543 — Standard Type-ABLOLUTE Digimatic Indicator ID-CX

The ABS (absolute) sensor restores the last origin position automatically when the indicator is turned on. Note: Regarding origin setting, refer to “Origin Setting of Digimatic Indicators” on page F-18. Thanks to Mitutoyo’s ABSOLUTE Linear Encoder, reliability has been increased due to elimination of over-speed errors. Tolerance-judging measurement is available by setting upper and lower […]

AUTHOR RATE
Mitutoyo-SERIES 543-ABSOLUTE Solar-Powered Digimatic Indicator ID-SS

Solar powered An environmentally friendly measuring instrument that does not require batteries, eliminating the hassle and cost of battery replacement. Can operate under minimum light conditions of 40 lux—lower than the level in a warehouse. Built-in recharger The large-capacity built-in reservoir capacitor allows you to use the indicator for long periods of time under light conditions below the […]

AUTHOR RATE
MARCATOR – WATERPROOF DIAL INDICATORS

MARCATOR WC7I DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft […]

AUTHOR RATE
MARCATOR – DIAL INDICATORS WITH LIMITED MEASURING RANGE

MARCATOR C1RN-40 DIAL INDICATOR Nomatter how far out of tolerance a part may be, the needle of a one revolution indicator will always stay in the red, non-read zone — no passing zero again — no reading errors. No limited contact travel Shockproof “Following Movement” Always keeps the hand within a single revolution Alternate contact […]

AUTHOR RATE
MARCATOR – PERPENDICULAR DIAL INDICATORS

MARCATOR W8I DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft […]

AUTHOR RATE
MARCATOR – LONG-RANGE INDICATORS

MARCATOR 28IQN DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft […]

AUTHOR RATE
MARCATOR – DIAL INDICATOR ANSI/AGD GROUP 4

MARCATOR E7I DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft […]

AUTHOR RATE
MARCATOR – DIAL INDICATOR ANSI/AGD GROUP 3

MARCATOR D6K-RC DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft […]

AUTHOR RATE
MARCATOR – DIAL INDICATOR ANSI/AGD GROUP 2

MARCATOR DIAL INDICATOR Outstanding quality due to a well thought out design, use of high quality materials, and the precision engineered mechanism’s guarantee The concentric “Speed Read“ pointer (on 1.0“ and .500“ models) allows easy and safe reading of this dial indicator Spindle and stem are made of resistant stainless steel Supplied with: lug back […]

AUTHOR RATE
MARCATOR – DIAL INDICATOR ANSI/AGD GROUP 1

MARCATOR B6Q-RC DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft […]

AUTHOR RATE
MARCATOR – DIAL INDICATOR, ANSI/AGD GROUP 0

MARCATOR A1/2Q DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft […]

AUTHOR RATE
MARCATOR – DIAL INDICATOR

MARCATOR – DIAL INDICATOR, MM MARCATOR 810 AU PRECISION DIAL INDICATOR High contrast dial face Adjustable tolerance markers Chrome plated housing Lifter protection cap on the measuring spindle Precision gears and pinions Technical data Order no. Product type Measuring span in mm Graduation value mm Type of dial face Range per rev. in mm Error […]

AUTHOR RATE
MARCATOR 803 SW PRECISION DIAL INDICATOR

High contrast dial face Adjustable tolerance markers Chrome plated housing Precision gears and pinions Hermetically sealed upper protective measuring spindle cap, bezel and transparent dial cover; sealed with O-rings Measuring spindle sealed with rubber sleeve, thus preventing contamination by liquids and impurities Technical data Order no. Product type Measuring span in mm Graduation value mm […]

AUTHOR RATE
MARCATOR 803 SB PRECISION DIAL INDICATOR

High contrast dial face Adjustable tolerance markers Chrome plated housing Hermetically sealed protective measuring spindle cap Limited measuring range for error free readings Large overtravel (ca. 9 mm) for easier insertion of test items in measuring devices Precision gears and pinions Technical data Order no. Product type Measuring span in mm Graduation value mm Type […]

AUTHOR RATE
MARCATOR – LARGE DIAL INDICATOR

MARCATOR 810 AG LARGE DIAL INDICATOR Large, high contrast dial face Adjustable tolerance markers Chrome plated housing Lifter protection cap on the measuring spindle Precision gears and pinions Technical data Order no. Product type Measuring span in mm Graduation value mm Type of dial face Range per rev. in mm Error limit measuring range µm […]

AUTHOR RATE
MARCATOR 803 A / 803 S / 805 A – SMALL DIAL INDICATORS

MARCATOR – SMALL DIAL INDICATOR, MM MARCATOR 805 A SMALL PRECISION DIAL INDICATORS High contrast dial face Adjustable tolerance markers Chrome plated housing Lifter protection cap on the measuring spindle Precision gears and pinions Technical data Order no. Product type Measuring span in mm Graduation value mm Type of dial face Range per rev. in […]

AUTHOR RATE
MARCATOR 1087 BRI – DIGITAL INDICATOR

MARCATOR 1087 BRI DIGITAL INDICATOR Integrated wireless transmitter High-contrast LCD display Operating and display unit (bezel) can be rotated through 280° Lifter protection cap on the measuring spindle Clamping shaft and measuring pin made of hardened stainless steel Immediate measurements due to the Reference System             Technical data Order no. […]

AUTHOR RATE
MARCATOR 1087 BR DIGITAL INDICATOR

High contrast LCD Operating and display unit (bezel) can be rotated through 280° Immediate measurements due to the Reference System Mounting shank and measuring spindle are both made of hardened stainless steel Protection cap on the end of measuring spindle           Technical data Order no. Product type Measuring span in mm […]

AUTHOR RATE
MARCATOR 1087 RI DIGITAL INDICATOR

            Technical data Order no. Product type Measuring span in mm Measuring span (inches) Resolution Resolution inches Graduation value mm Graduation value inch Range of analog display mm Range of analog display inches Error limit (mm) Repeatability mm Standard Measuring force (N) IP protection category Height of digits 4337663 1087 […]

AUTHOR RATE
MARCATOR 1087 ZR DIGITAL INDICATOR

High contrast LCD Operating and display unit (bezel) can be rotated through 280° Immediate measurements due to the Reference System Lifter protection cap on the measuring spindle Mounting shank and measuring spindle are both made of hardened stainless steel               Technical data Order no. Product type Measuring span in […]

AUTHOR RATE
MARCATOR 1086 RI / 1086 WRI – DIGITAL INDICATOR, INTEGRATED WIRELESS

MARCATOR 1086 RI DIGITAL INDICATOR Integrated wireless transmitter High contrast LCD Operating and display unit (bezel) can be rotated through 280° Mounting shank and measuring spindle are both made of hardened stainless steel Immediate measurements due to the Reference System             Technical data Order no. Product type Measuring span in […]

AUTHOR RATE
MARCATOR 1086 R / 1086 WR – DIGITAL INDICATOR

MARCATOR 1086 ZR DIGITAL INDICATOR High contrast LCD Operating and display unit (bezel) can be rotated through 280° Lifter protection cap on the measuring spindle Mounting shank and measuring spindle are both made of hardened stainless steel Immediate measurements due to the Reference System           Technical Data Order no. Product type […]

AUTHOR RATE
MARCATOR 1075 R DIGITAL INDICATOR

High contrast LCD Hermetically sealed protective measuring spindle cap Mounting shank and measuring spindle are both made of hardened stainless steel             Technical Data Order no. Product type Measuring span in mm Measuring span (inches) Resolution Resolution inches Error limit (mm) Standard Measuring force (N) IP protection category Height of […]

AUTHOR RATE
MARTEST – 3D TOUCH PROBES

MARTEST 802 EW DIGITAL 3D TOUCH PROBE Excellent readability thanks to combined display: – bar graph for dynamic path information – digital display for exact readings Can be controlled independently of a machine tool Large working range in all axes (X, Y, Z) prevents damage to the stylus by contacting errors Compact metal housing and […]

AUTHOR RATE
MARTEST 800 EWL DIGITAL TEST INDICATOR

Inductive measuring system Battery life approx. 2 years Operating unit is protected against coolants and lubricants, protection class IP65 Combined analog and digital display Operating and display unit (bezel) can be rotated through 360° Satin chrome finished housing with 3 dovetail guideways Shockproof Movement bearings are jeweled Automatic matching to sensing direction Anti-magnetic Double lever […]

AUTHOR RATE
MARTEST – TEST INDICATOR, HORIZONTAL MODEL

MARTEST – TEST INDICATOR, HORIZONTAL MODEL, MM MARTEST 800 H TEST INDICATOR High-contrast dial face, sealed with O-ring Mineral glass viewing panel for best protection against cracking, scratching, hot shavings and optimal resistance to solvents Matt chrome plated protective casing with three integrated dovetail guide rails Shockproof measuring mechanism Anti-magnetic model Automatic adjustment to the […]

AUTHOR RATE
MARTEST – TEST INDICATOR, VERTICAL MODEL

MARTEST – TEST INDICATOR, VERTICAL MODEL, MM MARTEST 800 VGM TEST INDICATOR High-contrast dial face, sealed with O-ring Mineral glass viewing panel for best protection against cracking, scratching, hot shavings and optimal resistance to solvents Matt chrome plated protective casing with three integrated dovetail guide rails Shockproof measuring mechanism Anti-magnetic model Automatic adjustment to the […]

AUTHOR RATE
MARTEST – TEST INDICATOR, STANDARD MODEL

MARTEST – TEST INDICATOR, STANDARD MODEL, MM MARTEST – TEST INDICATOR, STANDARD MODEL, 0.01 MM MARTEST 800 SR TEST INDICATOR High-contrast dial face, sealed with O-ring Mineral glass viewing panel for best protection against cracking, scratching, hot shavings and optimal resistance to solvents Matt chrome plated protective casing with three integrated dovetail guide rails Shockproof […]

AUTHOR RATEUSERS RATE (0)

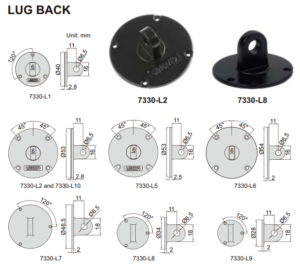

BACK CODE – 7330

  Check the PDF

AUTHOR RATEUSERS RATE (0)

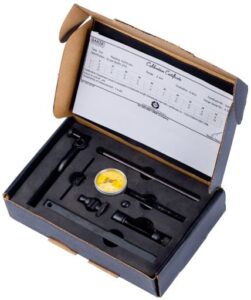

UNIVERSAL TEST SET

FEATURES: Every gauge carries a calibration certificate giving actual values Consists of back Plunger dial Gauge, ‘G’ clamp, universal clamp, swinging arm assembly, tool post holder, holding rod, tommy bar and anvil Swinging arm assembly enables the back plunger dial gauge to be used for internal work up to a depth of 40 mm similar […]

AUTHOR RATEUSERS RATE (0)
DIAL GAUGE ACCESSORIES

DIAL GAUGE ACCESSORIES DIAL GAUGE CONTACT POINTS DIAL GAUGE CONTACT POINTS (AGD) DIAL GAUGE BACK LEVER TYPE DIAL GAUGE ACCESSORIES Check the PDF

AUTHOR RATEUSERS RATE (0)

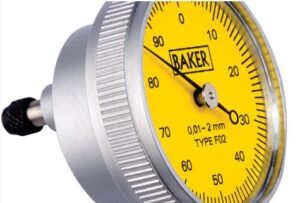

BACK PLUNGER DIAL GAUGE

MODEL 38 BACK PLUNGER DIAL GAUGE FEATURES: An unique face reading dial gauge with sensing plunger at right angles to the dial Every gauge carries a calibration certificate giving actual values Spindle made of stainless steel Fitted with tungsten carbide ball anvil Rigid brass case for increased rigidity Strong and smooth metal bezel Suitable for mounting […]

AUTHOR RATEUSERS RATE (0)
LEVER DIALS

MODEL 29/38 LEVER DIAL GAUGES FEATURES: Specification: IS, DIN, ANSI & JIS Every gauge carries a calibration certificate giving actual values Auto reversal mechanism Fitted with jewels and Swiss miniature ball bearings for smoother operation Robust and highly sensitive gauge suitable for workshop use Metric Gauges conform to IS 11498 and for the European market to […]

AUTHOR RATEUSERS RATE (0)

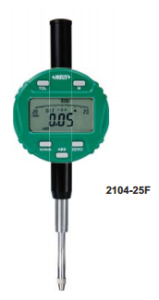

DIGITAL PLUNGER DIAL GAUGE

VALUE LINE SERIES FEATURES: Strong construction Large Digits for better viewing Display Resolution 0.01 mm & 0.0005 Inch Zero setting With Calibration certificate Useful functions : mm / Inch Preset Reference Manual / Auto power off     CODE V1 V2 V3 Reading 0.001 mm 0.001 mm 0.001 mm Reading 0.0005 Inch 0.0005 Inch 0.0005 […]

AUTHOR RATEUSERS RATE (0)
MECHANICAL DIAL GAUGES

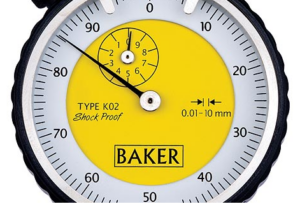

MODEL 56 MECHANICAL DIAL GAUGES Specification: IS, DIN, ANSI & JIS Every gauge carries a calibration certification giving actual values Hardened stem for trouble free clamping Spindle made of stainless steel Fitted with tungsten carbide ball anvil Rigid brass case for increased rigidity Strong and smooth metal bezel Supplied with tolerance pointers Aesthetically appealing protective top […]

AUTHOR RATEUSERS RATE (0)
DIAL TEST INDICATOR CENTERING HOLDER CODE – 6291

Center cylinders or holes on machine tools   Check the PDF

AUTHOR RATEUSERS RATE (0)

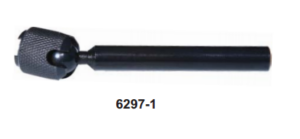

DIAL TEST INDICATOR UNIVERSAL HOLDER CODE – 6297

Set the indicators at the desired attitude to the workpiece   Check the PDF

AUTHOR RATEUSERS RATE (0)

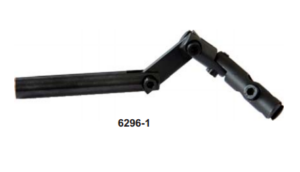

DIAL TEST INDICATOR HOLDER CODE – 6296

Supplied with fixing spanner   Check the PDF

AUTHOR RATEUSERS RATE (0)
STYLI FOR DIAL TEST INDICATORS CODE -6284

  Code For dial test indicator Material of contact point L D 6284-1 2380-08, 2398-08 2381-08, 2399-08 steel 13.5 SØ3 6284-3 carbide 13.5 SØ2 6284-4 ruby 13.5 SØ2 6284-8 carbide 13.5 SØ3 6284-21 2380-02 2381-02 steel 12.5 SØ1 6284-22 carbide 12.5 SØ2 6284-23 carbide 12.5 SØ3 6284-44 2880-02 2880-02R 2895-08 2897-02 2898-08 carbide 11.7 SØ0.4 […]

AUTHOR RATEUSERS RATE (0)

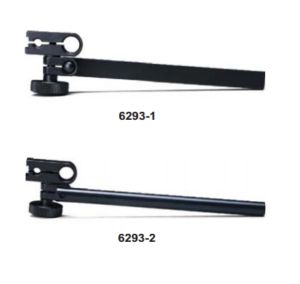

DIAL TEST INDICATOR HOLDER CODE – 6293

    Code Stem section Stem length (L)   6293 1 9x9mm 100mm   6293-6 9x9mm 50mm   6293-2 Ø8mm 115mm Check the PDF

AUTHOR RATEUSERS RATE (0)
EXTENSION ROD

    Code Material L   6282-2001 steel 10   6282-2002 steel 15   6282-2003 steel 20   6282-2004 steel 25   6282-2005 steel 30   6282-2006 steel 35   6282-2007 steel 40   6282-2008 steel 45   6282-2009 steel 50   6282-2010 steel 55 […]

AUTHOR RATEUSERS RATE (0)
ROLLER POINT

    Code Material of measuring face   6282-1901 steel Check the PDF

AUTHOR RATEUSERS RATE (0)
BLADE POINT

  Code Material of measuring face D W   6282-1801 steel 0.4 2   6282-1802 steel 0.6 2   6282-1803 steel 1 4 Check the PDF

AUTHOR RATEUSERS RATE (0)

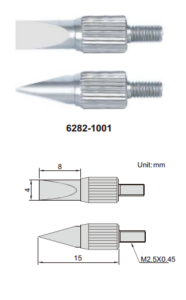

KNIFE EDGE POINT

    Code Material of measuring face   6282-1001 steel Check the PDF

AUTHOR RATEUSERS RATE (0)

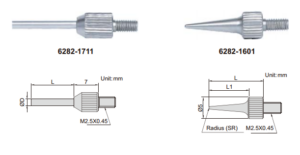

NEEDLE POINT

    Code Material of measuring face ØD L   6282-1701 steel 0.45 3   6282-1702 steel 0.45 5   6282-1703 carbide 1 3   6282-1704 carbide 1 5   6282-1705 carbide 1 8   6282-1706 carbide 1 10   6282-1707 carbide 1 20   6282-1708 carbide […]

AUTHOR RATEUSERS RATE (0)
FLAT POINT

    Code Material of measuring face L (mm)   6282-1101 steel 8   6282-1102 steel 10   Code Material of measuring face ØD(mm)   6282-1201 steel 10   6282-1202 steel 15   6282-1203 steel 20   6282-1204 steel 25   6282-1205 steel 30   Code Material of […]

AUTHOR RATEUSERS RATE (0)
CONICAL POINT

    Code Material of measuring face   6282-0601 steel   6282-0701 steel   6282-0801 steel   6282-0901 steel Check the PDF

AUTHOR RATEUSERS RATE (0)

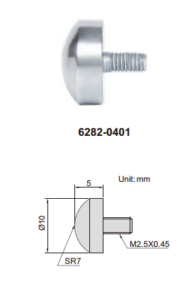

SPHERICAL POINT

    Code Material of measuring face   6282-0401 steel Check the PDF

AUTHOR RATEUSERS RATE (0)
BALL POINT

    Code Material of measuring face L (mm)   6282-0101  carbide 7.3   6282-0103  ceramic 7.3   6282-0104  carbide 8.3   6282-0106  carbide 12.1   6282-0107  carbide 14   6282-0108  carbide 15   6282-0109 ceramic 15   6282-0110  carbide […]

AUTHOR RATEUSERS RATE (0)

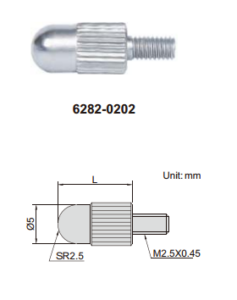

SHELL TYPE POINT

    Code Material of measuring face L (mm)   6282-0202 steel 5   6282-0203 steel 10   6282-0205  steel 15   6282-0207  steel 20   6282-0208  steel 25   6282-0210 steel 30 Check the PDF

AUTHOR RATEUSERS RATE (0)
ROUND BODY DIAL TEST INDICATOR CODE – 2391

Jeweled bearing Carbide contact point Adjustable two measuring directions Anti magnetic body Supplied with two clamps: diameter Ø4mm and Ø8mm Optional accessory: styli (page 138)   Code Range Graduation Accuracy Hysteresis Dial reading 2391-08* 0.8mm 0.01mm 13µm 3μm 0-40-0 *Supplied with manufacturer calibration certificate Check the PDF

AUTHOR RATEUSERS RATE (0)

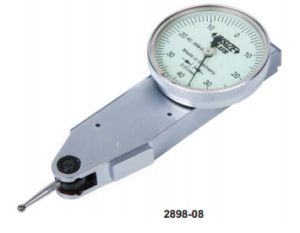

SIDE TYPE DIAL TEST INDICATOR CODE – 2898

Ceramic bearing Anti magnetic carbide contact point Two measuring directions Supplied with one clamp: diameter Ø8mm Optional accessory: styli (page 138)   Code Range Graduation Accuracy Hysteresis Dial reading 2898-08* 0.8mm 0.01mm 13µm 3μm 0-40-0 *Supplied with manufacturer calibration certificate Check the PDF

AUTHOR RATEUSERS RATE (0)
LONG STYLI DIAL TEST INDICATOR CODE – 2896

Ceramic bearing Anti magnetic carbide contact point Two measuring directions Supplied with one clamp: diameter Ø8mm Optional accessory: styli (page 138)   Code Range Graduation Accuracy Hysteresis Dial reading 2896-05* 0.5mm 0.01mm 13μm 3μm 0-25-0 *Supplied with manufacturer calibration certificate Check the PDF

AUTHOR RATEUSERS RATE (0)

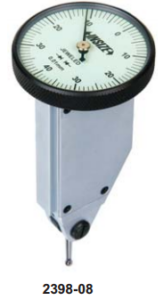

BACK PLUNGER TYPE DIAL TEST INDICATOR CODE – 2398

Jeweled bearing Carbide contact point Two measuring directions Anti magnetic body Supplied with two clamps: diameter Ø4mm and Ø8mm Optional accessory: styli (page 138)   Code Range Graduation Accuracy Hysteresis Dial reading 2398-08* 0.8mm 0.01mm 13µm  3µm 0-40-0 *Supplied with manufacturer inspection certificate traceable to NIST USA Check the PDF

AUTHOR RATEUSERS RATE (0)

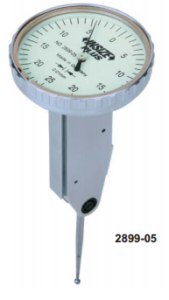

BACK PLUNGER LONG STYLI DIAL TEST INDICATOR CODE – 2899

Ceramic bearing Anti magnetic carbide contact point Two measuring directions Supplied with one clamp: diameter Ø8mm Optional accessory: styli (page 138)   Code Range Graduation Accuracy Hysteresis Dial reading 2899-05* 0.5mm 0.01mm 13μm 3μm 0-25-0 *Supplied with manufacturer calibration certificate Check the PDF

AUTHOR RATEUSERS RATE (0)

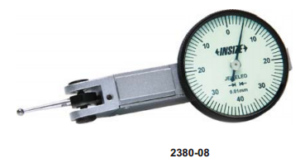

DIAL TEST INDICATOR CODE – 2380

Jeweled bearing Carbide contact point Two measuring directions Anti magnetic body Supplied with two clamps: diameter Ø4mm and Ø8mm Optional accessory: styli (page 138)   Code Range Graduation Accuracy Hysteresis Dial reading A L mm 2380-08* 0.8mm 0.01mm 13µm 3µm 0-40-0 Ø30 13.5 2381-08* 0.8mm 0.01mm 13µm 3µm 0-40-0 Ø37 13.5 2380-02* 0.2mm 0.002mm 6µm […]

AUTHOR RATEUSERS RATE (0)
PRECISION DIAL TEST INDICATOR CODE – 2897

Ceramic bearing Anti magnetic carbide contact point Two measuring directions Supplied with one clamp: diameter Ø8mm Optional accessory: styli (page 138)   Code Range Graduation Accuracy Hysteresis Dial reading 2897-0* 0.2mm 0.001mm 4µm 2µm 0-100-0 *Supplied with manufacturer calibration certificate Check the PDF

AUTHOR RATEUSERS RATE (0)
PRECISION DIAL TEST INDICATOR CODE – 2880

Ceramic bearing Two measuring directions Supplied with one clamp: diameter Ø8mm Optional accessory: styli (page 138)   Code Range Graduation Accuracy Hysteresis Dial reading Remark 2880-02* 0.2mm  0.002mm 4µm 2µm 0-100-0 anti magnetic carbide contact point 2880-02R* 0.2mm 0.002mm 4µm 2µm 0-100-0 ruby contact point *Supplied with manufacturer calibration certificate Check the PDF

AUTHOR RATEUSERS RATE (0)
ONE REVOLUTION COMPACT DIAL INDICATOR CODE – 2884

Eliminate the possibility of reading errors due to miscounting Shockproof Free stroke: 4mm With limit pointers Optional accessory: backs (page 132), contact points (page 128~131)   Code Range Graduation Accuracy Hysteresis Range/rev Dial reading Remark 2884-08* 0.8mm 0.01mm 9µm 3µm 1mm 40-0-40 lug back 2884-08F* 0.8mm 0.01mm 9µm 3µm 1mm 40-0-40 flat back *Supplied with […]

AUTHOR RATEUSERS RATE (0)
COMPACT DIAL INDICATOR CODE – 2311

Jeweled bearing Supplied with limit pointers Optional accessory: backs (page 132), contact points (page 128~131)   Code Range Graduation Accuracy Hysteresis Range/rev Dial reading Remark B D 2311-3* 3mm 0.01mm 14µm 3µm 0.5mm 0-50 lug back 46 10.5 2311-5* 5mm 0.01mm 16µm 3µm 0.5mm 0-50 lug back 48 12.5 2311-3F* 3mm 0.01mm 14µm 3µm 0.5mm […]

AUTHOR RATEUSERS RATE (0)
ONE REVOLUTION DIAL INDICATOR CODE – 2882

Eliminate the possibility of reading errors due to miscounting Shockproof Free stroke: 7mm With limit pointers Optional accessory: backs (page 132), contact points (page 128~131)   Code Range Graduation Accuracy Hysteresis Range/rev Dial reading Remark 2882-08* 0.8mm 0.01mm 9µm 3µm 1mm 40-0-40 lug back 2882-08F* 0.8mm 0.01mm 9µm 3µm 1mm 40-0-40 flat back *Supplied with […]

AUTHOR RATEUSERS RATE (0)
ONE REVOLUTION PRECISION DIAL INDICATOR CODE – 2885

Eliminate the possibility of reading errors due to miscounting Shockproof Jeweled bearing Free stroke: 4.5mm With limit pointers Optional accessory: backs (page 132), contact points (page 128~131), lifting lever(code 6289-150)   Code Range Graduation Accuracy Hysteresis Range/rev Dial reading Remark 2885-008* 0.08mm 0.001mm 3µm 1.5µm 1mm 40-0-40 lug back 2885-008F* 0.08mm 00.001mm 3µm 1.5µm 1mm […]

AUTHOR RATEUSERS RATE (0)
DIAL INDICATOR CODE – 2309

Shockproof Jeweled bearing Supplied with limit pointers Optional accessory: backs (page 132), contact points (page 128~131)   Code Range Graduation Type Accuracy Hysteresis Range/rev Dial reading Remark 2309-30* 30mm 0.01mm A 35µm 7µm 1mm 0-100 lug back 2309-30F* 30mm 0.01mm A 35µm 7µm 1mm 0-100 flat back 2309-50* 50mm 0.01mm A 40µm 8µm 1mm 0-100 […]

AUTHOR RATEUSERS RATE (0)
WATER INDICATOR CODE – 2324

IP54 dust/waterproof Jeweled bearing   Code Range Graduation Accuracy Hysteresis Range/rev Dial reading/td> Remark 2324-10* 10mm 0.01mm 17µm 3µm 1mm 0-100 lug back 2324-10F* 10mm 0.01mm 17µm 3µm 1mm 0-100 lug back *Supplied with manufacturer calibration certificate Check the PDF

AUTHOR RATEUSERS RATE (0)
SHOCKPROOF DIAL INDICATOR CODE – 2314

Shockproof Jeweled bearing Supplied with limit pointers and bezel clamp Optional accessory: backs (page 132), contact points (page 128~131) *Supplied with manufacturer calibration certificate   Code Range Graduation Accuracy Hysteresis Range/rev Dial reading/td> Remark 2314-3A* 3mm 0.01mm 14µm 3µm 1mm 0-100 lug back 2314-5A* 5mm 0.01mm 16µm 3µm 1mm 0-100 lug back 2314-10A* 10mm 0.01mm […]

AUTHOR RATEUSERS RATE (0)
DIAL INDICATOR CODE – 2308

Jeweled bearing Supplied with limit pointers and bezel clamp Optional accessory: backs (page 132), contact points (page 128~131)   Code Range Graduation Accuracy/td> Hysteresis Range/rev Dial reading/td> Remark 2308-3A* 3mm 0.01mm 14µm 3µm 1mm 0-100 lug back 2308-5A* 5mm 0.01mm 16µm 3µm 1mm 0-100 lug back 2308-10A* 10mm 0.01mm 17µm 3µm 1mm 0-100 lug back […]

AUTHOR RATEUSERS RATE (0)
PRECISION DIAL INDICATOR CODE – 2313

Graduation: 0.001mm Jeweled bearing Supplied with limit pointers Optional accessory: backs (page 132), contact points (page 128~131)   Code Range Accuracy Hysteresis Range/rev Dial reading Remark A B C D 2313-1A* 1mm 5µm 2µm 0.2mm 0-100-0 lug back 45 62.5 19.5 15 2313-2A* 2mm 8µm 2.5µm 0.2mm 0-100-0 lug back 45 62.5 19.5 15 2313-1FA* […]

AUTHOR RATEUSERS RATE (0)
PRECISION DIAL INDICATOR CODE – 2830

Shockproof Jeweled bearing With limit pointers Optional accessory: backs (page 132), contact points (page 128~131)   Code Range Graduation Accuracy Hysteresis Range/rev Dial reading Remark 2830-1* 1mm 0.001mm 4µm 2µm 0.2mm 0-100-0 lug back 2830-1F* 1mm 0.001mm 4µm 2µm 0.2mm 0-100-0 flat back *Supplied with manufacturer inspection certificate Check the PDF

AUTHOR RATEUSERS RATE (0)
DIGITAL INDICATOR FOR BORE GAGES CODE – 2108

Specially designed for bore gages The minimum value tracking function can find the diameter automatically Read the diameter directly, after imputing the size of setting ring Reading in digit and analog Display can be rotated by 320º Button function: minimum value tracking, calibration, data preset, inch/metric conversion, absolute/incremental measurement CR2032 battery, automatic power off Data […]

AUTHOR RATEUSERS RATE (0)
DIGITAL INDICATOR WITH LIFTING LEVER CODE – 2109

Reading in digit and analog Display can be rotated by 320º Button function: tolerance Go and No-Go display, data preset, measuring direction change, max./min./range measurement, inch/metric conversion, absolute/incremental measurement CR2032 battery, automatic power off Data Output Optional accessory: data output system, backs (page 132), contact points (page 128~131)   Code Range Resolution Accuracy Hysteresis Remark […]

AUTHOR RATEUSERS RATE (0)
WATERPROOF DIGITAL INDICATOR CODE : 2115

Dust/waterproof Button function: on/off, zero, mm/inch CR2032 battery, automatic power off Data output Optional accessory: data output system(code 7306-40, 7302-SPC3A, 7305-SPC1A), backs (page 125), contact points (page 121~124)   Resolution 0.001mm/0.0005″ Code Range Dust/waterproof Accuracy Hysteresis Remark 2115-101* 12.7mm/0.5″ IP65 5µm 2µm lug back 2115-251* 25.4mm/1″ IP54 5µm 3µm lug back 2115-501* 50.8mm/2″ IP54 6µm […]

AUTHOR RATEUSERS RATE (0)
DIGITAL INDICATOR CODE : 2104

Reading in digit and analog Display can be rotated by 320º Button function: tolerance Go and No-Go display, data preset, measuring direction change, max./min./range measurement, inch/metric conversion, absolute/incremental measurement CR2032 battery, automatic power off Data output Optional accessory: data output system (code 7306-40, 7302-SPC3A, 7305-SPC1A), backs (page 125), contact points (page 121~124)   Resolution 0.01mm/0.0005″ […]

AUTHOR RATEUSERS RATE (0)
DIGITAL INDICATOR CODE 2103

Reading in digit and analog Display can be rotated by 320º Button function: tolerance Go and No-Go display, data preset, measuring direction change, max./min./range measurement, inch/metric conversion, absolute/incremental measurement CR2032 battery, automatic power off Data output Optional accessory: data output system (code 7306-40, 7302-SPC3A, 7305-SPC1A), backs (page 125), contact points (page 121~124)   Resolution 0.001mm/0.0005″ […]

Gokul Traders Copyright © 2010-18 Developed by Shades Of Web. All rights reserved.
