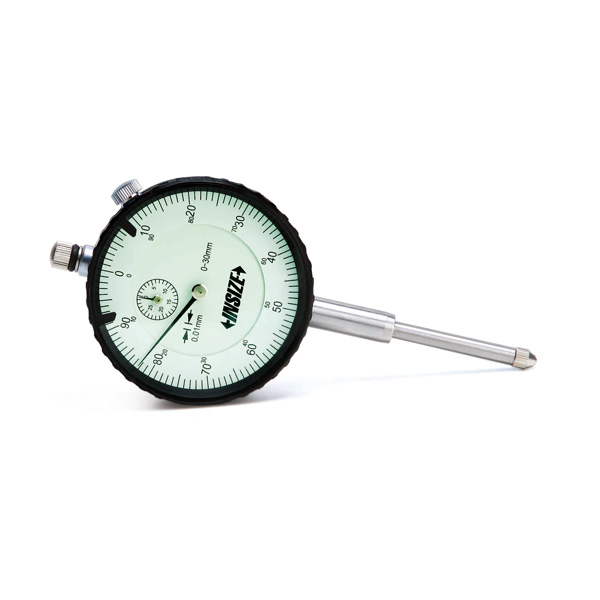

INSIZE DIAL INDICATOR LONG STROKE (CODE – 2310)

Code:

▪Supplied with limit pointers and bezel clamp
▪Optional accessory: backs
▪Supplied with manufacturer inspection certificate

Click to Expand

INSIZE DIAL INDICATOR LONG STROKE (CODE – 2310)

Product Overview

The INSIZE Dial Indicator Long Stroke (Code – 2310) is a precision measuring instrument designed for extended measurement ranges in industrial metrology applications. Available in multiple SKU variations including flat back and lug back configurations with 20mm and 30mm ranges, this instrument ensures reliable and accurate comparative measurements. Each unit is supplied complete with limit pointers, a bezel clamp, and a manufacturer inspection certificate.

Key Features & Capabilities

Extended Range Measurement: Available in 20mm and 30mm stroke options.
Precision Graduation: Features a 0.01mm graduation with a 1mm range per revolution.
Dial Reading: Clear 0-100 dial reading configuration.
Standard Inclusions: Supplied with limit pointers, bezel clamp, and a manufacturer inspection certificate.
Flexible Mounting Options: Available in both flat back (FA series) and lug back (A series) variants.
Optional Accessories: Backs available as optional accessories.

Technical Specifications

Code	Range (mm)	Graduation	Accuracy	Hysteresis	Range/rev	Dial Reading	Remarks	B (mm)	D (mm)
2310-20FA\*	20	0.01mm	25µm	5µm	1mm	0-100	flat back	83	35
2310-30FA\*	30	0.01mm	35µm	7µm	1mm	0-100	flat back	88	40
2310-20A\*	20	0.01mm	25µm	5µm	1mm	0-100	lug back	83	35
2310-30A\*	30	0.01mm	35µm	7µm	1mm	0-100	lug back	88	40
