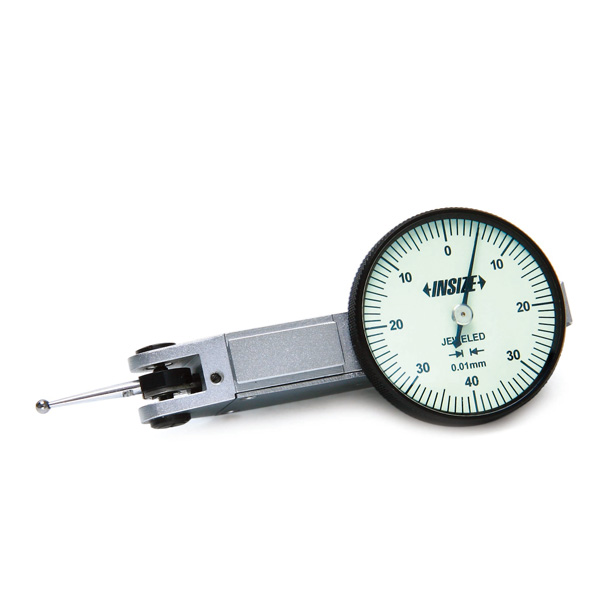

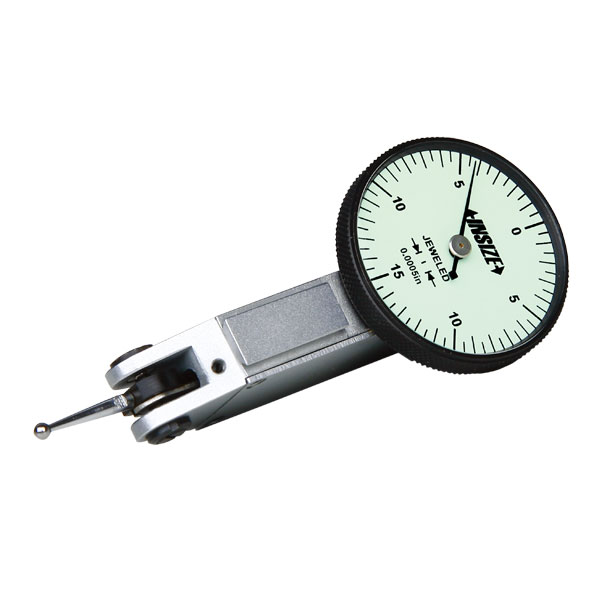

INSIZE DIAL TEST INDICATOR (CODE – 2380 / 2381)

Code:

▪Meet DIN2770 (Except 2380-02, 2381-02, 2381-021)
▪Jeweled bearing
▪Carbide contact point
▪Two measuring directions
▪Anti magnetic body

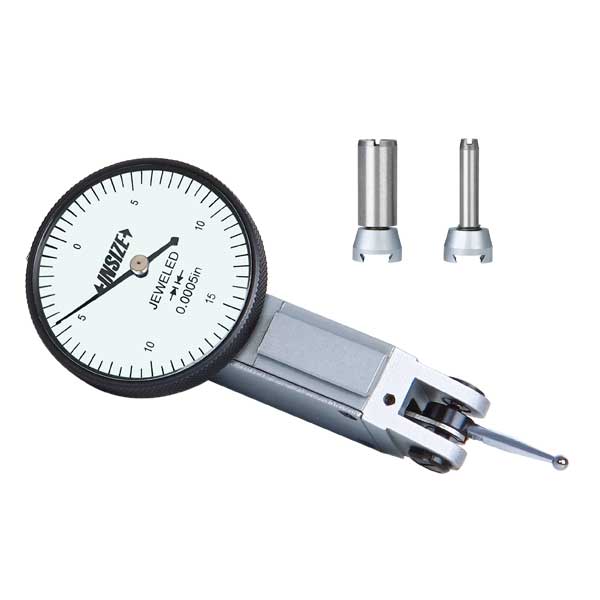

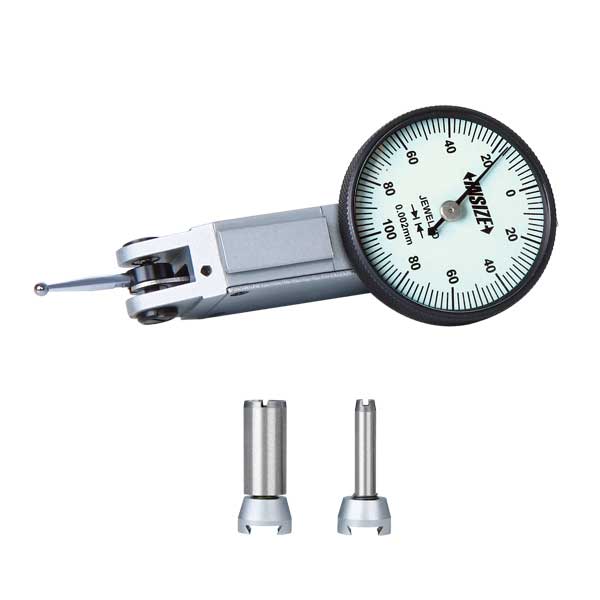

▪Supplied with two clamps: diameter Ø4mm and Ø8mm
▪Optional accessory: styli

Click to Expand

INSIZE DIAL TEST INDICATOR (CODE – 2380 / 2381)

Product Overview

The INSIZE Dial Test Indicator (Series 2380 / 2381) is a precision measuring instrument designed for accurate dimensional inspection. It features jeweled bearings, a carbide contact point, and an anti-magnetic body, built to meet DIN2770 standards (excluding models 2380-02, 2381-02, and 2381-021). Each unit is supplied with two clamps (Ø4mm and Ø8mm diameters) and includes a manufacturer inspection certificate.

Key Features & Capabilities

Standard Compliance: Meets DIN2770 (except for models 2380-02, 2381-02, and 2381-021).
Construction: Jeweled bearing design paired with an anti-magnetic body and carbide contact point.
Measurement Capability: Supports two measuring directions.
Included Accessories: Supplied with two mounting clamps (diameter Ø4mm and Ø8mm).
Optional Accessories: Styli available as optional additions.
Quality Assurance: Supplied with a manufacturer inspection certificate.

Technical Specifications

Code	Range	Graduation	Accuracy	Hysteresis	Dial Reading	A	L (mm)
2380-08\*	0.8mm	0.01mm	13µm	3µm	0-40-0	Ø30	13.5
2381-08\*	0.8mm	0.01mm	13µm	3µm	0-40-0	Ø37	13.5
2380-02\*	0.2mm	0.002mm	6µm	2µm	0-100-0	Ø30	12.5
2381-02\*	0.2mm	0.002mm	6µm	2µm	0-100-0	Ø37	12.5
2381-021\*	0.2mm	0.001mm	6µm	2µm	0-100-0	Ø37	12.5
