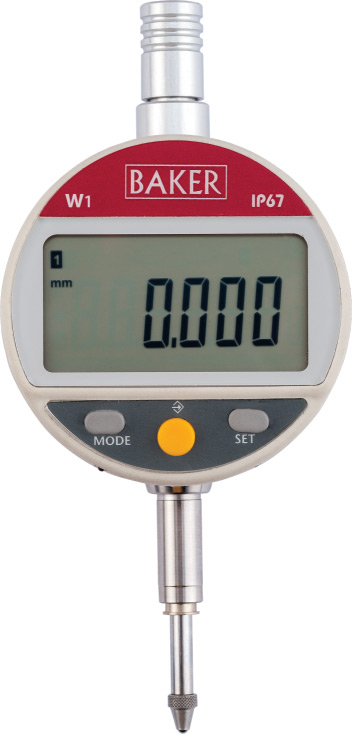

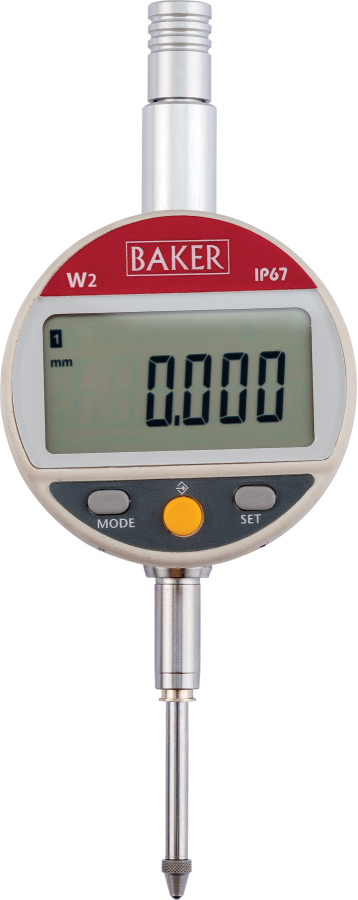

The Baker Digital Dial Gauges IP67 W Series consists of high-precision electronic plunger-type dial indicators designed for industrial metrology. Featuring an IP67 waterproof rating, these gauges offer reliable performance in demanding shop-floor environments exposed to coolants, water, and lubricants. Available in multiple models (W1, W2, W3, W1A, W2A, W3A) with varying measurement ranges from 0โ12.5 mm up to 0โ50 mm, the instruments provide accurate inductive measuring with a high-resolution digital readout of 0.001 mm / 0.00005 inch.
- Construction & Protection: IP67 waterproof rating; hardened and ground stainless steel plunger and stem.

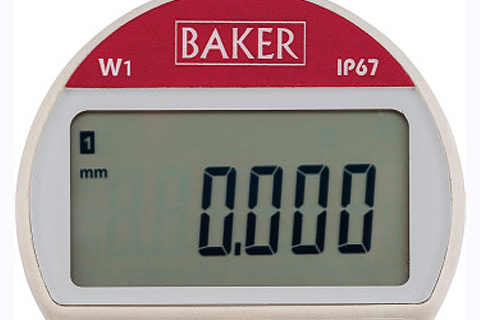

- Display & Interface: Rotating display (270 degrees) with extra-large digits for excellent visibility; automatic wake-up and sleep mode.
- Measuring System: Accurate inductive measuring system with inch/metric conversion and robust construction.
- Advanced Menus: New technology with configurable menus and a broad choice of menus including MIN / MAX / DELTA, TOL, Factor, PRESET, and AUTO OFF.
- Data Output: RS232 data output (with optional USB/RS232 proximity cables available).
- Calibration & Customization: Each gauge carries a calibration certificate giving actual values; setting to 0.01 mm / 0.0005 Inch is possible from all sides.
- Wireless Capability: W1, W2 & W3 Digital Dial Gauges are available with integrated Bluetoothยฎ wireless technology upon request.
Model Specification Matrix
Dimensional Reference Table (mm)
Standard Accessories & Options
- Baker Proximity cable with RS232 interface suitable for Baker digital dials W1, W2, W3, W1A, W2A, W3A
- Baker Proximity cable with USB interface suitable for Baker digital dials W1, W2, W3, W1A, W2A, W3A
- Model variants: W1A-B, W2A-B
