BAKER MECHANICAL PLUNGER DIAL GAUGES (MODEL 56)

Name: BAKER MECHANICAL PLUNGER DIAL GAUGES (MODEL 56)
Brand: Baker Gauges
SKU: K01

Code:

Baker Plunger Dial Gauge Range 0.8mm to 30mm / 0.08" to 1", Range 0.8mm/0.08inch, One revolution dial gauge. Shock proof, Hardened stem for free clamping, Rigid brass case.

BUY NOW DOWNLOAD CATALOG

f in

Click to Expand

BAKER MECHANICAL PLUNGER DIAL GAUGES (MODEL 56)

Product Overview

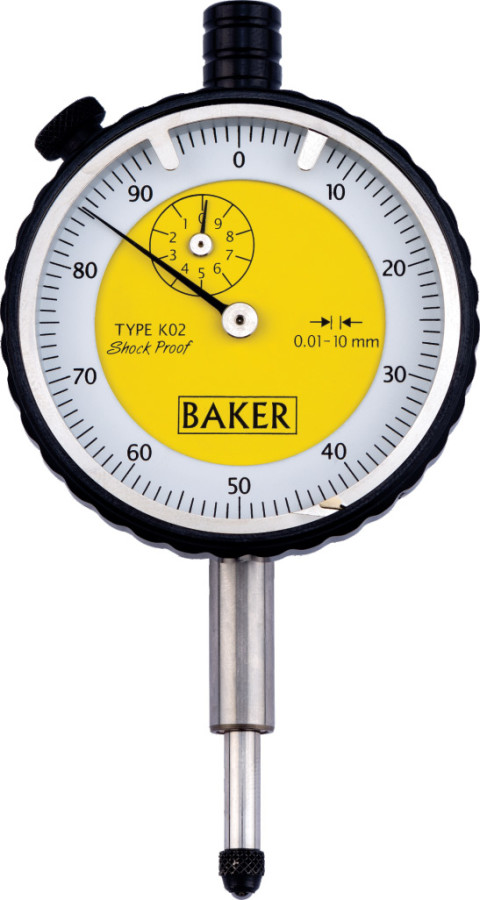

The Baker Mechanical Plunger Dial Gauge (Model 56) is a precision measuring instrument engineered to meet IS, DIN, ANSI, and JIS standards. Built with a rigid brass case and a hardened mounting stem, this dial indicator is designed for accurate comparative measurements in industrial metrology and machining environments. The instrument features a smooth metal bezel, stainless steel spindle, and tungsten carbide ball anvil for consistent wear resistance and durability.

Key Features & Capabilities

Every plunger dial gauge carries a calibration certificate giving actual values.
Hardened stem for trouble-free clamping.
Spindle made of stainless steel.
Fitted with tungsten carbide ball anvil.
Rigid brass case for increased rigidity.
Strong and smooth metal bezel.
Supplied with tolerance pointers.
Aesthetically appealing protective top cap in black color.
Special dial gauges for OEMs also manufactured on request.
Complete spares and after-sales service available.
$0.001\text{ mm} \times 1\text{ mm}$ dial gauge fitted with 8 jewels and conforms to JIS B-7503.

Technical Specifications

Metric Range (56 mm Bezel Diameter)

Type	Reading	Range	Graduation
K03	$0.01\text{ mm}$	$5\text{ mm}$	$0-50-0$
K04	$0.01\text{ mm}$	$5\text{ mm}$	$0-100$
K01	$0.01\text{ mm}$	$10\text{ mm}$	$0-50-0$
K02	$0.01\text{ mm}$	$10\text{ mm}$	$0-100$
K08A	$0.01\text{ mm}$	$25\text{ mm}$	$0-100$
K07	$0.01\text{ mm}$	$30\text{ mm}$	$0-100$
K20	$0.01\text{ mm}$	$50\text{ mm}$	$0-100$
K09	$0.002\text{ mm}$	$2\text{ mm}$	$0-10-0$
K10	$0.002\text{ mm}$	$2\text{ mm}$	$0-20$
K11	$0.002\text{ mm}$	$5\text{ mm}$	$0-10-0$
K12	$0.002\text{ mm}$	$5\text{ mm}$	$0-20$
K13A	$0.001\text{ mm}$	$12\text{ mm}$	$0-10-0$
K14A	$0.001\text{ mm}$	$12\text{ mm}$	$0-20$
K05	$0.1\text{ mm}$	$10\text{ mm}$	$0-10$
K06A	$0.1\text{ mm}$	$25\text{ mm}$	$0-10$

Metric Range (K17S, K18S, K100)

Bezel Dia.	Type	Reading	Range	Graduation
$56\text{ mm}$	K17S	$0.001\text{ mm}$	$1\text{ mm}$	$0-100-0$
$56\text{ mm}$	K18S	$0.001\text{ mm}$	$1\text{ mm}$	$0-100$
$88\text{ mm}$	K100	$0.01\text{ mm}$	$0-100\text{ mm}$	—

Inch Range (56 mm Bezel Diameter)

Bezel Dia.	Type	Reading	Range	Graduation
$56\text{ mm}$	K45	$0.001\text{ "}$	$0.25\text{ \"}$	$0-50-0$
$56\text{ mm}$	K46	$0.001\text{ "}$	$0.25\text{ \"}$	$0-100$
$56\text{ mm}$	K51	$0.001\text{ "}$	$0.5\text{ \"}$	$0-50-0$
$56\text{ mm}$	K52	$0.001\text{ "}$	$0.5\text{ \"}$	$0-100$
$56\text{ mm}$	K50	$0.001\text{ "}$	$1\text{ \"}$	$0-100$
$56\text{ mm}$	K49	$0.001\text{ "}$	$1\text{ \"}$	$0-50-0$
$56\text{ mm}$	K21	$0.001\text{ "}$	$2\text{ \"}$	$0-100$
$56\text{ mm}$	K55	$0.0005\text{ "}$	$0.25\text{ \"}$	$0-25-0$
$56\text{ mm}$	K56	$0.0005\text{ "}$	$0.25\text{ \"}$	$0-50$
$56\text{ mm}$	K53	$0.0005\text{ "}$	$0.5\text{ \"}$	$0-25-0$
$56\text{ mm}$	K54	$0.0005\text{ "}$	$0.5\text{ \"}$	$0-50$
$56\text{ mm}$	K57	$0.0001\text{ "}$	$1\text{ \"}$	$0-25-0$
$56\text{ mm}$	K58	$0.0001\text{ "}$	$1\text{ \"}$	$0-50$
$56\text{ mm}$	K59	$0.0001\text{ "}$	$0.05\text{ \"}$	$0-50-0$
$56\text{ mm}$	K60	$0.0001\text{ "}$	$0.05\text{ \"}$	$0-100$
$56\text{ mm}$	K61	$0.0001\text{ "}$	$0.2\text{ \"}$	$0-25-0$
$56\text{ mm}$	K62	$0.0001\text{ "}$	$0.2\text{ \"}$	$0-100$
$56\text{ mm}$	K63A	$0.0001\text{ "}$	$0.5\text{ \"}$	$0-50-0$
$56\text{ mm}$	K64A	$0.0001\text{ "}$	$0.5\text{ \"}$	$0-100$
