MITUTOYO-SERIES 1 – COMPACT TYPE, SMALL DIAMETER-DIAL INDICATORS

Name: MITUTOYO-SERIES 1 – COMPACT TYPE, SMALL DIAMETER-DIAL INDICATORS
Brand: MITUTOYO
SKU: 1

Code:

Compact dial indicators with bezel diameters of ø40mm for restricted-space applications in gaging jigs. SPECIFICATIONS Metric * Completed products inspection is performed in the vertical position (contact point downward) and the stated accuracy is guaranteed. Inch * Completed products inspection is performed in the vertical position (contact point downward) and the stated accuracy is guaranteed.

f in

Click to Expand

MITUTOYO-SERIES 1 – COMPACT TYPE, SMALL DIAMETER-DIAL INDICATORS

Product Overview

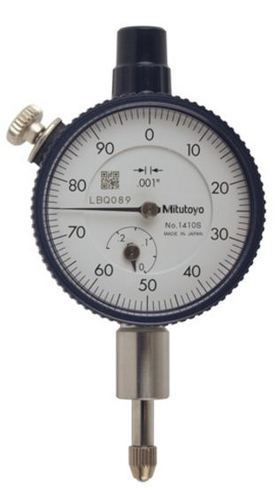

The Mitutoyo Series 1 Compact Type, Small Diameter Dial Indicator features a compact dial design with a bezel diameter of ø40mm, engineered specifically for restricted-space applications in gaging jigs.

Key Features & Capabilities

Compact ø40mm bezel diameter tailored for restricted-space gaging jig applications.
Available in both Metric and Inch measurement configurations.
Completed product inspection is performed in the vertical position (contact point downward) with stated accuracy guaranteed.

Technical Specifications

Metric Specifications

Order No. (w/ lug)	Order No. (Flat-back)	Graduation	Range (range/rev)	Overall Accuracy	Retrace Accuracy	1/10 Rev Accuracy	1 Rev Accuracy	Repeatability	Dial Reading	Measuring Force
1013S-10	1013SB-10	0.002mm	1mm (0.2mm)	6µm	2.5µm	2.5µm	5µm	1µm	0-100-0	1.5N or less
1040S	1040SB	0.01mm	3.5mm (0.5mm)	13µm	4µm	8µm	11µm	3µm	±0-50	1.4N or less
1041S	1041SB	0.01mm	3.5mm (0.5mm)	13µm	4µm	8µm	11µm	3µm	0-25-0	1.4N or less
1044S	1044SB	0.01mm	5mm (1mm)	13µm	4µm	8µm	11µm	3µm	±0-100	1.4N or less
1044S-15	1044SB-15	0.01mm	5mm (1mm)	13µm	4µm	8µm	11µm	3µm	±0-100	0.4N or less*
1044S-60	1044SB-60	0.01mm	5mm (1mm)	13µm	4µm	8µm	11µm	3µm	±0-100	2.0N or less
1045S	1045SB	0.01mm	5mm (1mm)	13µm	4µm	8µm	11µm	3µm	0-50-0	1.4N or less
1109S-10	1109SB-10	0.001mm	1mm (0.2mm)	5µm	2µm	2.5µm	4.5µm	1µm	0-100-0	1.5N or less
1124S	1124SB	0.005mm	3.5mm (0.5mm)	12µm	3.5µm	6µm	10µm	3µm	±0-50	1.4N or less

\(Completed products inspection for 1044S-15 is performed in the vertical position with contact point downward and stated accuracy is guaranteed.)*

Inch Specifications

Order No. (w/ lug)	Order No. (Flat-back)	Graduation	Range (range/rev)	First 1 Rev Accuracy	2.5 Rev Accuracy	Retrace	Repeatability	Dial Reading	Measuring Force
1410S	1410SB	.001"	.25" (.1")	±.001"	±.001"	.0002"	±.0002"	0-100	1.4N or less
1411S	1411SB	.001"	.25" (.1")	±.001"	±.001"	.0002"	±.0002"	0-50-0	1.4N or less
1410S-10	1410SB-10	.001"	.25" (.1")	±.001"	±.001"	.0002"	±.0002"	0-100	1.4N or less
1780S	1780SB	.001"	.125" (.05")	±.001"	±.001"	.0002"	±.0002"	0-50	1.4N or less
1781S	1781SB	.001"	.125" (.05")	±.001"	±.001"	.0002"	±.0002"	0-25-0	1.4N or less
1506S	1506SB	.0005"	.125" (.05")	±.0005"	±.0005"	.00016"	±.0001"	0-50	1.4N or less
1507S	1507SB	.0005"	.125" (.05")	±.0005"	±.0005"	.00016"	±.0001"	0-25-0	1.4N or less
1670S	1670SB	.0005"	.1" (.04")	±.0005"	±.0005"	.00016"	±.0001"	0-40	1.4N or less
1671S	1671SB	.0005"	.1" (.04")	±.0005"	±.0005"	.00016"	±.0001"	0-20-0	1.4N or less
1802S-10	1802SB-10	.0001"	.025" (.01")	±.0001"	±.0001"	.0001"	±.00003"	0-10	1.5N or less
1803S-10	1803SB-10	.0001"	.025" (.01")	±.0001"	±.0001"	.0001"	±.00003"	0-5-0	1.5N or less
