INSIZE PRECISION DIAL INDICATOR (CODE – 2313)

Code:

▪Graduation: 0.001 mm
▪Jeweled bearing
▪Supplied with limit pointers and bezi clamp
▪Optional accessory: backs
▪Switchable high/low frequency measurement mode, high frequency mode is suitable for high speed moving of spindle and has large power consumption, low power consumption in low frequency mode
▪Keep preset data in memory after restart
▪CR2032 battery, automatic power off (time is adjustable)
▪Data output
▪Optional accessory: data output cable code 7315-50M

Click to Expand

INSIZE PRECISION DIAL INDICATOR (CODE – 2313)

Product Overview

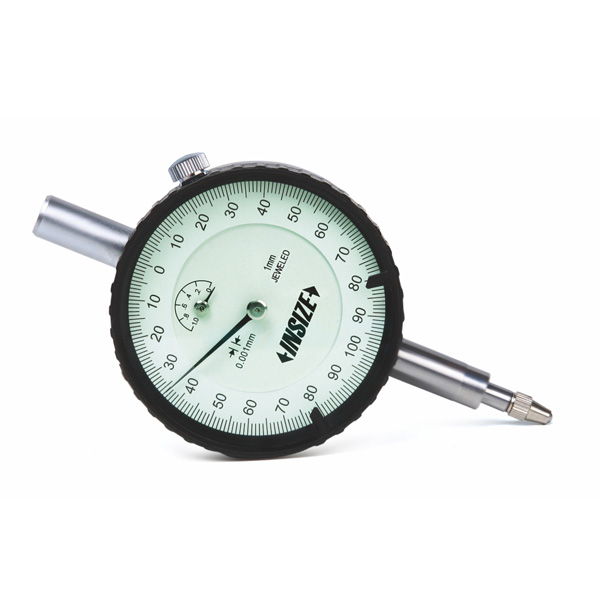

The INSIZE Precision Dial Indicator (Code 2313 series) is a high-precision mechanical measuring instrument designed for accurate dimensional inspection and metrology applications. Available in both flat back and lug back configurations with 1 mm and 2 mm measurement ranges, these indicators feature jeweled bearing construction and a fine 0.001 mm graduation for reliable, repeatable measurements.

Key Features & Capabilities

Graduation: 0.001 mm precision for detailed comparative measurements
Jeweled Bearing: Reduces internal friction for enhanced durability and smooth movement
Included Accessories: Supplied complete with limit pointers and bezel clamp
Optional Accessories: Available with interchangeable backs
Inspection Certificate: Supplied with manufacturer inspection certificate (* indicates certified models)

Technical Specifications

Code	Range	Accuracy	Hysteresis	Range/rev	Dial Reading	Remarks	A (mm)	B (mm)	C (mm)	D (mm)
2313-1FA\*	1 mm	5µm	2µm	0.2 mm	0-100-0	flat back	45	62.5	19.5	15
2313-2FA\*	2 mm	6µm	2.5µm	0.2 mm	0-100-0	flat back	45	62.5	19.5	15
2313-1A\*	1 mm	5µm	2µm	0.2 mm	0-100-0	lug back	45	62.5	19.5	15
2313-2A\*	2 mm	6µm	2.5µm	0.2 mm	0-100-0	lug back	45	62.5	19.5	15
