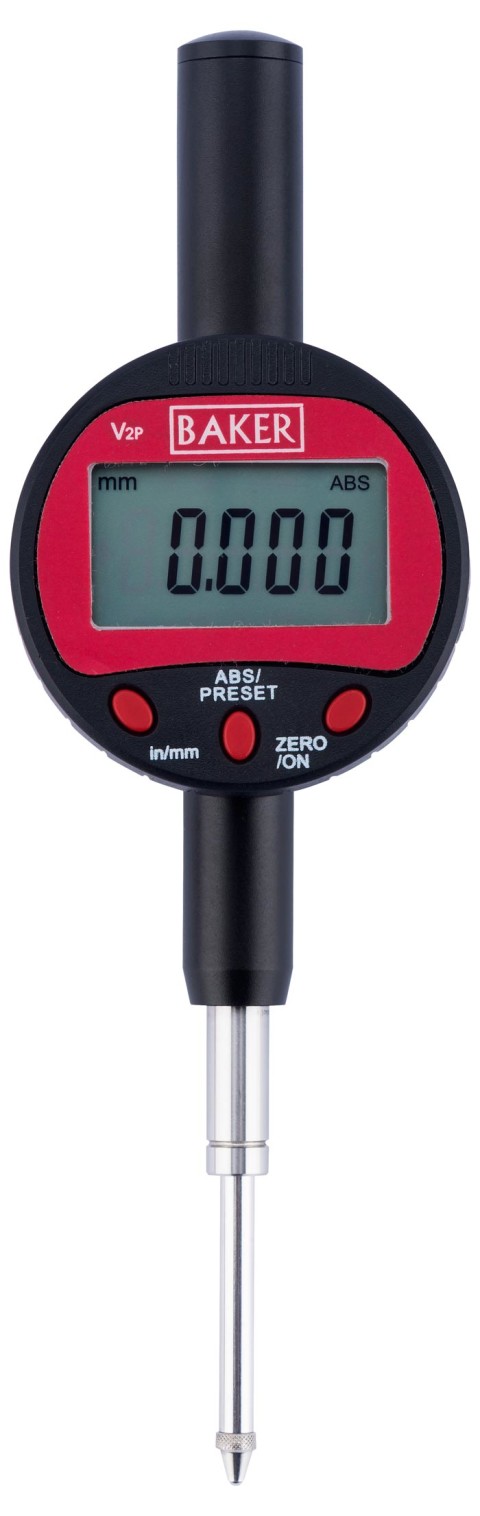

VALUE LINE SERIES
FEATURES:
  • Strong construction
  • Large Digits for better viewing
  • Display Resolution 0.01 mm & 0.0005 Inch
  • Zero setting
  • With Calibration certificate

Useful functions :

  • mm / Inch
  • Preset Reference
  • Manual / Auto power off



digital plunger dial gauge-value_line_01 digital plunger dial gauge-value_line_02 digital plunger dial gauge-value_line_03 digital plunger dial gauge-value_line_04
digital plunger dial gauge-value_line_05 digital plunger dial gauge-value_line_06 digital plunger dial gauge-value_line_08

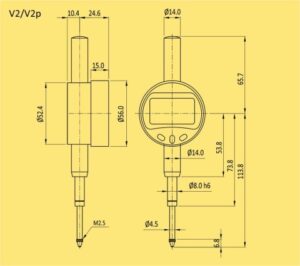

CODE V1 V2 V3
Reading 0.001 mm 0.001 mm 0.001 mm
Reading 0.0005 Inch 0.0005 Inch 0.0005 Inch
Range 0-12.5 mm 0-25 mm 0 – 50mm
Range 0-0.5 Inch 0-1 Inch 0 – 2 Inch
Accuracy 0.02mm 0.02mm 0.02mm
Repeatability ± 0.01 mm ± 0.01 mm ± 0.01 mm
Measuring Force < 1 N < 1.5 N < 2 N
Weight 110g 120g 160g



Check the PDF



WATERPROOF – IP65 SERIES
FEATURES:
  • Accurate Inductive measuring system
  • Inch / Metric capability
  • RS232 output
  • Hardened and ground stainless steel plunger and stem
  • GAUGE can be set to 0.01 mm / 0.0005 Inch, besides the standard 0.001 mm / 0.00005 Inch
  • The Electronic Module is completely sealed against dust and water / coolants / lubricating oils directed towards it from all sides (IP 65)
  • Each GAUGE carries a calibration certificate giving actual values
  • Measuring force 0.5-0.9 N
  • Accuracy 0.005 mm / 0.0002 in
  • Repeatability ± 0.002 mm / 0.0001 in (± 2s)



waterproof-ip65_01 waterproof-ip65_02 waterproof-ip65_03



CODE Reading Range
MD001 0.001 mm/0.00005 in. 0-12.5 mm (0-0.5 in.)



Check the PDF



WATERPROOF – IP67 W SERIES
FEATURES:
  • Rotating display (270 degrees ) with extra large digits for excellent visibility
  • Accurate Inductive measuring system
  • Inch / Metric capability
  • Robust Construction
  • New technology with configurable menus.
  • Broad Choice of Menus (MIN / MAX / DELTA, TOL, Factor, PRESET, AUTO OFF etc.)
  • Automatic wake-up and sleep mode
  • RS232 data output
  • Hardened and ground stainless steel plunger and stem
  • GAUGE can be set to 0.01 mm / 0.0005 Inch, besides the standard 0.001 mm / 0.00005 Inch
  • Each GAUGE carries a calibration certificate giving actual values
waterproof-ip67_01 waterproof-ip67_02 waterproof-ip67_03 waterproof-ip67_04



CODE W1 W2
Reading 0.001 mm 0.001 mm
Reading 0.00005 Inch 0.00005 Inch
Range 0-12.5 mm 0-25 mm
Range 0-0.5 Inch 0-1 Inch
Accuracy 0.003 mm 0.004 mm
Repeatability ± 0.002 mm ± 0.002 mm
Repeatability 0.0001 Inch ( ± 2s) 0.0001 Inch ( ± 2s)
Measuring Force 0.65 – 0.9 N 0.65 – 1.15 N
Weight 90 g 94 g



Check the PDF
