INSIZE BORE GAUGES SET WITH DIAL INDICATOR (CODE – 2824 / 2724)

Name: INSIZE BORE GAUGES SET WITH DIAL INDICATOR (CODE – 2824 / 2724)
Brand: INSIZE
SKU: 2824-S160

Code:

Code Range Indicator Accuracy Repeatability 2828-800A 400-800mm dial indicator range 10mm, graduation 0.01mm code 2308-10FA 0.025mm 0.003mm

DOWNLOAD CATALOG

f in

Click to Expand

INSIZE BORE GAUGES SET WITH DIAL INDICATOR (CODE – 2824 / 2724)

Product Overview

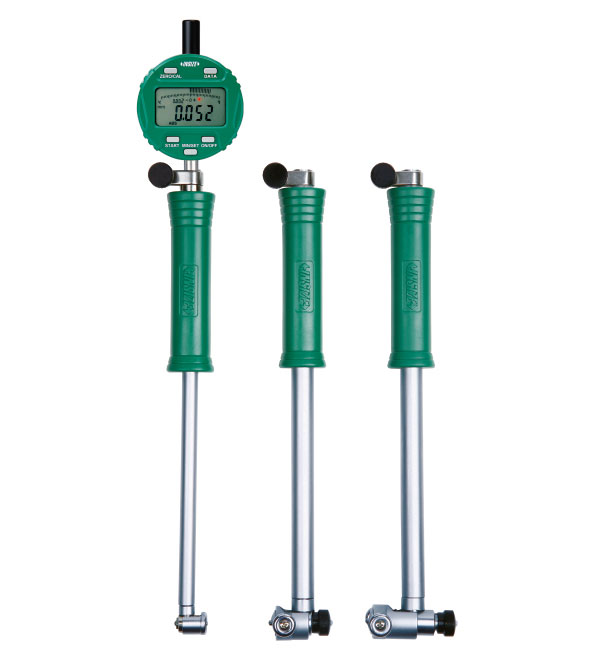

The INSIZE Bore Gauges Set with Dial Indicator (Code – 2824 / 2724) is a high-precision industrial measuring instrument designed for accurate internal diameter measurements. Supplied as a comprehensive set featuring dial indicators and multiple bore gauge attachments, these instruments provide reliable and repeatable dimensional verification across varying ranges from 18mm to 160mm.

Key Features & Capabilities

Dial Indicator Included: Equipped with a dial indicator (code 2308-10FA) featuring a 10mm range and 0.01mm graduation.
Comprehensive Gauge Sets: Includes multiple bore gauge attachments to cover wide measuring ranges (35-160mm for Code 2824-S160 and 18-160mm for Code 2824-S3).
High Repeatability: Delivers consistent and repeatable measurement results with a 0.003mm repeatability threshold.
Optional Accessories Compatibility: Compatible with setting rings (code 6312), long handles (code 7351), and bore gauge setters.

Technical Specifications

Code	Range	Indicator	Bore Gauges Included	Accuracy	Repeatability
2824-S160	35-160mm	Dial indicator, code 2308-10FA, range 10mm, graduation 0.01mm	• 35-50mm (dial indicator and handle are not included)<br>• 50-160mm	35-50mm: ±0.018mm<br>50-160mm: ±0.018mm	0.003mm
2824-S3	18-160mm	Dial indicator, code 2308-10FA, range 10mm, graduation 0.01mm	• 18-35mm<br>• 35-60mm (dial indicator is not included)<br>• 50-160mm (dial indicator is not included)	18-35mm: ±0.015mm<br>35-60mm: ±0.018mm<br>50-160mm: ±0.018mm	0.003mm
