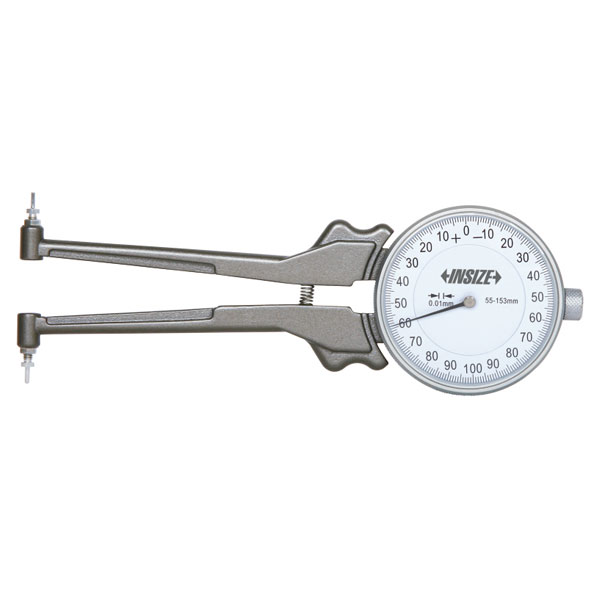

INSIZE INTERNAL DIAL GAGES WITH INTERCHANGEABLE POINTS (CODE – 2223)

Product Overview

The INSIZE Internal Dial Gages with Interchangeable Points (Code 2223) are precision measuring instruments designed for accurate internal dimension measurement. Supplied in three distinct models covering specific ranges, each unit features interchangeable points to accommodate various measuring requirements.

Key Features & Capabilities

Dial indicator range of 2mm
Fine graduation of 0.01mm for precise reading
High accuracy of ±0.02mm
Equipped with interchangeable contact points supplied with each set
Designed with sturdy internal caliper arms and an analog dial indicator

Technical Specifications

Code	Range (mm)	Dial Indicator Range	Graduation	Accuracy	Dimension A (mm)	Dimension L (mm)	Remark
2223-35	20-35mm	2mm	0.01mm	±0.02mm	164mm	<70mm	Supplied with 7 pairs of points
2223-62	30-62mm	2mm	0.01mm	±0.02mm	170mm	<75mm	Supplied with 5 pairs of points
2223-153	55-153mm	2mm	0.01mm	±0.02mm	179mm	<90mm	Supplied with 6 pairs of points
