INSIZE BORE GAGE FOR SMALL HOLES (CODE – 2852/2152)

Name: INSIZE BORE GAGE FOR SMALL HOLES (CODE – 2852/2152)
Brand: INSIZE
SKU: 2852-10

Code:

Optional accessory: setting ring (code 6312) Code Range Indicator Accuracy Repeatability 2852-10 6-10mm dial indicator, range 3mm, graduation 0.01mm (code 2311-3F) 0.012mm 0.003mm 2852-18 10-18.5mm 0.012mm 0.003mm Code Range Indicator Accuracy Repeatability 2852-10 6-10mm dial indicator, range 12.7mm/0.5″, graduation 0.01mm (code 2108-10F) 0.012mm 0.003mm 2852-18 10-18.5mm 0.012mm 0.003mm

DOWNLOAD CATALOG

f in

Click to Expand

INSIZE BORE GAGE FOR SMALL HOLES (CODE – 2852/2152)

Product Overview

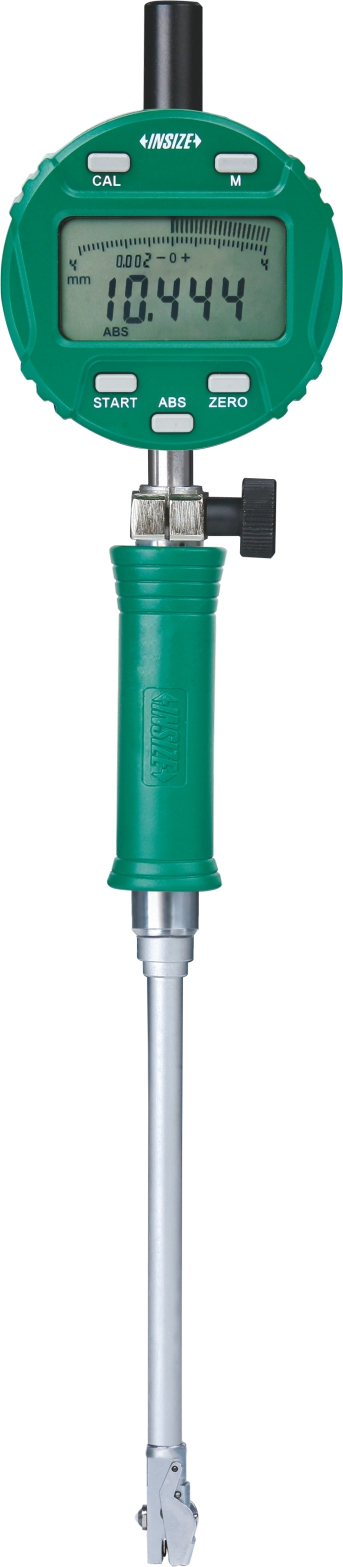

The INSIZE Bore Gage for Small Holes (Series 2852 and 2152) is a precision measuring instrument engineered for accurate internal diameter measurement of small bores. Available with conventional dial indicators, digital indicators, or waterproof digital indicators, this tool covers a total measuring range from 6mm to 18.5mm.

Key Features & Capabilities

Indicator Options: Available with dial indicators, digital indicators (Code 2108-10F), or waterproof digital indicators (Code 2137-10F, IP54 dust/waterproof).
Tracking Function: Digital variants feature a minimum value tracking function to automatically find the diameter.
Data Output: Digital and waterproof digital indicator models support data output via cable (code 7315-51B page 5, 7302-40M page 13, optional).

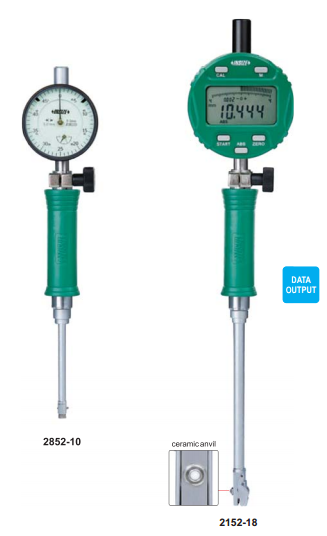

Contact Points: Features steel or ceramic contact points depending on the model configuration (SR0.5/SR1 steel for 6-10mm; SR0.75 steel/ceramic anvil for 10-18.5mm).
Optional Accessories: Setting ring (code 6312) and bore gauge setter.

Technical Specifications

Models with Dial Indicator (Series 2852)

Code	Range	Indicator	Accuracy	Repeatability
2852-10	6-10mm	Dial indicator, range 3mm, graduation 0.01mm (code 2311-3F)	±0.012mm	0.003mm
2852-18	10-18.5mm	Dial indicator, range 3mm, graduation 0.01mm (code 2311-3F)	±0.012mm	0.003mm

Models with Digital Indicator (Series 2152)

Code	Range	Indicator	Accuracy	Repeatability
2152-10	6-10mm	Digital indicator, code 2108-10F, range 12.7mm/0.5″, resolution 0.002mm/0.0001″ (switch to 0.01mm/0.0005″)	±0.012mm	0.003mm
2152-18	10-18.5mm	Digital indicator, code 2108-10F, range 12.7mm/0.5″, resolution 0.002mm/0.0001″ (switch to 0.01mm/0.0005″)	±0.012mm	0.003mm

Models with Waterproof Digital Indicator (Series 2152-WP)

Code	Range	Indicator	Accuracy	Repeatability
2152-10WP	6-10mm	Waterproof digital indicator, code 2137-10F, range 12.7mm/0.5″, dust/waterproof IP54, resolution 0.002mm/0.0001″ (switch to 0.01mm/0.0005″)	±0.012mm	0.003mm
2152-18WP	10-18.5mm	Waterproof digital indicator, code 2137-10F, range 12.7mm/0.5″, dust/waterproof IP54, resolution 0.002mm/0.0001″ (switch to 0.01mm/0.0005″)	±0.012mm	0.003mm
