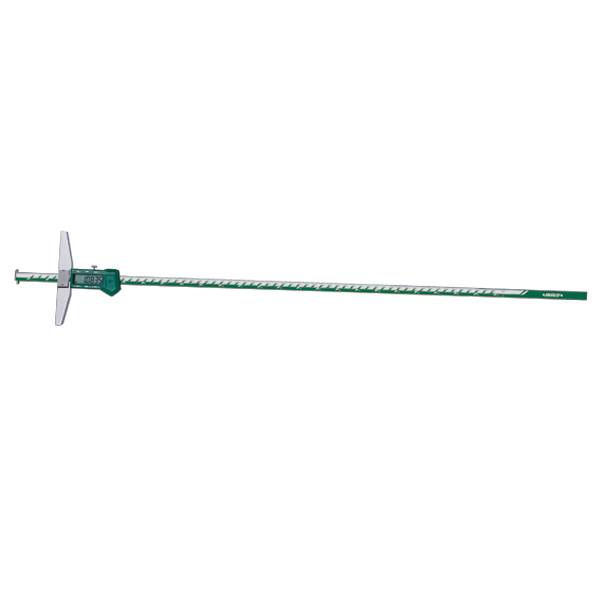

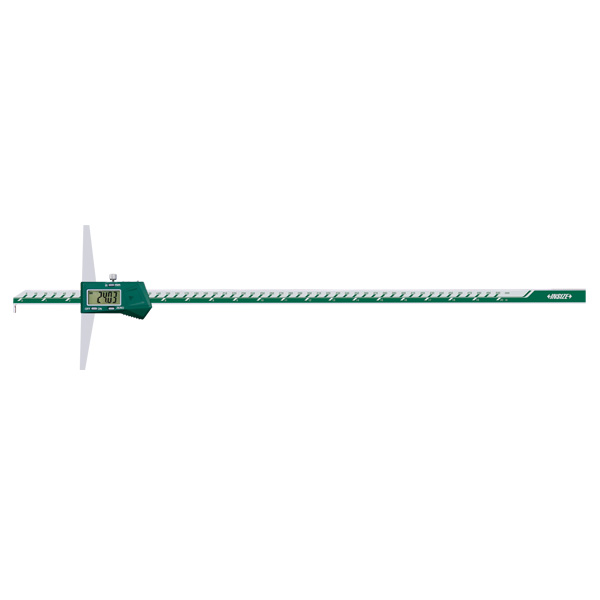

INSIZE DIGITAL HOOK DEPTH GAGES (CODE – 1142)

Non waterproof Resolution: 0.01mm/0.0005" Buttons: on/off, zero, mm/inch Automatic power off,  move the digital unit to turn on power Battery CR2032 Made of stainless steel

With data interface

Code Range Accuracy L (mm) d (mm) a  (mm) b  (mm) c  (mm)
1142-150A 0-150mm/0-6″ ±0.03mm 230 100 5 2 14.5
1142-200A 0-200mm/0-8″ ±0.03mm 280 100 5 2 14.5
1142-300A 0-300mm/0-12″ ±0.04mm 380 150 5 2 14.5
1142-500A 0-500mm/0-20″ ±0.05mm 585 150 8 3 15
1142-5001A 0-500mm/0-20″ ±0.05mm 585 200 8 3 15
1142-1000A 0-1000mm/0-40″ ±0.07mm 1188 150 10 4 18
1142-10001A 0-1000mm/0-40″ ±0.07mm 1188 200 10 4 18
1142-10002A 0-1000mm/0-40″ ±0.07mm 1188 250 10 4 18

Built-in wireless (receiver code 7315-2/3/6/7/8/9 is required)

Code Range Accuracy L (mm) d (mm) a  (mm) b  (mm) c  (mm)
1142-150AWL 0-150mm/0-6″ ±0.03mm 230 100 5 2 14.5
1142-200AWL 0-200mm/0-8″ ±0.03mm 280 100 5 2 14.5
1142-300AWL 0-300mm/0-12″ ±0.04mm 380 150 5 2 14.5
1142-500AWL 0-500mm/0-20″ ±0.05mm 585 150 8 3 15
1142-5001AWL 0-500mm/0-20″ ±0.05mm 585 200 8 3 15

Insize Digital Hook Depth Gages

Insize Digital Hook Depth Gages



  • Non waterproof
  • Resolution: 0.01mm/0.0005″
  • Buttons: on/off, zero, mm/inch
  • Automatic power off,  move the digital unit to turn on power
  • Battery CR2032
  • Made of stainless steel
