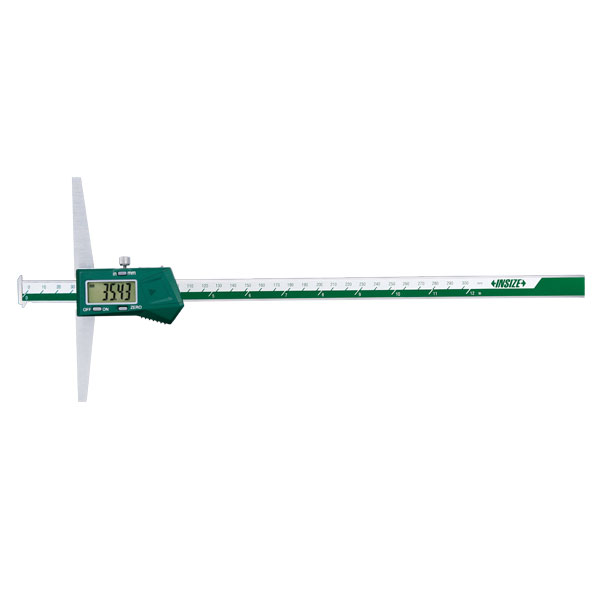

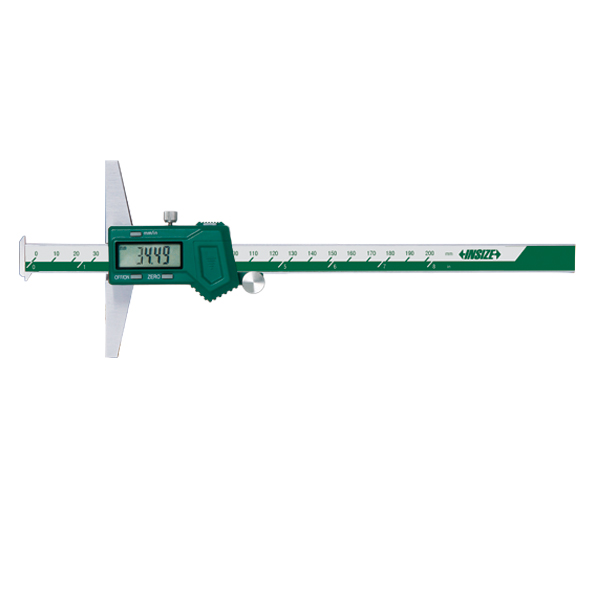

INSIZE DIGITAL DOUBLE HOOK DEPTH GAGES (CODE – 1144)

INSIZE DIGITAL DOUBLE HOOK DEPTH GAGES (CODE – 1144)

Product Overview

The INSIZE Digital Double Hook Depth Gages (Code 1144 series) are precision measuring instruments constructed from durable stainless steel. Designed to meet DIN862 standards, these non-waterproof gauges feature a digital display unit with a resolution of 0.01mm/0.0005″ and offer reliable performance for accurate depth measurement tasks in industrial settings.

Key Features & Capabilities

• Construction: Made of high-grade stainless steel for durability and longevity.
• Resolution: 0.01mm / 0.0005″.
• Control Functions: On/off, zero, and mm/inch conversion buttons.
• Power Management: Automatic power-off function; moving the digital unit automatically turns the power back on.
• Standard Compliance: Meets DIN862 specifications.
• Power Supply: Operates on a CR2032 battery.
• Data Interface Options: Available with data interface output cables or built-in wireless functionality depending on the specific model.

---

Technical Specifications

With Data Interface

Built-in Wireless (Receiver code 7315-2/3/6/7/8/9 is needed)
