INSIZE VERNIER CALIPER (SEPARATE TYPE) (CODE – 1214)

INSIZE VERNIER CALIPER (SEPARATE TYPE) (CODE – 1214)

Product Overview

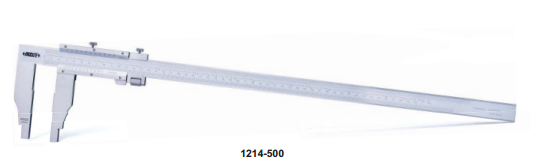

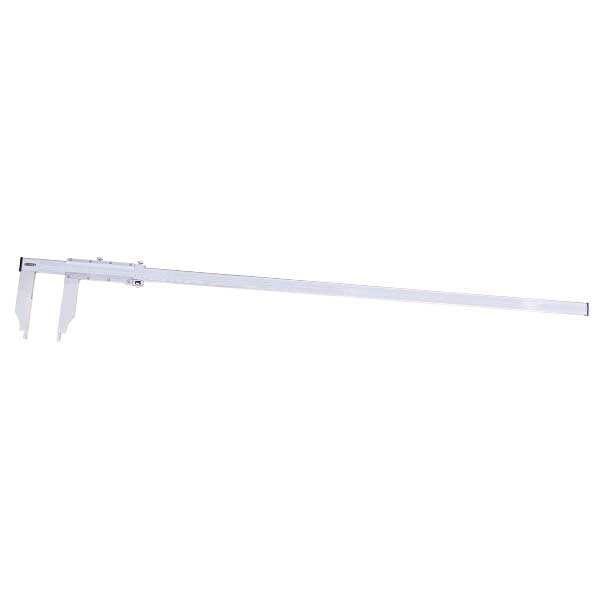

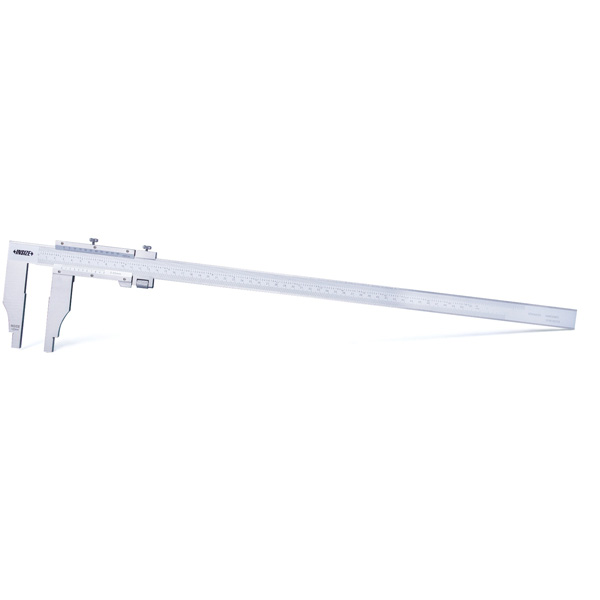

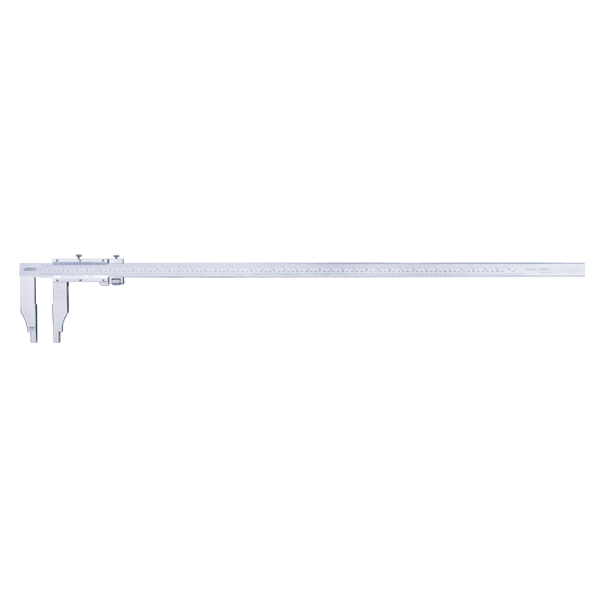

The INSIZE 1214 Series Vernier Caliper (Separate Type) is a high-precision industrial measuring instrument designed for reliable external and internal measurements. Featuring a separate-type construction secured with screws, this caliper is engineered with a fine adjustment mechanism to facilitate precise positioning during measurement.

Key Features & Capabilities

• Fine Adjustment: Equipped with a fine adjustment slider for precise control and accurate measurements.
• Premium Material: Manufactured from high-quality stainless steel for enhanced durability and wear resistance.
• Clear Readability: Features a satin chrome-plated reading surface to reduce glare and improve scale legibility.
• Separate Type Construction: Designed with a separate jaw assembly secured with screws.

Technical Specifications

Dimension Reference Guide

The dimensions listed in the tables below correspond to the following parameters (all dimensions in mm):

• a: Jaw tip length
• c: Beam width
• d: Jaw length
• e: Internal measurement jaw width (when closed)
• L: Total length

---

1. Models with Graduation 0.02mm / 0.001"

---

2. Models with Graduation 0.05mm / 1/128"
