INSIZE EXTERNAL CALIPER GAGES (CODE – 2333)

Product Overview

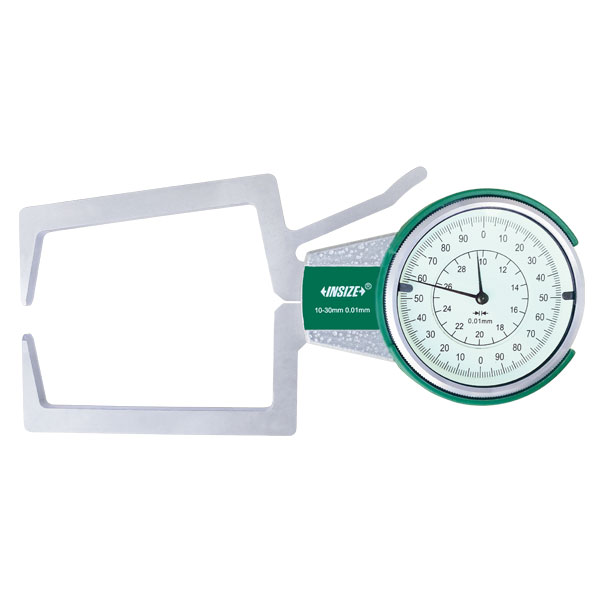

The INSIZE External Caliper Gages (Code 2333) are precision measuring instruments designed for accurate external dimension inspection. Featuring a clear dial indicator, these gages are available in multiple models covering ranges from 0-20mm up to 40-60mm with a graduation of 0.01mm.

Key Features & Capabilities

High-precision external dimension measurement
Consistent graduation of 0.01mm across all models
Uniform accuracy of ±0.03mm
Standardized dimensions with an arm reach (L) of 80mm, height (H) of 25mm, and width (W) of 6.5mm

Technical Specifications

Code	Range	Graduation	Accuracy	L (mm)	H (mm)	W (mm)	R (mm)
2333-201	0-20mm	0.01mm	±0.03mm	80	25	6.5	R0.5
2333-301	10-30mm	0.01mm	±0.03mm	80	25	6.5	R0.5
2333-401	20-40mm	0.01mm	±0.03mm	80	25	6.5	R0.5
2333-501	30-50mm	0.01mm	±0.03mm	80	25	6.5	R0.5
2333-601	40-60mm	0.01mm	±0.03mm	80	25	6.5	R0.5
