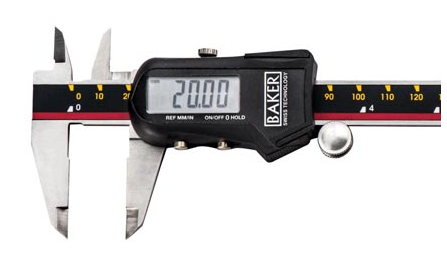

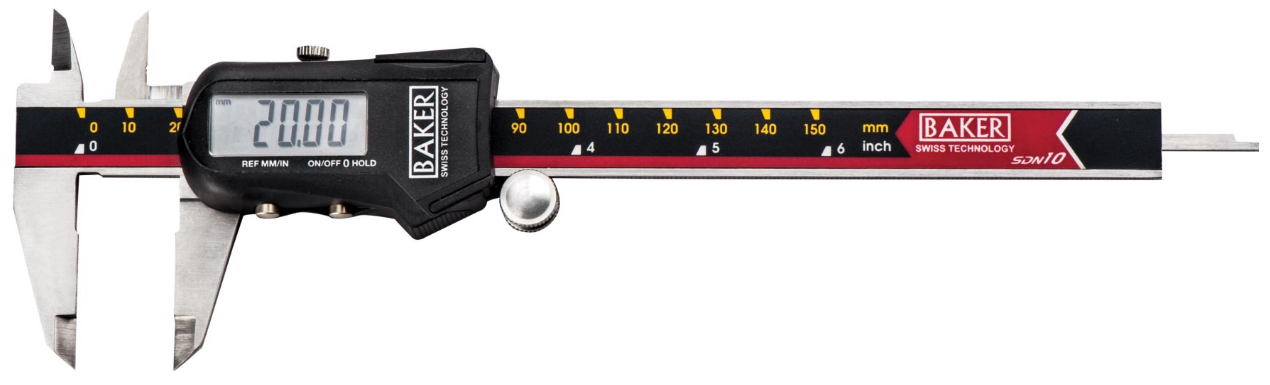

sdn-series_01SDN Series

FEATURES:
  • Every gauge carries a calibration certificate giving actual values
  • Robust, Hardened and Ground stainless steel jaws and beam
  • Accuracy as per DIN 862
  • Attractive shape and elegant design complimented by uncompromising performance
  • 9.6 mm tall, high contrast Liquid Crystal Display significantly augments visibility and minimizes user fatigue
  • All three ranges of calipers are fitted with thumb-roller to improve quality of measurement
  • Easy and quick operation (user friendly)
  • Battery changeover is fast, easy and reliable
  • All three varieties of digital calipers are capable of External, Internal, Step and Depth measurement
  • Display refresh rate greater than 7 / sec
  • Power supply 1 Lithium battery, type CR2032, 3V, 220 mAh
  • Working temperature 5 to 40 °C
  • Max. slider speed 1.5 m/s

sdn-series_02sdn-series_03

Type Reading Range Weight
SDN10 0.01 mm/0.0005″ 0-150 mm /0-6″ 145g
SDN20 0.01 mm/0.0005″ 0-200 mm /0-8″ 170g
SDN30 0.01 mm/0.0005″ 0-300 mm /0-12″ 210g



Check the PDF

large-sdn-series_01

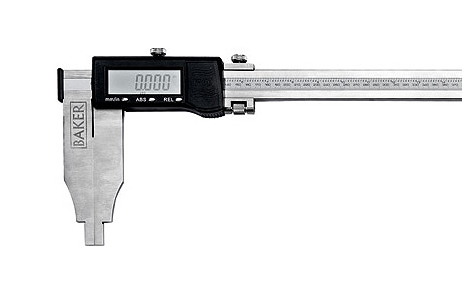

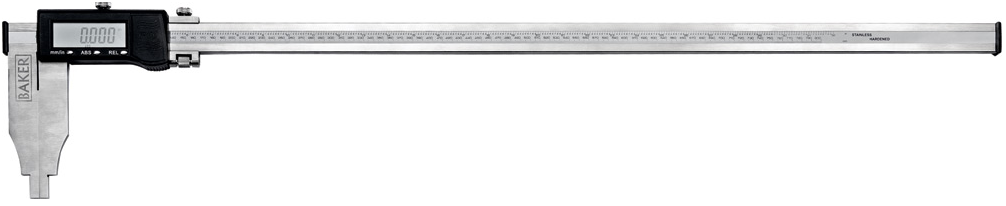

Large SDN Series

FEATURES:
  • Every gauge carries a calibration certificate giving actual values
  • Degree of protection IP66 (according to IEC 60529)
  • High contrast Liquid Crystal Display
  • Ergonomic beam design increases comfort; reduces fatigue
  • Fine adjustment with the lock provided for ease of setting
  • Auto switch-OFF
  • Accuracy as per DIN 862
  • Easy and quick operation (user friendly)
  • Battery changeover is fast, easy and reliable
  • Power supply 1 Lithium battery, type CR2032, 3V, 220 mAh
  • Working temperature 5 to 40 °C

large-sdn-series_02

Type Reading Range
SDN50 0.01 mm/0.0005″ 0-500 mm /0-20″
SDN60 0.01 mm/0.0005″ 0-600 mm /0-24″
SDN80 0.01 mm/0.0005″ 0-800 mm /0-32″
SDN100 0.01 mm/0.0005″ 0-1000 mm /0-40″



Check the PDF





ip-67-water-proof-zd-series_01IP 67 Water Proof ZD Series

FEATURES:
  • Every gauge carries a calibration certificate giving actual values
  • Highest degree of protection to a hand-held instrument of its type, IP67 (according to IEC 60529)
  • Immunity to penetration of liquids or dust
  • Reliability and Accuracy of measuring tool is assured even in the most
  • Hostile workshop environment
  • High contrast Liquid Crystal Display
  • Ergonomic beam design increases comfort; reduces fatigue
  • Latest Smart Inductive System (S.I.S)
  • Automatic stand-by mode
  • Origin securely saved even in stand-by mode
  • Auto switch-on by motion of slider
  • New, Proximity type contactless RS232 data output allows user to store and analyze measurement data in PC or any other digital data storage apparatus
  • Accuracy as per DIN 862
  • Power supply 1 Lithium battery, type CR2032, 3V, 220 mAh
  • Working temperature 5 to 40 °C

ip-67-water-proof-zd-series_02ip-67-water-proof-zd-series_03

Type Reading Range Weight
ZD10 0.01 mm / 0.0005″ 0-150 mm /0-6″ 170g
ZD20 0.01 mm / 0.0005″ 0-200 mm / 0-8″ 195g
ZD30 0.01 mm / 0.0005″ 0-300 mm / 0-12″ 235g



Check the PDF
