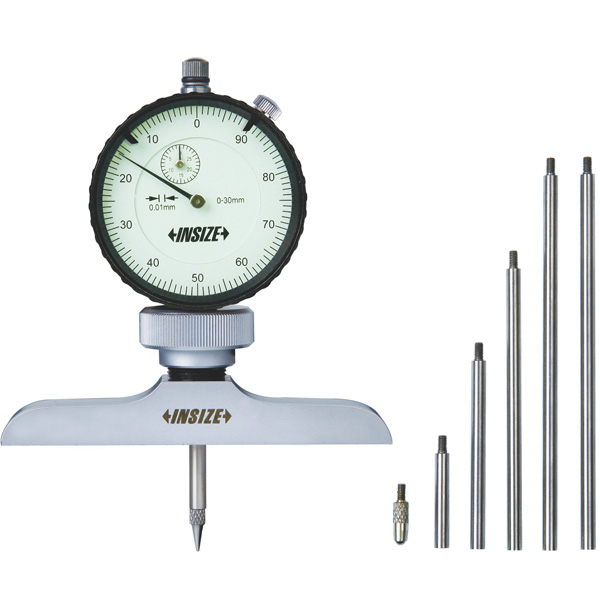

The INSIZE Dial Depth Gages (Code 2342) are precision measuring instruments designed for accurate depth measurement across a 0-300mm range. Built with a durable stainless steel base and an integrated dial indicator with a 0.01mm graduation, this tool is supplied with interchangeable extension rods, a pointed tip, and a ball tip to accommodate diverse measurement requirements.
- Precision Graduation: Features a dial indicator graduation of 0.01mm for high-accuracy readings.

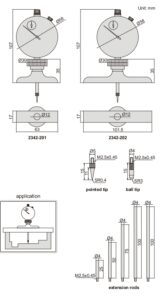

- Stainless Steel Base: Robust, wear-resistant base construction available in 63x17mm (Model 2342-201) and 101.5x17mm (Model 2342-202) dimensions.
- Interchangeable Extension Rods: Includes a complete set of extension rods consisting of 25mm (1 pc), 50mm (1 pc), 75mm (1 pc), and 100mm (2 pcs) to extend the measuring depth up to 300mm.
- Versatile Contact Tips: Supplied with both a pointed tip and a ball tip.
- Optional Accessories: Compatible with the optional granite extension holder (Code 2141-10), which can be customized according to workpieces.
