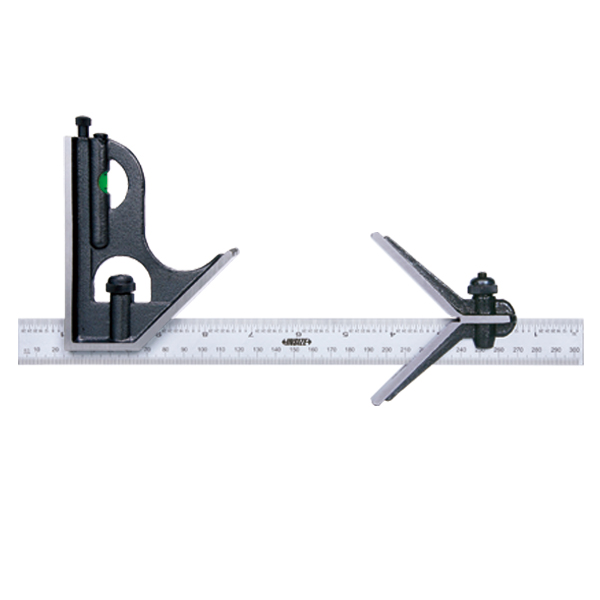

• Center head: To locate center of cylinder with diameter (Ød): 30 – 100mm Accuracy: ±0.15mm
  • Protractor head: To set the blade at desired angle to an edge of a workpiece, and can be used to measure angles Range: 0-180° Accuracy: ±7min.

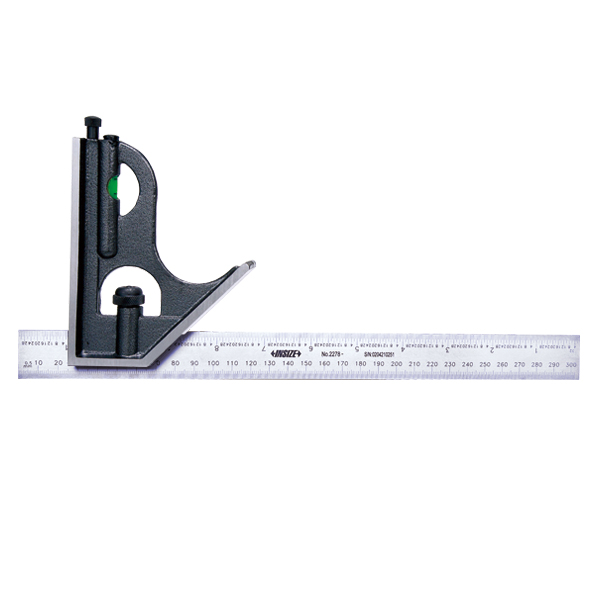

  • Square head: To set the blade at 90° or 45° to an edge of a workpiece Accuracy: ±8min for 90° square, ±10min for 45° square
  • Blade: Range: 300mm/12″, Graduation: 0.5mm and 1/32″ on front face, 1mm and1/64″ on back face
  • Optional accessory: rigid rule (code 7113)
