INSIZE FILLET WELD GAGE (CODE – 4847)

Code:

▪Measure concave and convex weld sizes
▪3 blades are included
▪Made of stainless steel

Click to Expand

INSIZE FILLET WELD GAGE (CODE – 4847)

Product Overview

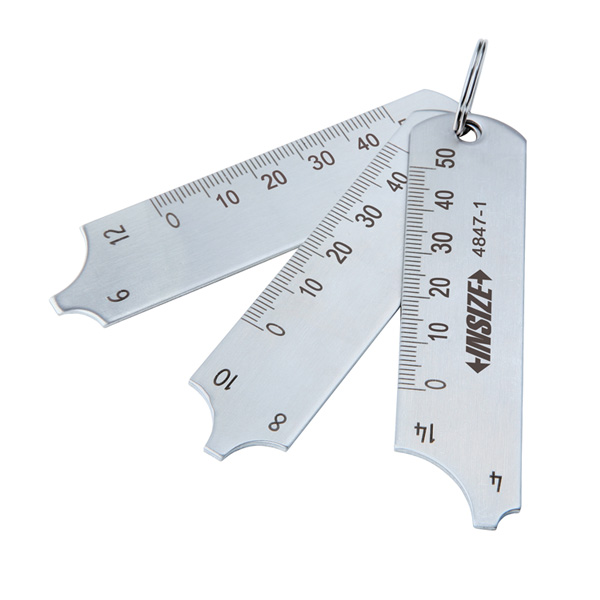

The INSIZE Fillet Weld Gage (Model 4847-1) is a precision measuring instrument designed for quality control and inspection of welded joints. Constructed from durable stainless steel, this multi-blade gage enables operators to accurately measure both concave and convex weld sizes as well as weld length in industrial environments.

Key Features & Capabilities

Dual Weld Measurement: Capable of measuring both concave and convex weld sizes.
Multi-Blade Design: Includes 3 stainless steel blades held together on a convenient retention ring.
Durable Construction: Made entirely of high-quality stainless steel for corrosion resistance and longevity.
Integrated Scale: Features a built-in length measuring scale ranging from 0 to 50mm with 1mm graduations.
