MINI MAGNETIC STAND CODE – 6211

Name: MINI MAGNETIC STAND CODE – 6211
Brand: INSIZE
SKU: 6211

Code:

For dial test indicators With dovetail groove Code Magnetic force Applicable holding stem 6211-10 10kgf Ø6mm, Ø8mm Check the PDF

DOWNLOAD CATALOG

f in

Click to Expand

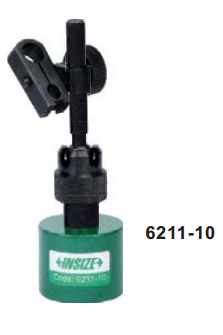

MINI MAGNETIC STAND CODE – 6211

Product Overview

The INSIZE Mini Magnetic Stand (Code: 6211-10) is a precision measuring instrument accessory designed specifically to hold dial test indicators securely. Featuring a compact magnetic base with a holding force of 10kgf and an integrated dovetail groove, this stand provides stable positioning for precise metrology and inspection tasks.

Key Features & Capabilities

Designed specifically for dial test indicators
Integrated dovetail groove for versatile indicator mounting
Compact magnetic base delivering 10kgf of magnetic force
Supports applicable holding stems of Ø6mm and Ø8mm

Technical Specifications

Parameter	Specification
Brand	INSIZE
Product Category	Measuring Instruments > Dial Holding System
Model / Code	6211-10
Magnetic Force	10kgf
Applicable Holding Stem	Ø6mm, Ø8mm
Base Diameter	Ø30 mm
Base Height	25 mm
Total Height (Vertical Dimension)	75 mm (upper post section) / 126 mm to 150 mm total range depending on configuration
Stem Hole Diameters	Ø6 mm, Ø8 mm
