MITUTOYO SERIES 105 OUTSIDE MICROMETER WITH ANVIL EXTENSION COLLARS

Code:

▪Adjustable measuring range with extension collars.
▪50mm/2” spindle stroke
▪Measuring faces: Carbide
▪Equipped with Ratchet Stop for constant measuring force.

Click to Expand

MITUTOYO SERIES 105 OUTSIDE MICROMETER WITH ANVIL EXTENSION COLLARS

Product Overview

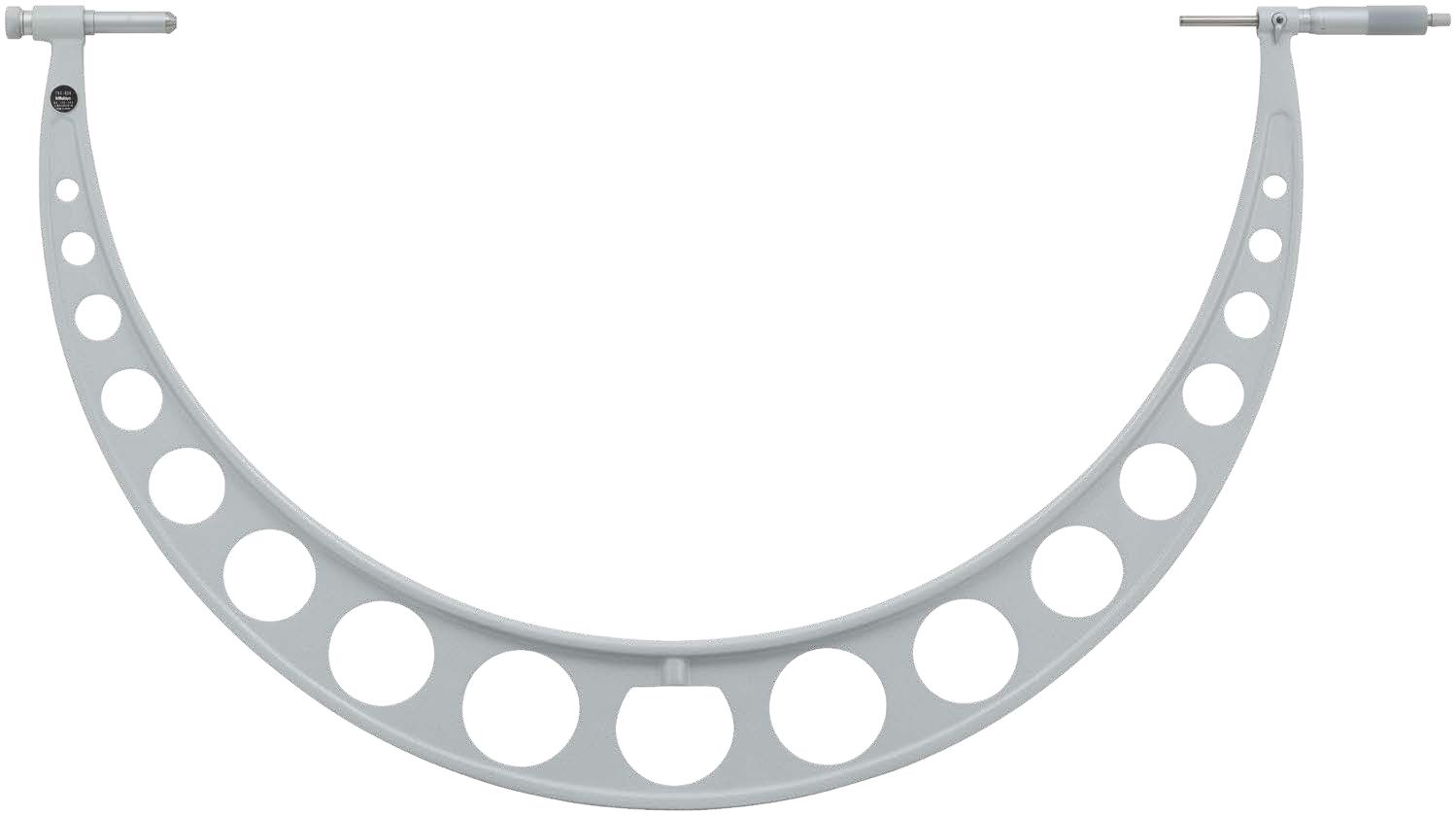

The Mitutoyo Series 105 Outside Micrometer with Anvil Extension Collars provides an adjustable measuring range facilitated by interchangeable extension collars. Designed with a 50 mm / 2 in spindle stroke, these instruments utilize carbide-tipped measuring faces for enhanced durability and are equipped with a Ratchet Stop mechanism to ensure a consistent, repeatable measuring force during operation. Models featuring square and round pipe construction offer a lightweight, rigid frame design along with an included workpiece stopper.

Key Features & Capabilities

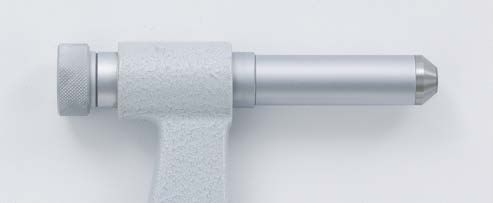

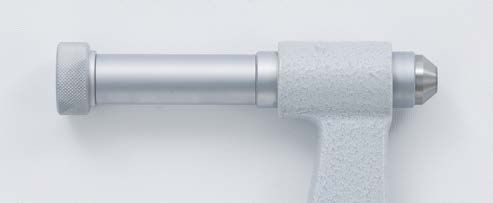

Adjustable measuring range via anvil extension collars
50 mm / 2 in spindle stroke
Measuring faces feature carbide tipping for wear resistance
Equipped with a Ratchet Stop for constant measuring force

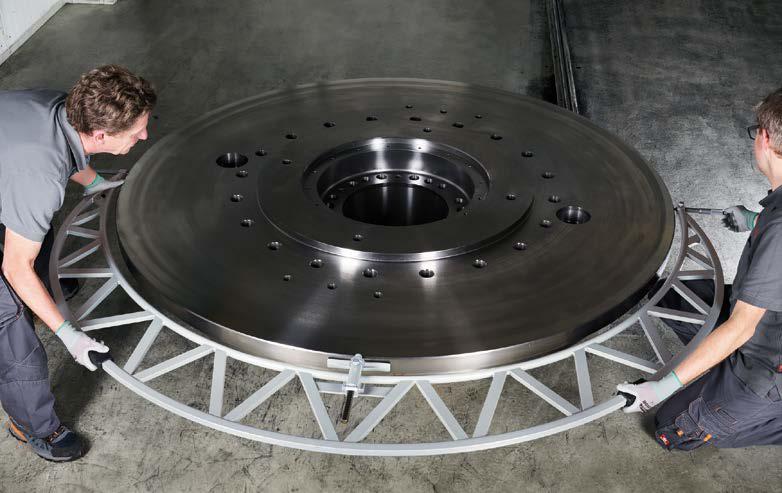

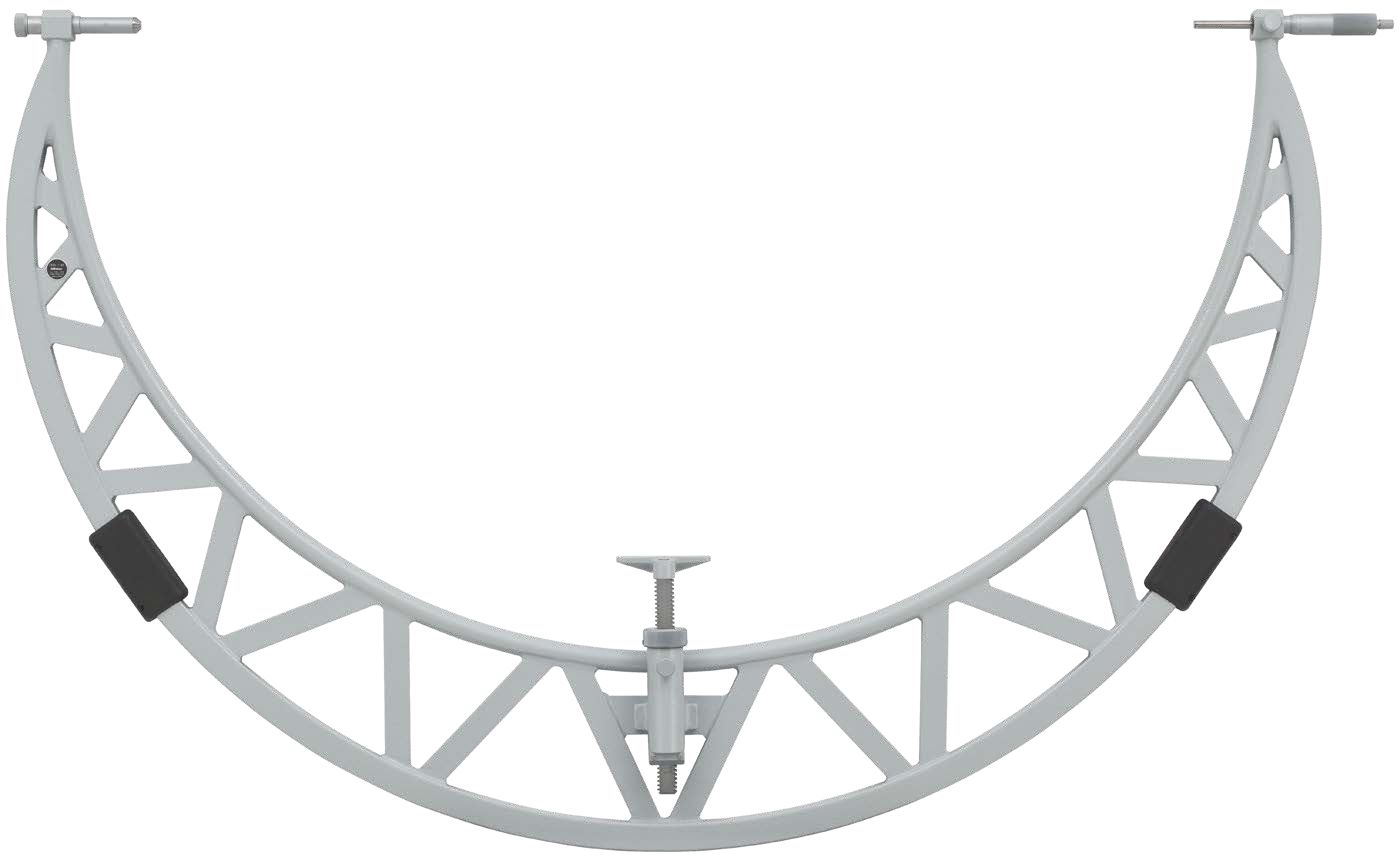

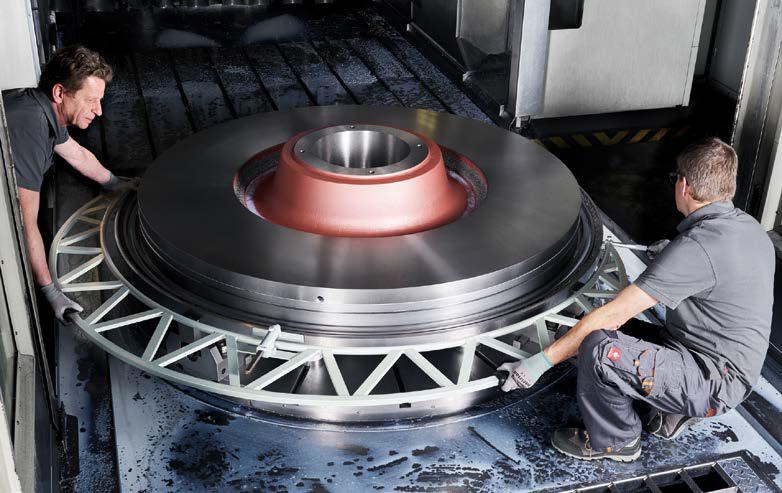

Square and round pipe combination frame for a lightweight and rigid structure (select models)

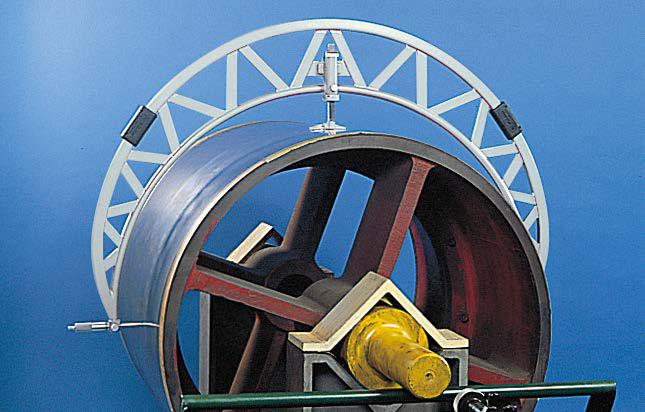

Includes workpiece stopper (select models)

Technical Specifications

Metric (Range: 500 - 1000 mm)

Code No.	Range (mm)	Graduation (mm)	Extension Collars	Setting Standard	Spindle feed error (µm)	Flatness (µm)	Parallelism (µm)
105-103	500 - 600	0.01	1 pc. (50 mm)	2 pcs.	6	1.3	8
105-104	600 - 700	0.01	1 pc. (50 mm)	2 pcs.	6	1.3	9
105-105	700 - 800	0.01	1 pc. (50 mm)	2 pcs.	6	1.3	10
105-106	800 - 900	0.01	1 pc. (50 mm)	2 pcs.	6	1.3	11
105-107	900 - 1000	0.01	1 pc. (50 mm)	2 pcs.	6	1.3	12

Metric (Every 100 mm Range: 1000 - 2000 mm)

Code No.	Range (mm)	Graduation (mm)	Extension Collars	Setting Standard (pcs.)	Spindle feed error (µm)	Flatness (µm)	Parallelism (µm)
105-408	1000 - 1100	0.01	1 pc. (50 mm)	2	6	1.3	13
105-409	1100 - 1200	0.01	1 pc. (50 mm)	2	6	1.3	14
105-410	1200 - 1300	0.01	1 pc. (50 mm)	2	6	1.3	15
105-411	1300 - 1400	0.01	1 pc. (50 mm)	2	6	1.3	16
105-412	1400 - 1500	0.01	1 pc. (50 mm)	2	6	1.3	17
105-413	1500 - 1600	0.01	1 pc. (50 mm)	2	6	1.3	18
105-414	1600 - 1700	0.01	1 pc. (50 mm)	2	6	1.3	19
105-415	1700 - 1800	0.01	1 pc. (50 mm)	2	6	1.3	20
105-416	1800 - 1900	0.01	1 pc. (50 mm)	2	6	1.3	21
105-417	1900 - 2000	0.01	1 pc. (50 mm)	2	6	1.3	22

Metric (Every 200 mm Range: 1000 - 2000 mm)

Code No.	Range (mm)	Graduation (mm)	Extension Collars	Setting Standard (pcs.)	Spindle feed error (µm)	Flatness (µm)	Parallelism (µm)
105-418	1000 - 1200	0.01	2 pcs. (50 mm, 100 mm)	4 (every 50 mm)	6	1.3	14
105-419	1200 - 1400	0.01	2 pcs. (50 mm, 100 mm)	4 (every 50 mm)	6	1.3	16
105-420	1400 - 1600	0.01	2 pcs. (50 mm, 100 mm)	4 (every 50 mm)	6	1.3	18
105-421	1600 - 1800	0.01	2 pcs. (50 mm, 100 mm)	4 (every 50 mm)	6	1.3	20
105-422	1800 - 2000	0.01	2 pcs. (50 mm, 100 mm)	4 (every 50 mm)	6	1.3	22

Inch

Code No.	Range (in)	Graduation (in)	Extension Collars	Setting Standard (pcs.)	Spindle feed error (in)	Flatness (in)	Parallelism (in)
105-428	40 - 44	0.001	1 pc. (2 in)	2	0.0003	0.000052	0.00052
105-429	44 - 48	0.001	1 pc. (2 in)	2	0.0003	0.000052	0.00056
105-430	48 - 52	0.001	1 pc. (2 in)	2	0.0003	0.000052	0.00060
105-431	52 - 56	0.001	1 pc. (2 in)	2	0.0003	0.000052	0.00064
105-432	56 - 60	0.001	1 pc. (2 in)	2	0.0003	0.000052	0.00068
105-433	60 - 64	0.001	1 pc. (2 in)	2	0.0003	0.000052	0.00072
105-434	64 - 68	0.001	1 pc. (2 in)	2	0.0003	0.000052	0.00076
105-435	68 - 72	0.001	1 pc. (2 in)	2	0.0003	0.000052	0.00080
105-436	72 - 76	0.001	1 pc. (2 in)	2	0.0003	0.000052	0.00084
105-437	76 - 80	0.001	1 pc. (2 in)	2	0.0003	0.000052	0.00088
