MITUTOYO-SERIES 152 – QUICK SPINDLE FEED OF 1MM/REV-MICROMETER HEADS

Name: MITUTOYO-SERIES 152 – QUICK SPINDLE FEED OF 1MM/REV-MICROMETER HEADS
Brand: MITUTOYO
SKU: 152-101

Code:

Quick spindle feed of 1mm/rev. DIMENSIONS SPECIFICATIONS Metric Order No. Range Graduation Accuracy Stem dia. Stem Spindle end Spindle pitch 152-101 0 – 15mm 0.01mm ±2µm 12mm Plain Flat (carbide tip) 1mm 152-102 0 – 25mm 152-103 0 – 50mm ±4µm

f in

Click to Expand

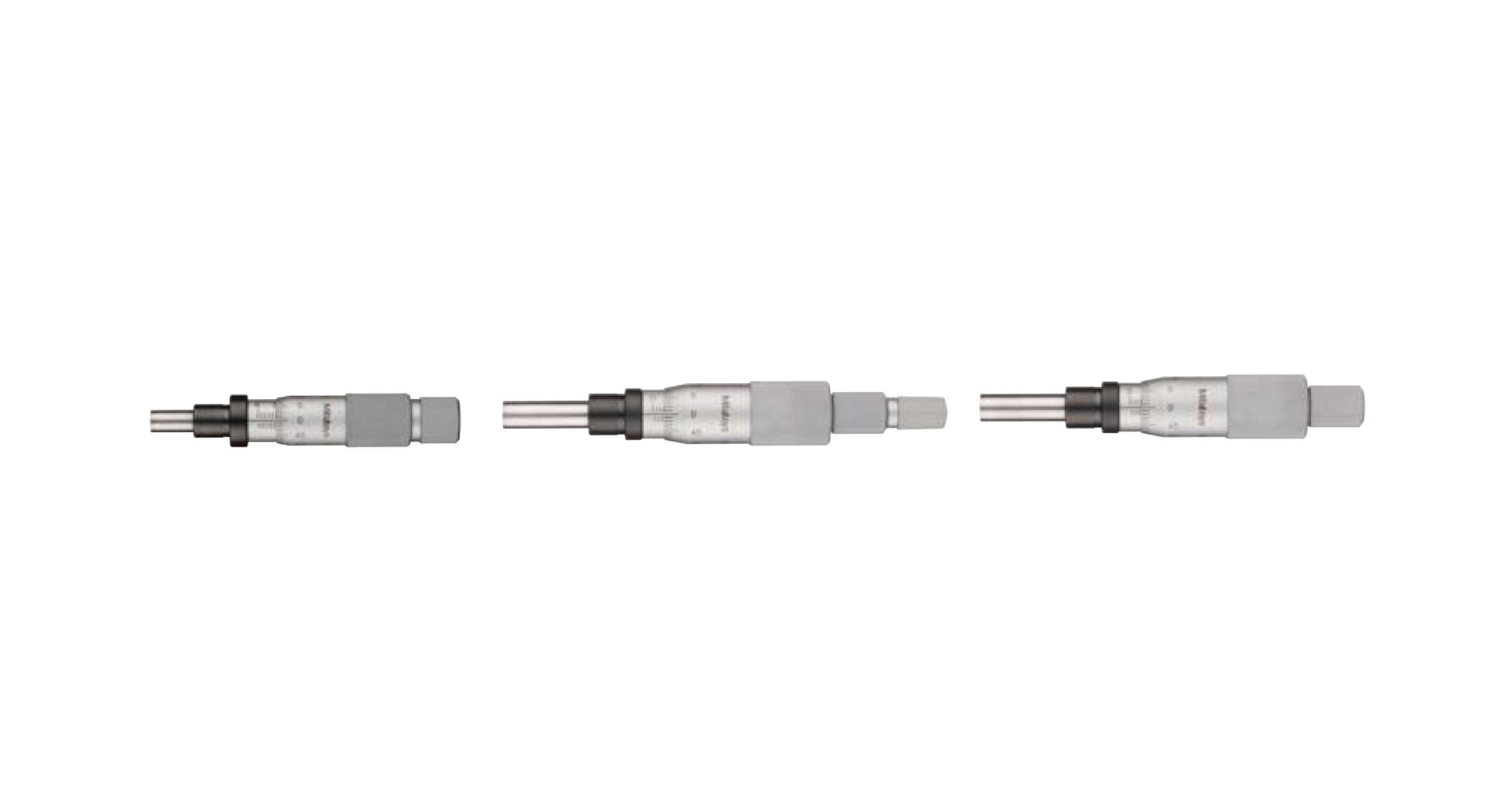

MITUTOYO-SERIES 152 – QUICK SPINDLE FEED OF 1MM/REV-MICROMETER HEADS

Product Overview

The Mitutoyo Series 152 Micrometer Heads feature a quick spindle feed mechanism of 1mm per revolution for rapid positioning. Designed for precise integration into machinery, jigs, and measuring instruments, these metric micrometer heads are equipped with a plain 12mm stem and a durable carbide-tipped flat spindle end.

Key Features & Capabilities

Quick spindle feed mechanism providing 1mm of travel per revolution.
Flat spindle end featuring a durable carbide tip.
Plain 12mm stem diameter for standard mounting configurations.
Metric graduation of 0.01mm across all available models.

Technical Specifications

Order No.	Range	Graduation	Accuracy	Stem dia.	Stem	Spindle end	Spindle pitch
152-101	0 – 15mm	0.01mm	±2µm	12mm	Plain	Flat (carbide tip)	1mm
152-102	0 – 25mm	0.01mm	±2µm	12mm	Plain	Flat (carbide tip)	1mm
152-103	0 – 50mm	0.01mm	±4µm	12mm	Plain	Flat (carbide tip)	1mm
