INSIZE DIGITAL CALIPER (CODE – 1136)

Code:

▪Non waterproof
▪Resolutions: 0.01mm/0.0005*
▪Buttons : zero, mm/inch, on/off, ABS, data preset
▪Battery CR2032
▪Data Output
▪Made of stainless steel
▪Optional accesory: data output system (code 7306-20/20B, 7302-SPC1A/SPC1B, 7305-SPC2)

Click to Expand

INSIZE DIGITAL CALIPER (CODE – 1136)

Product Overview

The INSIZE Digital Caliper (Code 1136 series) is a precision measuring instrument constructed from durable stainless steel. Available in standard models with a data interface and advanced models with built-in wireless functionality, this non-waterproof caliper is designed for accurate dimensional metrology across various industrial applications.

Key Features & Capabilities

Construction: Made of high-grade stainless steel for durability and corrosion resistance.
Resolution: 0.01mm / 0.0005"
Functional Buttons: On/off, zero, mm/inch, ABS (absolute/incremental measurement), and data preset.
Power Supply: CR2032 battery.
Data Transmission Options:
Standard models include a data interface (compatible with optional data output cables 7315-22 and 7302-22).
Built-in wireless models require a receiver (code 7315-2/3/6/7/8/9).

---

Technical Specifications

Standard Models (With Data Interface)

Code	Range	Accuracy	a (mm)	b (mm)	c (mm)	d (mm)	L (mm)

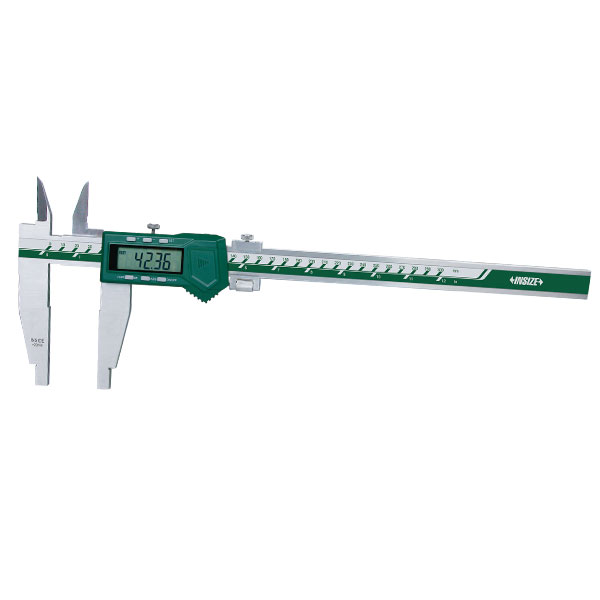

1136-301	0-300mm / 0-12"	±0.05mm	18	45	24	100	420

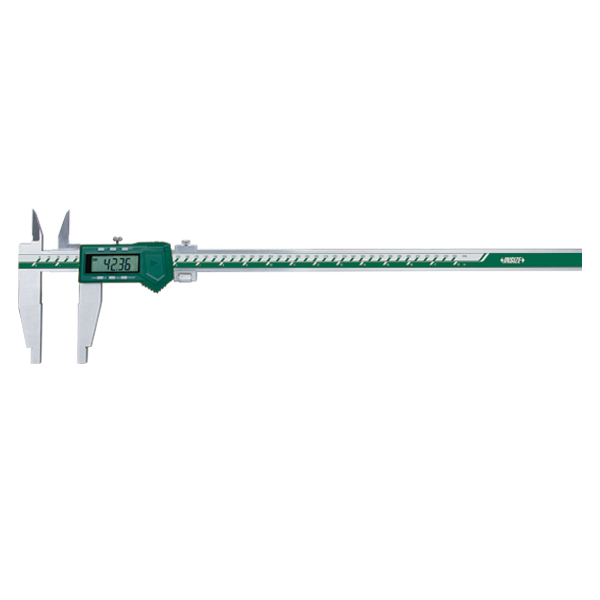

1136-451	0-450mm / 0-18"	±0.05mm	18	45	24	100	625

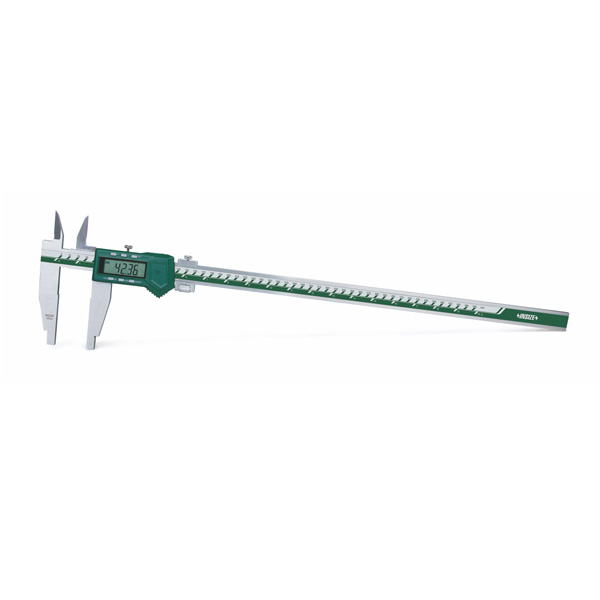

1136-501	0-500mm / 0-20"	±0.05mm	18	45	24	100	675
1136-502	0-500mm / 0-20"	±0.06mm	18	45	24	150	675
1136-503	0-500mm / 0-20"	±0.06mm	24	60	31	200	675
1136-601	0-600mm / 0-24"	±0.06mm	18	45	24	100	770
1136-1002	0-1000mm / 0-40"	±0.08mm	24	60	31	150	1220
1136-1502	0-1500mm / 0-60"	±0.11mm	24	60	42	150	1780
1136-2002	0-2000mm / 0-80"	±0.14mm	24	60	42	150	2290

Built-in Wireless Models (Receiver code 7315-2/3/6/7/8/9 required)

Code	Range	Accuracy	a (mm)	b (mm)	c (mm)	d (mm)	L (mm)
1136-301WL	0-300mm / 0-12"	±0.05mm	18	45	24	100	420
1136-451WL	0-450mm / 0-18"	±0.05mm	18	45	24	100	625
1136-501WL	0-500mm / 0-20"	±0.05mm	18	45	24	100	675
1136-502WL	0-500mm / 0-20"	±0.06mm	18	45	24	150	675
1136-601WL	0-600mm / 0-24"	±0.05mm	18	45	24	100	770
