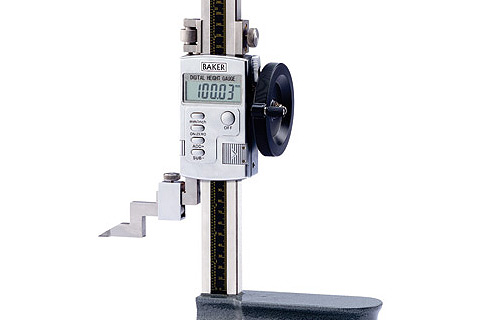

BAKER DOUBLE COLUMN DIGITAL HEIGHT GAUGE (DCDH SERIES)

Code:

▪Rigid height gauge base
▪Scriber with carbide tip & protection cap
▪P+ & P- buttons used to preset any value at any height.
▪With calibration certiﬁcate traceable to National Standard.

Click to Expand

BAKER DOUBLE COLUMN DIGITAL HEIGHT GAUGE (DCDH SERIES)

Product Overview

The Baker Double Column Digital Height Gauge (DCDH Series) is a high-precision industrial measuring instrument designed for accurate vertical dimension inspection. Featuring a rigid height gauge base and a dual-column structure, this instrument includes a carbide-tipped scriber with a protection cap and is supplied with a calibration certificate traceable to National Standards. Available in two models (DCDH 300 and DCDH 600) to suit varying vertical measurement requirements.

Key Features & Capabilities

Rigid Base: Solid height gauge base ensures stability and precision during measurements.
Carbide Scriber: Equipped with a scriber featuring a carbide tip and protection cap for durability and wear resistance.
Preset Facility: Includes P+ and P- buttons to preset any desired value at any height position.
Adjustable Zero Reference Point: Zero can be set at any position along the height scale.
Traceable Calibration: Shipped with a calibration certificate traceable to National Standards.

Technical Specifications

Parameter	DCDH 300	DCDH 600
Range of Height Gauge	0-300 mm / 0-12"	0-600 mm / 0-24"
Least Count	0.01 mm / 0.0005"	0.01 mm / 0.0005"
Accuracy	±0.040 mm	±0.050 mm
Battery	1.5V SR44	1.5V SR44
Height Gauge Base	Rigid	Rigid
Adjustable Zero Reference Point	Can be set at any position (Height)	Can be set at any position (Height)
Scriber	Scriber with carbide tip and protection cap	Scriber with carbide tip and protection cap
Preset Facility	P+ & P- buttons used to preset any value at any height	P+ & P- buttons used to preset any value at any height
Calibration	With calibration certificate traceable to National Standard	With calibration certificate traceable to National Standard
