Mitutoyo-SERIES 570 - with ABSOLUTE Linear Encoder-ABSOLUTE Digimatic Height Gage

MITUTOYO-SERIES 570 – WITH ABSOLUTE LINEAR ENCODER-ABSOLUTE DIGIMATIC HEIGHT GAGE

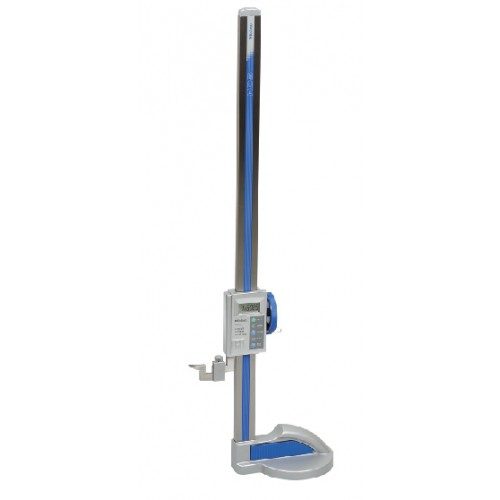

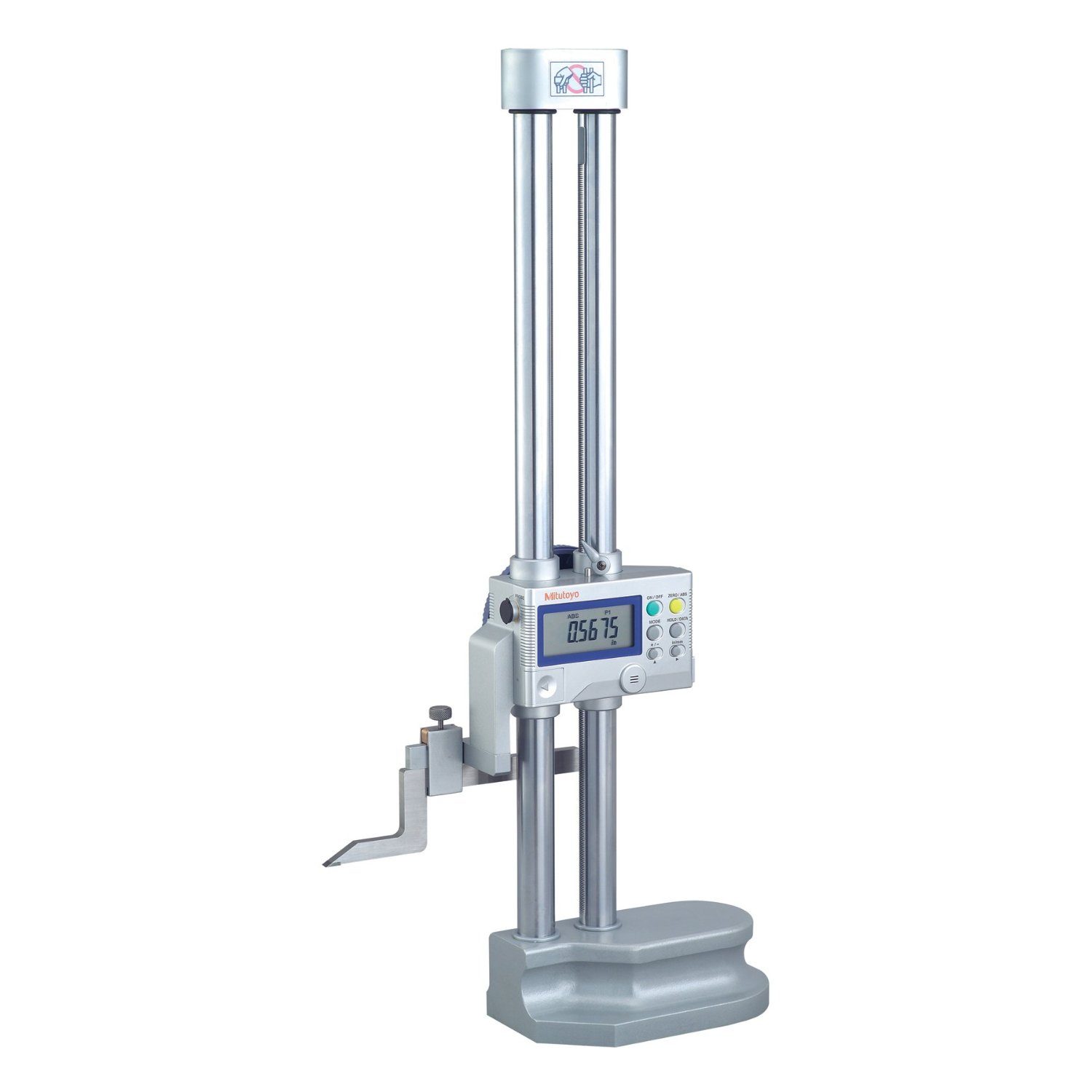

Allows smooth elevation by the slider adjustment wheel, which is the same as the well-established double-column structure height gage. Large slider-clamp lever ensures positive and accurate clamping action. High durability and high accuracy are ensured by an improved column design (35x15mm). Character height of the LCD display is 10mm. Ergonomic and stylish base fits comfortably

SPECIFICATIONS
Metric

Order No.	Range	Resolution	Accuracy*	Repeatability	Max. response speed	Mass
570-302	0 – 300mm	0.01mm	±0.03mm	0.01mm	Unlimited	4.6kg
570-304	0 – 600mm	0.01mm	±0.05mm	0.01mm	Unlimited	6.4kg

* Excluding quantizing error

Inch/Metric

Order No.	Range	Resolution	Accuracy*	Repeatability	Max. response speed	Mass
570-312	0 – 12″	.0005″/0.01mm	±.0015″	0.01mm	Unlimited	4.6kg
570-313	0 – 18″	±.002″	5.9kg
570-314	0 – 24″	±.002″	6.4kg

Order No.

Range

Resolution

Accuracy*

Repeatability

Max. response speed

Mass

570-312

0 – 12″

.0005″/0.01mm

±.0015″

0.01mm

Unlimited

4.6kg

570-313

0 – 18″

±.002″

5.9kg

570-314

0 – 24″

±.002″

6.4kg

* Excluding quantizing error

Digimatic Height Gage

DIMENSIONS

( ): No. 570-304

Digimatic Height Gage

Functions

Origin-setting:
Any convenient reference surface, such as a surface plate, etc., can be stored as the absolute origin point.

Absolute measurement:
After power is turned ON, measurement can be started without zero-setting if origin-setting was previously performed. Absolute origin position can be changed by ORIGIN button.

Incremental measurement:
Allows origin setting at any arbitrary position. In this case, the origin point is not stored after turning off the power.

Data hold
Display value can be held.

Data output:
Allows integration into statistical process control and measurement systems. (Refer to page A-3.)

Low-voltage alert:
Low-voltage alert: If the battery voltage becomes low, a “B” appears in the display to alert the user before measurement is no longer possible so that the battery can be changed in good time.

Standard accessories
For 570-302, 304
No.07GZA000 Scriber
No.05GZA033 Scriber clamp
For 570-312 and 570-313, 570-314
No.900258 Scriber
No.901385 Scriber clamp

Digimatic Height Gage

Optional accessories
For details, refer to page D-39. Connecting cables for IT/DP/MUX
905338: SPC cable with data button (1m) 905409: SPC cable with data button (2m)
USB Input Tool Direct
06ADV380F: SPC cable for USB-ITN-F (2m)
Connecting cables for U-WAVE-T
02AZD790F: SPC cable for U-WAVE with data button (160mm)
02AZE140F: SPC cable for footswitch

Allows smooth elevation by the slider adjustment wheel, which is the same as the
well-established double-column structure height gage.
Large slider-clamp lever ensures positive and accurate clamping action.
High durability and high accuracy are ensured by an improved column design (35x15mm).
Character height of the LCD display is 10mm.
Ergonomic and stylish base fits comfortably in the hand.
Due to the built-in ABSOLUTE scale function, origin setting is not required each time power is turned ON.
Allows integration into statistical process control and measurement systems.
Refer to page A-3.
Battery: SR44 (1 pc), 938882. For initial operational checks (standard accessory)
Battery life is 20,000 hours under normal use• For precision Black Granite Surface Plates, refer to page E-51.
