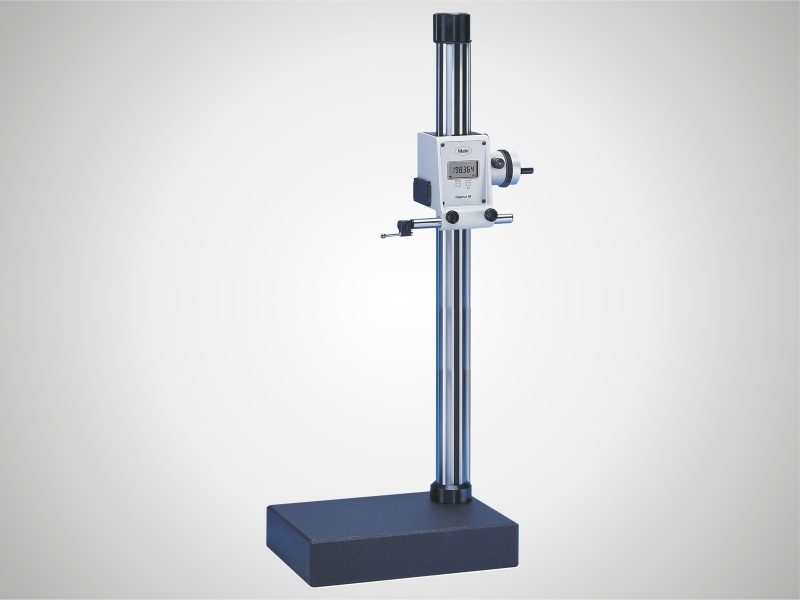

The Mahr Digimar 814 N and 814 G are high-accuracy height measuring and scribing instruments designed for precise industrial measurement. These units feature an incremental inductive measuring system and a measuring head equipped with a ball bush guide to ensure resistance-free operation. The integrated measuring and display unit provides a large, easy-to-read digital interface, with data transmission capabilities via an Opto RS232 C interface.
- High-Precision Measurement: Utilizes an incremental inductive measuring system for reliable accuracy.
- Smooth Operation: Measuring head features a ball bush guide for a resistance-free measuring experience.
- User-Friendly Interface: Large, easy-to-read digital display with integrated measuring and display unit.
- Data Connectivity: Equipped with an Opto RS232 C interface for efficient data transmission.
- Operational Versatility:
- Digital preset and zero setting in any position.
- MAX, MIN, and MAX-MIN functions for testing flatness and concentricity.
- TIR (Total Indicator Reading) functionality.
- Tolerance limit (TOL) entry for one characteristic.
- Selectable resolution and mm/inch switching.
- Mechanical Adjustments: Includes a hand crank on the side of the measuring head for easy operation, fine adjustment, and a locking mechanism for scribing tasks.
- Power: Battery-operated for independent power source usage.
Digimar 814 N Series
Digimar 814 G Series
Standard Functions (All Models)
- ON/OFF
- RESET (set display to zero)
- mm/inch selection
- PRESET (for entering a numerical value)
- MAX/MIN memory (for searching the reversal point)
- TIR (MAX-MIN) for testing flatness and concentricity
- TOL (enter tolerance limit values)
- Selectable resolution
- DATA (data transmission)
