PH HOLDERS FAB

Product Overview

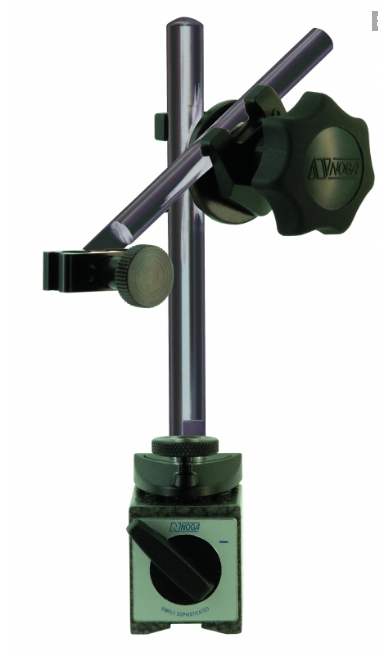

The NOGA PH Holders FAB series features economical holders equipped with NOGA's unique single-direction fine adjustment at the base. Designed for precise positioning of dial and test indicators, these units combine a powerful on/off magnetic base with a robust 3-point clamp arm-locking system.

Key Features & Capabilities

Single-direction fine adjustment located at the base.
Powerful on/off magnetic base for secure placement.
Universal swivel clamp compatible with all dial and test indicators.
Versatile clamping capacity: holds 6mm, 8mm, 3/8", dovetail, and back lug.
Strong arm lock utilizing a 3-point clamp system.
Black finished arms for durability and wear resistance.
Designed for easy setup of gauges into required positions.

Technical Specifications

Holder Model / Order no.	Weight [Kg]	Post Dia. (D1) x Length (L1)	Arm Dia. (D2) x Length (L2)	Magnet Force [N]	Magnet Width (W)	Magnet Length (L)	Magnet Height (H)	3 Points Clamp Order no.	Universal Swivel Clamp Order no.
PH3100	0.500	ø 10 x 120 mm	ø 8 x 110 mm	320	30 mm	40 mm	35 mm	PH0315	FA1210
PH2040	1.700	ø 14 x 203 mm	ø 12 x 185 mm	800	50 mm	60 mm	55 mm	PH0310	FA1410
PH4016	2.450	ø 16 x 260 mm	ø 16 x 225 mm	1000	50 mm	70 mm	55 mm	PH0312	FA1410
