INSIZE RADIUS GAGE (CODE – 4802)

Name: INSIZE RADIUS GAGE (CODE – 4802)
Brand: INSIZE
SKU: 4802-31

Code:

Made of stainless steel

DOWNLOAD CATALOG

f in

Click to Expand

INSIZE RADIUS GAGE (CODE – 4802)

Product Overview

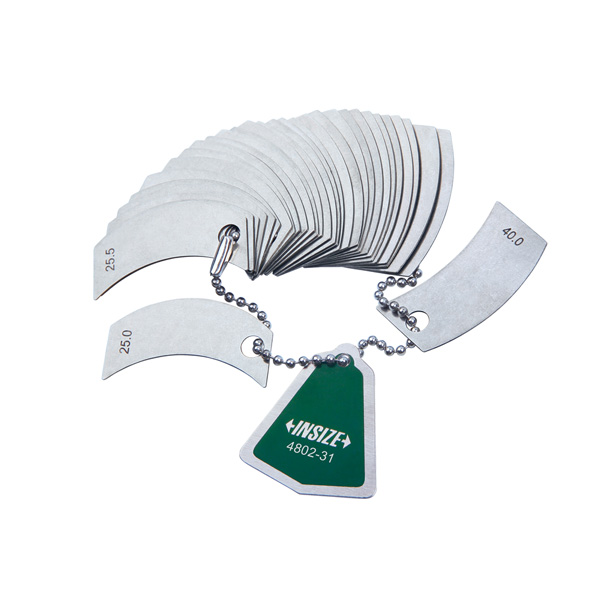

The INSIZE 4802-31 Radius Gage is a precision measuring instrument designed for the accurate verification of radii. This model is constructed from durable stainless steel to ensure longevity and resistance to corrosion in industrial environments.

Key Features & Capabilities

Material: Manufactured from stainless steel.
Design: Features a set of leaves, each clearly marked with its respective radius measurement for quick identification.
Portability: Compact, fan-style assembly secured with a retaining chain for organized storage and ease of use.

Technical Specifications

Parameter	Specification
Model Code	4802-31
Range	25-40 mm
Quantity of Leaves	31
Radius of Leaves Included (mm)	25, 25.5, 26, 26.5, 27, 27.5, 28, 28.5, 29, 29.5, 30, 30.5, 31, 31.5, 32, 32.5, 33, 33.5, 34, 34.5, 35, 35.5, 36, 36.5, 37, 37.5, 38, 38.5, 39, 39.5, 40
