MITUTOYO-SERIES 102-OUTSIDE MICROMETERS

Name: MITUTOYO-SERIES 102-OUTSIDE MICROMETERS
Brand: MITUTOYO
SKU: 102-301

Code:

Heat-insulated frame. Cut-away frame (behind anvil) for measuring in hard-to-reach places. A ratchet stop or a friction thimble for a constant measuring force. Measuring faces: Carbide SPECIFICATIONS Metric Order No. Range Graduation Accuracy Flatness Parallelism Constant-force device 102-301 0 – 25mm 0.01mm ±2µm 0.6µm 2µm Ratchet stop 102-311 0.001mm ±1µm 0.3µm 1µm 102-313 friction thimble

f in

Click to Expand

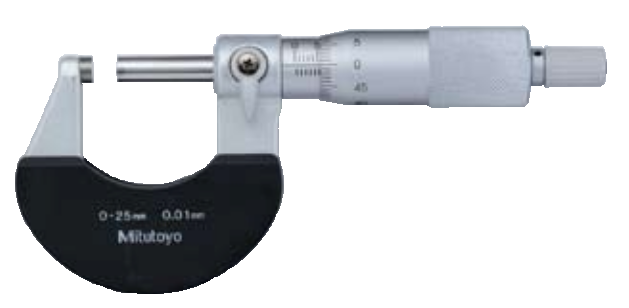

MITUTOYO-SERIES 102-OUTSIDE MICROMETERS

Product Overview

The Mitutoyo-Series 102 Outside Micrometers are precision measuring instruments featuring a heat-insulated frame and a cut-away frame design behind the anvil to facilitate measurements in hard-to-reach places. These micrometers utilize carbide measuring faces and incorporate either a ratchet stop or a friction thimble to ensure a constant measuring force across applications.

Key Features & Capabilities

Heat-Insulated Frame: Minimizes thermal expansion errors caused by hand heat during measurement.
Cut-Away Frame: Features a recessed design behind the anvil for enhanced accessibility in restricted or hard-to-reach locations.
Constant-Force Mechanism: Equipped with either a ratchet stop or a friction thimble to maintain repeatable and consistent measuring force.
Carbide Measuring Faces: Provides high durability and wear resistance on contact points.

Technical Specifications

Metric Individual Models & Sets

Order No.	Range	Graduation	Accuracy	Flatness	Parallelism	Constant-force device
102-301	0 – 25mm	0.01mm	±2µm	0.6µm	2µm	Ratchet stop
102-311	0 – 25mm	0.001mm	±1µm	0.3µm	1µm	Ratchet stop
102-313	0 – 25mm	0.001mm	±1µm	0.3µm	1µm	Friction thimble
102-302	25 – 50mm	0.01mm	±2µm	0.6µm	2µm	Ratchet stop
102-312	25 – 50mm	0.001mm	±1µm	0.3µm	1µm	Ratchet stop
102-303	50 – 75mm	0.01mm	±2µm	0.6µm	2µm	Ratchet stop
102-304	75 – 100mm	0.01mm	±3µm	0.6µm	3µm	Ratchet stop
