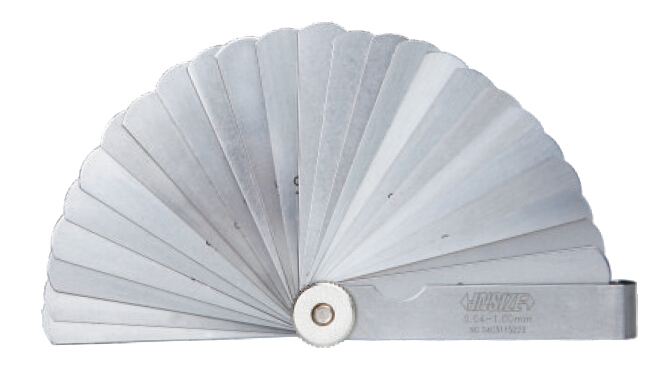

The INSIZE 4601-25 Feeler Gage Set is a high-precision measuring instrument designed for accurate clearance and gap measurement in industrial B2B applications. Manufactured from hardened alloy steel, this professional-grade tool ensures exceptional wear resistance and long-term dimensional stability. It fully complies with the DIN2275 standard, Grade TC1, making it suitable for stringent quality control and engineering environments.
- Premium Material Construction: Fabricated from hardened alloy steel to resist deformation and wear during repeated use.
- Standard Compliance: Meets DIN2275/grade TC1 specifications for verified industrial accuracy.
- High-Precision Accuracy: Calculated using the formula $\pm(3+T/80)\ \mu\text{m}$, where '$T$' represents the individual leaf thickness in micrometers ($\mu\text{m}$).
- Comprehensive Leaf Selection: Features 25 distinct leaves ranging from 0.04 mm to 1.00 mm to accommodate a wide variety of gap measurement requirements.
Included Leaf Thicknesses (mm)
The set includes 25 leaves with the following individual thicknesses:
- 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 0.55, 0.60, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 0.95, 1.00
