SCRIBER FOR HEIGHT GAGES CODE 7150

Name: SCRIBER FOR HEIGHT GAGES CODE 7150
Brand: INSIZE
SKU: 7150-SC1

Code:

Carbide tipped Code For Height Gages Type c1 c2 D E 7150-SC1 1150-300 A 76 25 6 8 7150-SC2 1150-500, 1150-600 A 103 25 10 12 7150-SC3 1150-1000, 1150-1500, 1150-2000 A 110 39 10 15 7150-SC4 1151-300, 1151-450, 1151-600, 1351-300, 1351-450, 1351-600 B 48 15 9 9 7150-SC6 1250-300 A 80 30 9 9 7150-SC7

f in

Click to Expand

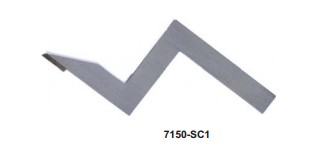

SCRIBER FOR HEIGHT GAGES CODE 7150

Product Overview

The INSIZE Scriber for Height Gages (Code 7150) is a precision replacement scriber designed for compatibility with specific INSIZE height gage models. Featuring a carbide-tipped construction, this scriber ensures high wear resistance and durability for marking and layout operations in dimensional inspection and metrology applications.

Key Features & Capabilities

Carbide Tipped: Hardened carbide tip for enhanced durability, extended service life, and wear resistance.
Model Variety: Available in Type A and Type B configurations with varying dimensions ($c_1$, $c_2$, $D$, and $E$) to match specific height gage requirements.
Direct Compatibility: Engineered for seamless integration with designated INSIZE height gage series.

Technical Specifications

Code	Compatible Height Gages	Type	Length ($c_1$)	Height ($c_2$)	Dimension $D$	Dimension $E$
7150-SC1	1150-300	A	76 mm	25 mm	6 mm	8 mm
7150-SC2	1150-500, 1150-600	A	103 mm	25 mm	10 mm	12 mm
7150-SC3	1150-1000, 1150-1500, 1150-2000	A	110 mm	39 mm	10 mm	15 mm
7150-SC4	1151-300, 1151-450, 1151-600, 1351-300, 1351-450, 1351-600	B	48 mm	15 mm	9 mm	9 mm
7150-SC6	1250-300	A	80 mm	30 mm	9 mm	9 mm
7150-SC7	1250-450, 1250-600	A	80 mm	41 mm	9 mm	9 mm
7150-SC8	1250-1000	A	204 mm	50 mm	10 mm	16 mm
7150-SC9	1253-150, 1253-200, 1154-150	B	55 mm	12.5 mm	6 mm	8 mm
