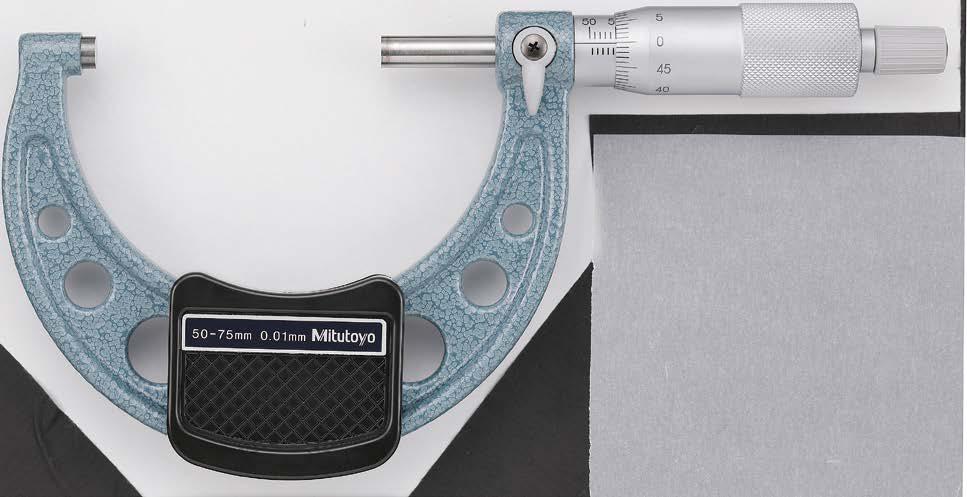

- Baked-enamel-finished frame.
- Measuring faces: Carbide

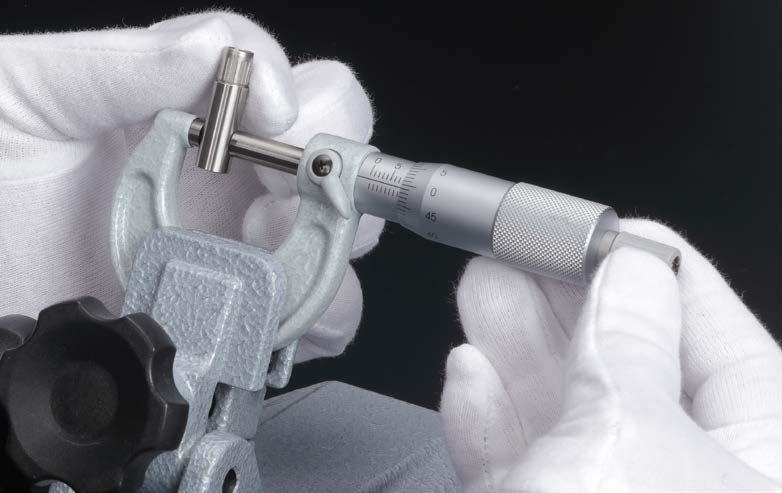

- Equipped with Ratchet Stop for constant measuring force.

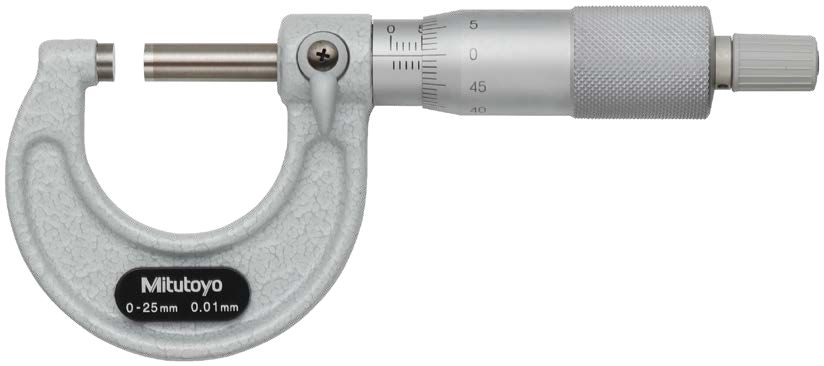

Metric With ratchet stop
| Order No. | Range | Graduation | Accuracy |
|---|---|---|---|
| 103-137 | 0 – 25mm | 0.01mm |
±2µm |
| 103-129 | 0.001mm | ||
| 103-138 | 25 – 50mm | 0.01mm | |
| 103-130 | 0.001mm | ||
| 103-139-10 | 50 – 75mm |
0.01mm |
|
| 103-140-10 | 75 – 100mm |
±3µm |
|
| 103-141-10 | 100 – 125mm | ||
| 103-142-10 | 125 – 150mm | ||
| 103-143-10 | 150 – 175mm |
±4µm |
|
| 103-144-10 | 175 – 200mm | ||
| 103-145-10 | 200 – 225mm | ||
| 103-146-10 | 225 – 250mm |
±5µm |
|
| 103-147-10 | 250 – 275mm | ||
| 103-148-10 | 275 – 300mm | ||
| 103-149 | 300 – 325mm |
±6µm |
|
| 103-150 | 325 – 350mm | ||
| 103-151 | 350 – 375mm | ||
| 103-152 | 375 – 400mm |
±7µm |
|
| 103-153 | 400 – 425mm | ||
| 103-154 | 425 – 450mm | ||
| 103-155 | 450 – 475mm |
±8µm |
|
| 103-156 | 475 – 500mm | ||
| 103-157 | 500 – 525mm | ||
| 103-158 | 525 – 550mm |
±9µm |
|
| 103-159 | 550 – 575mm | ||
| 103-160 | 575 – 600mm | ||
| 103-161 | 600 – 625mm |
±10µm |
|
| 103-162 | 625 – 650mm | ||
| 103-163 | 650 – 675mm | ||
| 103-164 | 675 – 700mm |
±11µm |
|
| 103-165 | 700 – 725mm | ||
| 103-166 | 725 – 750mm | ||
| 103-167 | 750 – 775mm |
±12µm |
|
| 103-168 | 775 – 800mm | ||
| 103-169 | 800 – 825mm | ||
| 103-170 | 825 – 850mm |
±13µm |
|
| 103-171 | 850 – 875mm | ||
| 103-172 | 875 – 900mm | ||
| 103-173 | 900 – 925mm |
±14µm |
|
| 103-174 | 925 – 950mm | ||
| 103-175 | 950 – 975mm | ||
| 103-176 | 975 – 1000mm | ±15µm |
Inch With ratchet stop
| Order No. | Range | Graduation | Accuracy |
|---|---|---|---|
| 103-177 | 0 – 1″ | .001″ |
±.0001″ |
| 103-131 | .0001″ | ||
| 103-178 | 1″ – 2″ | .001″ | |
| 103-132 | .0001″ | ||
| 103-179 | 2″ – 3″ |
.001″ |
|
| 103-180 | 3″ – 4″ |
±.00015″ |
|
| 103-181 | 4″ – 5″ | ||
| 103-182 | 5″ – 6″ | ||
| 103-183 | 6″ – 7″ |
±.0002″ |
|
| 103-184 | 7″ – 8″ | ||
| 103-185 | 8″ – 9″ | ||
| 103-186 | 9″ – 10″ |
±.00025″ |
|
| 103-187 | 10″ – 11″ | ||
| 103-188 | 11″ – 12″ | ||
| 103-189 | 12″ – 13″ |
±.0003″ |
|
| 103-190 | 13″ – 14″ | ||
| 103-191 | 14″ – 15″ | ||
| 103-192 | 15″ – 16″ |
±.00035″ |
|
| 103-193 | 16″ – 17″ | ||
| 103-194 | 17″ – 18″ | ||
| 103-195 | 18″ – 19″ |
±.0004″ |
|
| 103-196 | 19″ – 20″ | ||
| 103-197 | 20″ – 21″ | ||
| 103-198 | 21″ – 22″ |
±.00045″ |
|
| 103-199 | 22″ – 23″ | ||
| 103-200 | 23″ – 24″ | ||
| 103-201 | 24″ – 25″ |
±.0005″ |
|
| 103-202 | 25″ – 26″ | ||
| 103-203 | 26″ – 27″ | ||
| 103-204 | 27″ – 28″ |
±.00055″ |
|
| 103-205 | 28″ – 29″ | ||
| 103-206 | 29″ – 30″ | ||
| 103-207 | 30″ – 31″ |
±.0006″ |
|
| 103-208 | 31″ – 32″ | ||
| 103-209 | 32″ – 33″ | ||
| 103-210 | 33″ – 34″ |
±.00065″ |
|
| 103-211 | 34″ – 35″ | ||
| 103-212 | 35″ – 36″ | ||
| 103-213 | 36″ – 37″ |
±.0007″ |
|
| 103-214 | 37″ – 38″ | ||
| 103-215 | 38″ – 39″ | ||
| 103-216 | 39″ – 40″ | ±.00075″ |
Inch With friction thimble
| Order No. | Range | Graduation | Accuracy |
|---|---|---|---|
| 103-135 | 0 – 1″ | .0001″ | ±.0001″ |
| 103-136 | 1″ – 2″ |

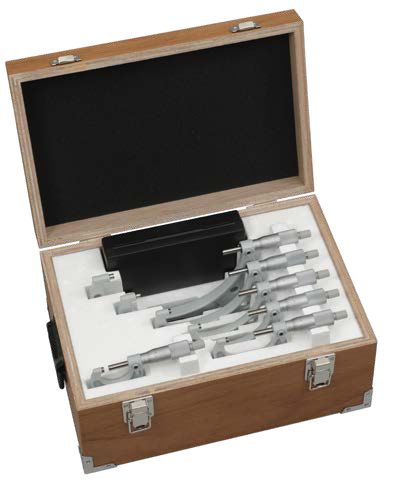

Metric Micrometer set / With ratchet thimble
| Order No. | Range | Models included |
|---|---|---|
| 103-927-10 |
0 – 75mm (3 pcs./set) |
103-137, 103-138, 103-139-10, 2 micrometer standards |
|
103-913-50 |

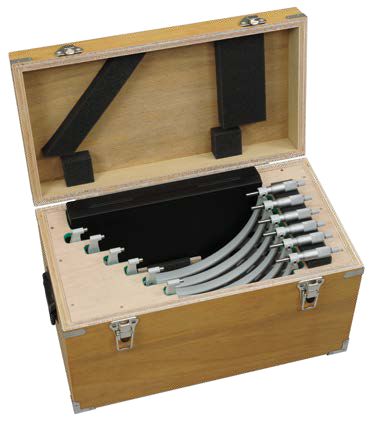

0 – 150mm (6 pcs./set) |
103-137, 103-138, 103-139-10, 103-140-10, 103-141-10, 103-142-10, 5 micrometer standards |
|
103-915-10 |
150 – 300mm (6 pcs./set) |
103-143-10, 103-144-10, 103-145-10, 103-146-10, 103-147-10, 103-148-10, 6 micrometer standards |
| 103-914-50 |

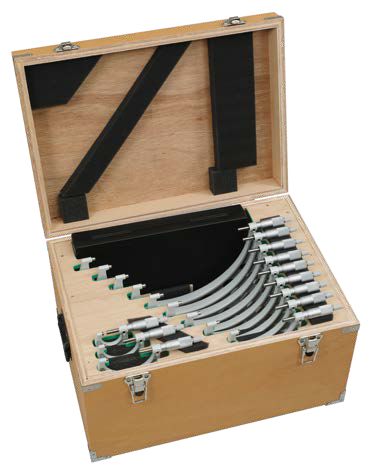

0 – 300mm (12 pcs./set) |
All micrometers of 103-913-50 and 103-915-10 in one set, 11 micrometer standards |
Inch Micrometer set / With ratchet thimble
| Order No. | Range | Models included |
|---|---|---|
| 103-929 | (3 0 – 3″ | 103-177, 103-178, 103-179, 2 micrometer standards |
| 103-930 | (4 0 – 4″ pcs./set) |
103-177, 103-178, 103-179, 103-180, 3 micrometer standards |
| 103-904-10 |
0 – 6″ (6 pcs./set) |
103-177, 103-178, 103-179, 103-180, 103-181, 103-182, 5 micrometer standards |
| 103-906 | 6″ – 12″ (6 pcs./set) |
103-183, 103-184, 103-185, 103-186, 103-187, 103-188, 6 micrometer standards |
| 103-905-10 | 0 – 12″ (12 pcs./set) |
All micrometers of 103-904-10 and 103-906 in one set, 11 micrometer standards |
DIMENSIONS

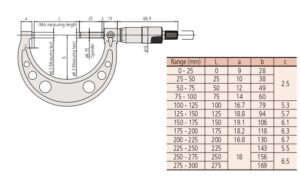

Models up to 75mm measuring range
Models 75mm to 300mm

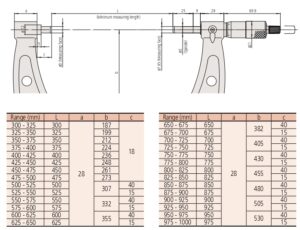

Models over 300mm measuring range
| Range | a | b | c | d |
|---|---|---|---|---|
| 0 – 25mm | 9 | 28 |
2.5 |
30 |
| 25 – 50mm | 10 | 38 | 55 | |
| 50 – 75mm | 12 | 47 | 80 | |
| 75 – 100mm | 14 | 58 | 105 | |
| 100 – 125mm | 16.7 | 77 | 5.3 | 132.8 |
| 125 – 150mm | 18.8 | 92 | 5.7 | 158.2 |
| 150 – 175mm | 19.1 | 104 | 6.1 | 183.6 |
| 175 – 200mm | 18.2 | 115 | 6.3 | 208.8 |
| 200 – 225mm | 16.8 | 128 | 6.7 | 234.2 |
| 225 – 250mm | 18 | 141 | 5.5 | 258 |
| Range | a | b | c | d |
|---|---|---|---|---|
| 250 – 275mm | 18 | 153 | 6.5 | 284 |
| 275 – 300mm | 166 | 309 | ||
| 300 – 325mm |
28 |
187 |
18 |
353 |
| 325 – 350mm | 199 | 378 | ||
| 350 – 375mm | 212 | 403 | ||
| 375 – 400mm | 224 | 428 | ||
| 400 – 425mm | 236 | 453 | ||
| 425 – 450mm | 248 | 478 | ||
| 450 – 475mm | 261 | 503 | ||
| 475 – 500mm | 273 | 528 |
| Range | a | b | c | d |
|---|---|---|---|---|
| 500 – 525mm |
28 |
307 | 40 | 575 |
| 525 – 550mm | 15 | |||
| 550 – 575mm | 332 | 40 | 625 | |
| 575 – 600mm | 15 | |||
| 600 – 625mm | 355 | 40 | 675 | |
| 625 – 650mm | 15 | |||
| 650 – 675mm | 382 | 40 | 725 | |
| 675 – 700mm | 15 | |||
| 700 – 725mm | 405 | 40 | 775 | |
| 725 – 750mm | 15 | |||
| 750 – 775mm | 430 | 40 | 825 | |
| 775 – 800mm | 15 | |||
| 800 – 825mm | 455 | 40 | 875 | |
| 825 – 850mm | 15 | |||
| 850 – 875mm | 480 | 40 | 925 | |
| 875 – 900mm | 15 | |||
| 900 – 925mm | 505 | 40 | 975 | |
| 925 – 950mm | 15 | |||
| 950 – 975mm | 530 | 40 | 1025 | |
| 975 – 1000mm | 15 |
Technical Data
Flatness: 0.6μm/.000024”for models up to 300mm/12” 1μm/.00004” for models over 300mm/12”
Parallelism: (2 + R/100) μm, R = max, range (mm) [.00008+.00004 (R/4)]”, R = max, range (inch)
*fraction rounded down
Standard accessories: Reference bar, 1 pc (except for measuring range 0-25mm (0-1″) models) Spanner (301336), 1 pc (for maximum measuring range up to 300mm (12″)) Spanner (200154), 1 pc (for maximum measuring range 325mm (13″) or over)
