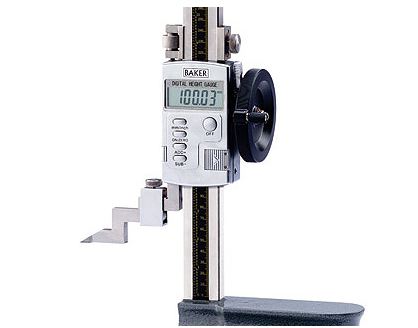

BAKER DIGITAL HEIGHT GAUGE (DH SERIES)

Robustly constructed, stainless steel column with clearly marked scale graduation A clear multifunction digital LCD display runs smoothly on an analogue vertical scale Fine adjustment with lock provided for ease of setting For easy and precise maneuverability, the base has a specially designed thumb grip Digital height gauge with Carbide
TYPE RANGE Reading

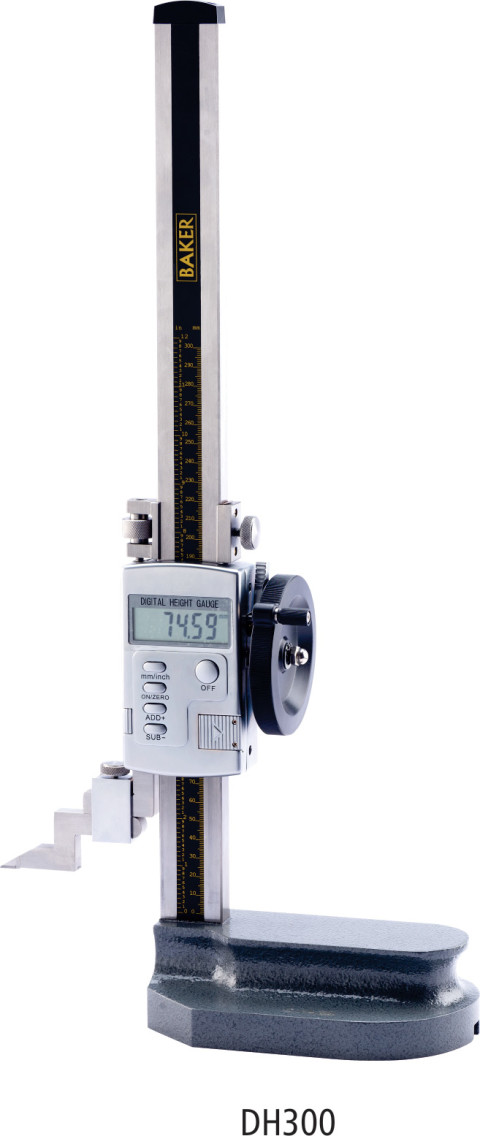

DH300 0 – 300 mm / 0 – 12″ 0.01 mm / 0.0005″
DH600 0 – 600 mm / 0 – 24″ 0.01 mm / 0.0005″
DH1000 0 – 100 mm / 0 – 40″ 0.01 mm / 0.0005″

  • Robustly constructed, stainless steel column with clearly marked scale graduation
  • A clear multifunction digital LCD display runs smoothly on an analogue vertical scale
  • Fine adjustment with lock provided for ease of setting
  • For easy and precise maneuverability, the base has a specially designed thumb grip
  • Carbide tipped scriber
  • Inch / Metric capability
  • Functions consist of power ON/OFF, absolute / incremental mode, mm/in., preset & hold and tolerance setting
  • Powered by easily replaceable silver oxide battery (Type SR44,1.55V)
  • Operating environment:- Temperature 5 to 45 °C, Humidity _<80% RH
  • Each gauge carries a calibration certificate giving actual values
  • Measurement and transfer of heights, scribing and marking of work pieces and other measurements like run out, center distance etc. by using a lever type dial indicator
