INSIZE DIGITAL LEVEL (CODE – ISE-2DT)

Code:

▪Color LCD, touch panel
▪X-Y axis measurement
▪Set the tolerance and the display is shown in different colors

Click to Expand

INSIZE DIGITAL LEVEL (CODE – ISE-2DT)

Product Overview

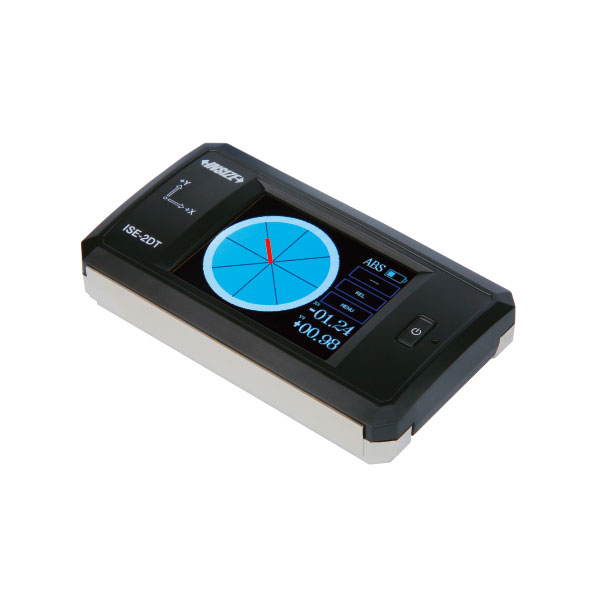

The INSIZE Digital Level (Code: ISE-2DT) is a precision measuring instrument designed for accurate inclination and angle measurements across X-Y axes. Featuring an intuitive color LCD with a touch panel, it offers clear visual feedback based on user-defined tolerances.

Key Features & Capabilities

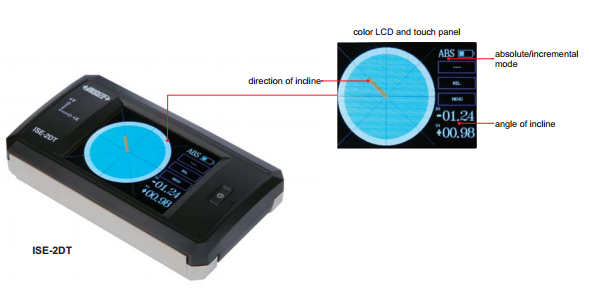

Color LCD with touch panel interface
X-Y axis measurement capability
Customizable tolerance settings with color-coded display alerts (green for within tolerance, red for out of tolerance)
Rechargeable battery power supply
Four threaded mounting holes on the bottom
PC software compatibility (optional) for data transmission to text files
Data output and charging capabilities

Technical Specifications

Parameter	Specification
Measuring Range	±30°
Resolution	0.1°, 0.01°, 0.1 mm/m
Accuracy	±0.03° (range 0~3°)<br>±0.05° (range >3°)
Power Supply	Rechargeable battery
Dimension	115 x 66 x 25 mm
Weight	224 gram
