FRAME LEVEL CODE – 4906

Name: FRAME LEVEL CODE – 4906
Brand: INSIZE
SKU: 4906

Code:

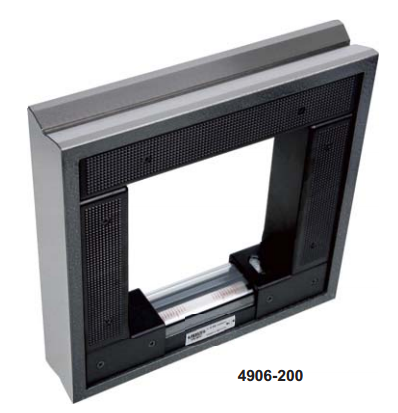

No need to set zero before use Three V-grooves for shafts (shafts dia. 19.3~115.9mm) With longitudinal vial Code Size (LxL) Sensitivity 4906-150 150x150mm 0.02mm/m(=0.001°) 4906-200 200x200mm 0.02mm/m(=0.001°) 4906-300 300x300mm 0.02mm/m(=0.001°) Check the PDF

DOWNLOAD CATALOG

f in

Click to Expand

FRAME LEVEL CODE – 4906

Product Overview

The INSIZE Frame Level (Code 4906) is a precision measuring instrument designed for leveling and angular measurement applications. Featuring a robust frame construction with a longitudinal vial, this instrument is engineered for direct use without requiring zero-setting before operation. Three integrated V-grooves allow for secure positioning on shafts and cylindrical workpieces ranging from 19.3 mm to 115.9 mm in diameter.

Key Features & Capabilities

No need to set zero before use
Three V-grooves for shafts (suitable for shaft diameters from 19.3 mm to 115.9 mm)
Equipped with a longitudinal vial

Technical Specifications

Code	Size (L x L)	Sensitivity
4906-150	150x150 mm	0.02 mm/m (=0.001°)
4906-200	200x200 mm	0.02 mm/m (=0.001°)
4906-300	300x300 mm	0.02 mm/m (=0.001°)
