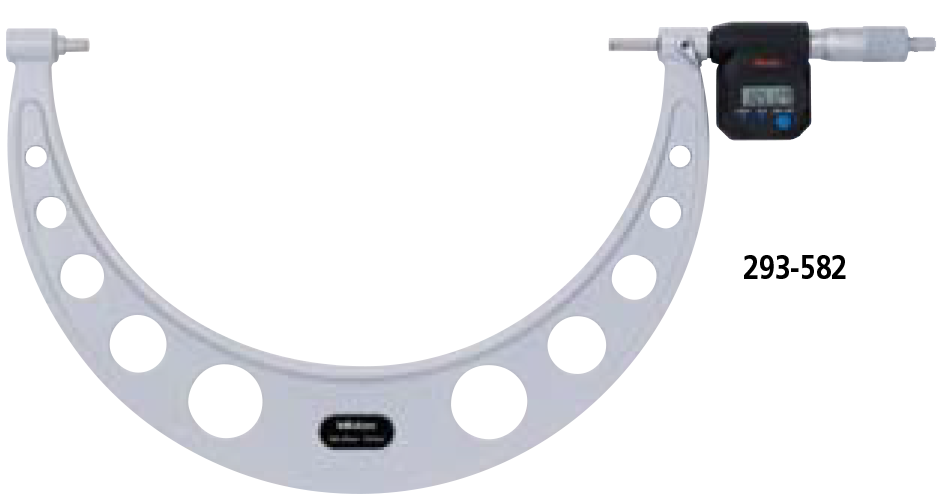

293-582
Models equipped with a Digimatic output port can form part of a statistical process control or networked measurement system. (Refer to page A-3 for details.)
- Constant-force device: ratchet stop
- Interface Input Tools are available that enable the conversion of measurement data to keyboard signals that are then directly input to cells in off-the-shelf spreadsheet software such as Excel.
(Refer to page A-5 for details.) - Measuring faces: Carbide
SPECIFICATIONS
Metric
| Order No. | Range | Accuracy* | Flatness | Parallelism |
|---|---|---|---|---|
| 293-582 | 300 – 325mm |
±6µm |
0.6µm |
5µm |
| 293-583 | 325 – 350mm | |||
| 293-584 | 350 – 375mm | |||
| 293-585 | 375 – 400mm |
±7µm |
6µm |
|
| 293-586 | 400 – 425mm | |||
| 293-587 | 425 – 450mm | |||
| 293-588 | 450 – 475mm | ±8µm | ||
| 293-589 | 475 – 500mm | 7µm |
* Excluding quantizing error
Inch/Metric
| Order No. | Range | Accuracy* | Flatness | Parallelism |
|---|---|---|---|---|
| 293-782 | 12″-13″ |
±.0003″ |
.000024″ |
.0002″ |
| 293-783 | 13″-14″ | |||
| 293-784 | 14″-15″ | |||
| 293-785 | 15″-16″ |
±.00035″ |
.00024″ |
|
| 293-786 | 16″-17″ | |||
| 293-787 | 17″-18″ | |||
| 293-788 | 18″-19″ | ±.0004″ | ||
| 293-789 | 19″-20″ | .00028″ |
* Excluding quantizing error

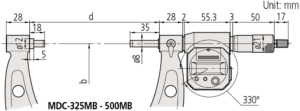

DIMENSIONS
| Range | b | d |
|---|---|---|
| 300 – 325 | 187 | 353 |
| 325 – 350 | 199 | 378 |
| 350 – 375 | 212 | 403 |
| 375 – 400 | 224 | 428 |
| 400 – 425 | 236 | 453 |
| 425 – 450 | 248 | 478 |
| 450 – 475 | 261 | 503 |
| 475 – 500 | 273 | 528 |
SERIES 293 — Digimatic outside micrometers
- Extended battery life of approximately 2.4 years.
- An economical price is achieved through simple design and excluding the data output function.
- One switch operation (Origin Set) for easy use.
- Equipped with Ratchet Stop for constant measuring force.
- Measuring faces: Carbide
SPECIFICATIONS
Metric With ratchet stop / Measuring force: 5 – 10N
| Order No. | Range | Resolution | Accuracy* |
|---|---|---|---|
| 293-821-30 | 0 – 25mm | 0.001mm | ±2µm |
* Excluding quantizing error
Inch/Metric With ratchet stop / Measuring force: 5 – 10N
| Order No. | Range | Resolution | Accuracy* |
|---|---|---|---|
| 293-831-30 | 0 – 1″ | .00005″/0.001mm | ±.0001″ |
* Excluding quantizing error
Inch/Metric With friction thimble / Measuring force: 5 – 10N
| Order No. | Range | Resolution | Accuracy* |
|---|---|---|---|
| 293-832-30 | 0 – 1″ | .00005″/0.001mm | ±.0001″ |
* Excluding quantizing error
Technical Data
Resolution: 0.001mm or .0001”/0.001mm
Measuring force: 10 to 15N
SR44 (2 pc), 938882, for initial operational checks
(standard accessory)
Battery life: Approx. 1.8 years under normal use
Length standard: Electromagnetic rotary sensor
Standard accessories: Reference bar, 1 pc
Spanner (200154), 1 pc
Functions
Origin point setting (ABS measurement system): Resets the ABS origin at the current spindle position to
the minimum value of the measuring range and switches to ABS mode.
Zero-setting (INC measurement system): A brief press on the ZERO/ABS button sets display to zero at the current spindle position and switches to the incremental (INC) measuring mode. A longer press resets to the ABS measuring mode.
Hold: Pressing the HOLD button freezes the current value in the display. This function is useful for preserving a
measurement in situations of poor visibility where the instrument must be moved away from the workpiece
before the reading can be recorded.
Function lock: This function allows the PRESET (origin point setting) function and the ZERO (zero-setting) function to be locked to prevent these points being reset accidentally.
Auto power ON/OFF:
The reading on the LCD disappears after this instrument is idle for about 20 minutes, but the reading and
measurement mode are retained. Turning the spindle causes the reading to reappear.
Data output:
Models equipped with this function have an output port for transferring measurement data to a Statistical Process
Control (SPC) system.
Error alarm:
In case of an overflow on the LCD or a computing error, an error message appears on the LCD, and the measuring
function stops. This prevents an instrument from giving an erroneous reading. Also, when the battery voltage drops to a certain level, the low-battery-voltage alarm annunciator appears well before the micrometer becomes unusable.
Optional accessories
Connecting Cables
Recommended cables:
L-Type (does not interfere with operating the thimble.)
1m: 04AZB512
2m: 04AZB513
Straight type (may interfere with operating the thimble.)
1m: 959149
2m: 959150
Refer to page B-68 for detailed information about recommended cables.
Technical Data
SR44 (1 pc), 938882, for initial operational checks (standard accessory)
Length standard: Electromagnetic rotary sensor
Standard accessories: Reference bar, 1 pc Spanner (301336), 1 pc
Functions
Zero-setting:
A brief press on the ORIGIN button sets display to zero at the current spindle position (zero-setting), which allows
easy comparison measurement.
Auto power ON/OFF:
The reading on the LCD disappears after this instrument is idle for about 20 minutes, but the reading is retained. Turning the spindle causes the reading on the LCD to reappear.
Error alarm:
In case of an overflow on the LCD or a computing error, an error message appears on the LCD, and the measuring
function stops. This prevents an instrument from giving an erroneous reading. Also, when the battery voltage drops to a certain level, the low-battery-voltage alarm annunciator appears well before the micrometer becomes unusable.
