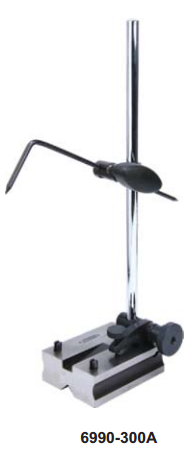

INSIZE HEIGHT SCRIBER (CODE – 6990-300A)

Code:

▪Grooved bottom for cylinder
▪Two pins to be set against the edge of surface plate

Click to Expand

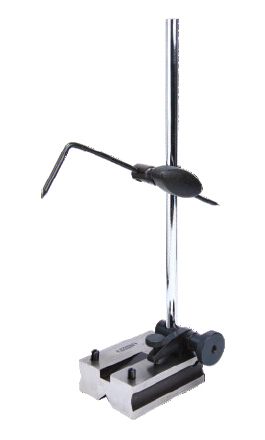

INSIZE HEIGHT SCRIBER (CODE – 6990-300A)

Product Overview

The INSIZE Height Scriber (Model 6990-300A) is a precision measuring and marking tool designed for use on surface plates. It features a specialized base design to facilitate accurate scribing and height measurement tasks in industrial metrology environments.

Key Features & Capabilities

Cylindrical Workpiece Support: The base is engineered with a grooved bottom, allowing for stable positioning when working with cylindrical components.
Surface Plate Alignment: Equipped with two integrated pins that can be set against the edge of a surface plate to ensure consistent alignment and registration.
Fine Adjustment: Includes a fine adjustment mechanism to allow for precise positioning of the scriber tip.

Technical Specifications

Parameter	Specification
Model Code	6990-300A
Total Height	300 mm
Scriber Height (Max)	200 mm
Base Dimensions	65 mm (W) x 84 mm (D)
Base Height	27 mm
Column Diameter	Ø10 mm
Unit of Measurement	mm
