BAKER GAUGES MICROMETER

Product Overview

The Baker Gauges Mechanical External Micrometer is a high-precision dimensional measuring instrument engineered for robust workshop and industrial environments. Available in a wide range of spans up to 1000 mm (or 0-8 inches), this series features durable carbide-tipped measuring faces, a stainless steel spindle for corrosion resistance, and an integrated ratchet thimble for consistent, repeatable measuring force.

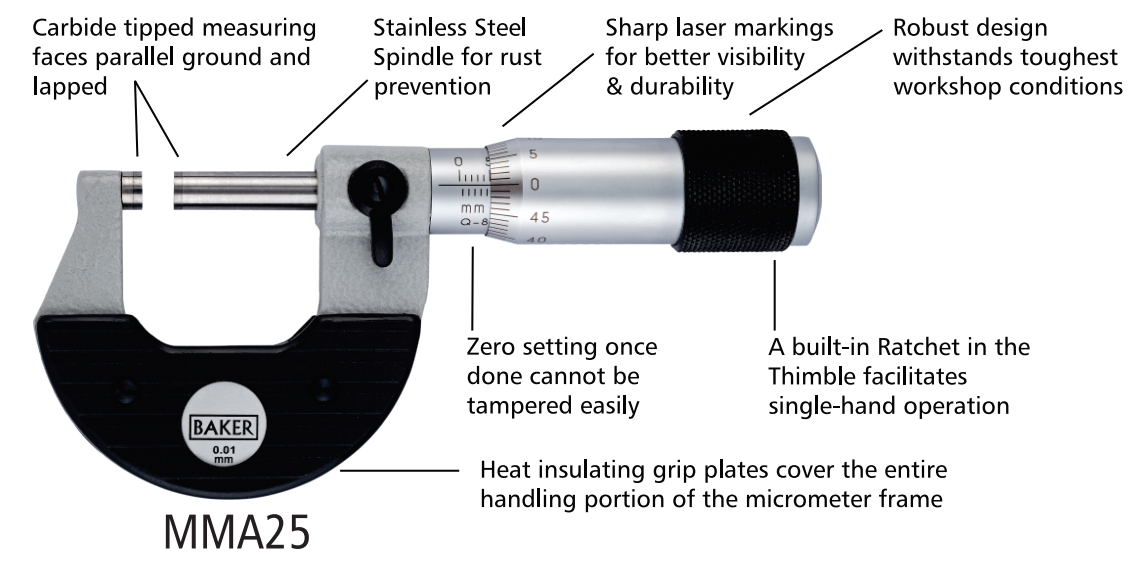

Key Features & Capabilities

Robust Construction: Designed to withstand the toughest workshop conditions, featuring heat-insulating grip plates covering the entire handling portion of the frame (on standard 0-200 mm models).
Precision Measuring Faces: Equipped with carbide-tipped, precision ground, and micro-lapped measuring faces for extended wear resistance and accuracy.
Rust Prevention: Spindle manufactured from stainless steel to prevent rust.
In-Built Ratchet: An integrated ratchet in the thimble facilitates single-hand operation and consistent measuring force.
Tamper-Resistant Zero Setting: Once zero setting is completed, it cannot be easily tampered with.
Clear Readability: Sharp laser markings on the sleeve and thimble provide superior visibility and durability with a dull chrome plated finish.
Standards Compliance: Conforms to IS, DIN, ANSI, and JIS specifications.

Technical Specifications

Set of 6 Micrometers (0-150 mm / 0-6") & Individual Ranges

Measuring Range (mm)	Reading (mm)	Type	A (mm)	B (mm)	C (mm)
0-25	0.01 / 0.001	MMC25 / MMC25-1	7.1	32.5	25.5
25-50	0.01 / 0.001	MMC50 / MMC50-1	7.1	57.5	30.5
50-75	0.01 / 0.001	MMC75 / MMC75-1	8	83	45
75-100	0.01 / 0.001	MMC100 / MMC100-1	8	108	58
100-125	0.01 / 0.001	MMC125 / MMC125-1	8	133	67.5
125-150	0.01 / 0.001	MMC150 / MMC150-1	8	158	82
150-175	0.01 / 0.001	MMC175	8	183	93
175-200	0.01 / 0.001	MMC200	8	208	108

Set of 4 Micrometers (0-100 mm / 0-4") - Inch Series

Measuring Range (inch)	Reading (inch)	Type	A (mm)	B (mm)	C (mm)
0-1	0.001 / 0.0001	INC1 / INC1-1	7.1	32.5	25.5
1-2	0.001 / 0.0001	INC2 / INC2-1	7.1	57.5	30.5
2-3	0.001 / 0.0001	INC3 / INC3-1	8	83	45
3-4	0.001 / 0.0001	INC4 / INC4-1	8	108	58
4-5	0.001 / 0.0001	INC5 / INC5-1	8	133	67.5
5-6	0.001 / 0.0001	INC6 / INC6-1	8	158	82
6-7	0.001 / 0.0001	INC7	8	183	93
7-8	0.001 / 0.0001	INC8	8	208	108

External Micrometer with Interchangeable Anvils

Measuring Range (mm)	Reading (mm)	Type	A (mm)	B (mm)	Measuring Range (inch)	Reading (inch)	Type	Number of Setting Standards	Number of Interchangeable Anvils	Weight (grams)
0-100	0.01 / 0.001	MMI0-100 / MMI0-100-1	133	70	0-4	0.001 / 0.0001	INI0-4 / INI0-4-1	3	4	600
0-150	0.01 / 0.001	MMI0-150 / MMI0-150-1	183	95	0-6	0.001 / 0.0001	INI0-6 / INI0-6-1	5	6	850
150-300	0.01 / 0.001	MMI150-300 / MMI150-300-1	337	175	6-12	0.001 / 0.0001	INI6-12 / INI6-12-1	6	6	1700
200-300	0.01 / 0.001	MMI200-300 / MMI200-300-1	337	175	8-12	0.001 / 0.0001	INI8-12 / INI8-12-1	4	4	1700
*300-400	0.01	MMI300-400	437	225	12-16	0.001	INI12-16	4	4	2500
*400-500	0.01	MMI400-500	537	275	16-20	0.001	INI16-20	4	4	3000

(Note: External Micrometers above Range 300 mm & 12 Inch are supplied without insulation grip plates. Setting standards up to 300 mm & 12 inch feature Both Ends Flat Face; above 300 mm & 12 inch feature Both Ends Spherical).
