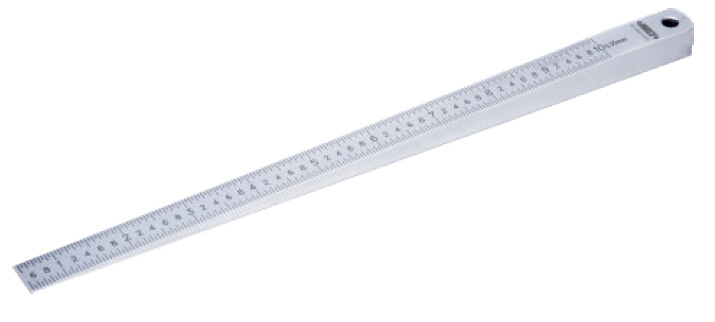

TAPER GAGE CODE – 4630

  • For quick measurement of gap width
  • Stain chrome plated reading surface
  • Made of stainless steel
4630 4630_01 4630_02



Code Range Graduation Accuracy L a b
4630-3 0.4 – 6mm 0.05mm ±0.04mm  164  12.5  6.5
4630-1 0.5 – 10mm 0.05mm ±0.07mm 220 10 10.5
4630-2 0.5 – 15mm 0.1mm ±0.08mm 184  12.5 16.5

Check the PDF



TAPER GAGE CODE – 4833

  • Measure opening, slot width, hole diameter, etc.
  • Diameter correction table on the back (only for 4833-1, 4833-2)
  • Made of stainless steel
4833 4833_01 4833_02



Code Range Graduation Accuracy L W
4833-1 0.8 – 15mm 0.1mm ±0.1mm 146 17
4833-2 15 – 30mm 0.1mm ±0.1mm 159 30.4
4833-3 30 – 45mm 0.1mm ±0.1mm 166 45.4
4833-4 45 – 60mm 0.1mm ±0.1mm 170 60.5

Check the PDF



TAPER GAGE SET CODE – 4837

  • Include 4pcs (1-8mm, 8-15mm, 15-22mm, 22-29mm)
  • Measure opening, slot width, hole diameter, etc.
  • Diameter correction table on the back
  • Made of stainless steel
4837 4837_01 4837_02



Code Range Graduation Accuracy
4837-1 1 – 29mm 0.05mm ±0.05mm

Check the PDF
