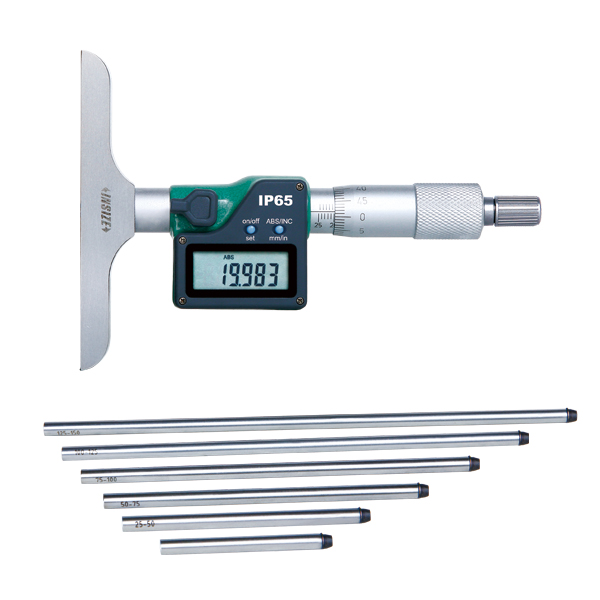

The INSIZE Digital Depth Micrometer (Code – 3540 series) is a precision measuring instrument designed for accurate depth measurements. Featuring an IP65 dust and waterproof rating, it is equipped with a digital display, interchangeable rods with flat ends, and a ratchet stop for consistent measuring force. Available in multiple measuring ranges from 0-25mm up to 0-300mm, with standard and built-in wireless data transmission options.
- Resolution: 0.001mm / 0.00005"
- Micrometer Head Accuracy: ±3µm
- Rod Accuracy: ±(2+L/75)µm, where L is the measuring range in mm
- Button Functions: On/Off, Set, mm/inch, Data transmit
- Protection Rating: IP65 dust and waterproof
- Data Output: Built-in data output capability (optional data output cable code 7315-31 or 7302-31 required for non-wireless models; receiver code 7315-2/3/6/7/8/9 needed for wireless models)
- Power Management: Automatic power off; powered by a CR2032 battery (rechargeable lithium battery for built-in wireless models)

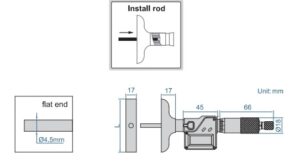

- Design: Rods with flat end and ratchet stop
Model Matrix & Ordering Codes
